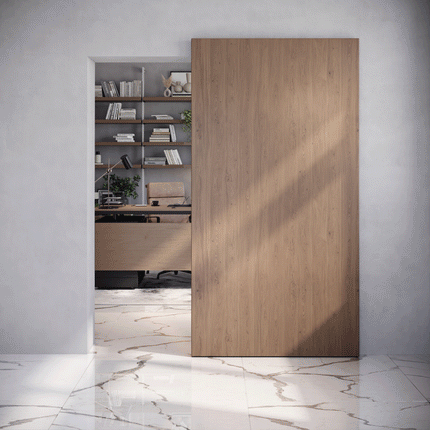

Wall system kit for mounting one complete wooden door to a wall. This system is widely used to separate areas in your rooms where space is limited for a conventional door.

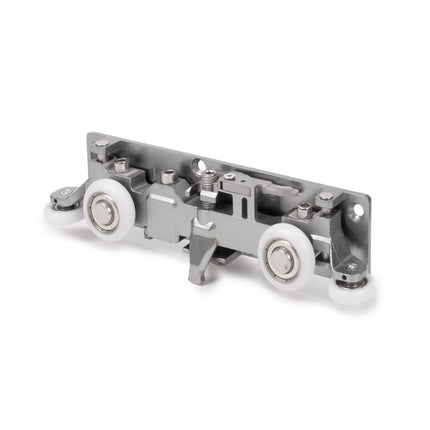

The kit includes everything needed for assembly, including lower runners, a guide, and an upper carriage for smooth sliding. The door panel is not included.
It has a large load capacity of up to 80 kg and a two-way soft-close system, which works in both directions when opening and closing . It also has a small lever that acts as an anti-derailment system to prevent the door from accidentally falling off.

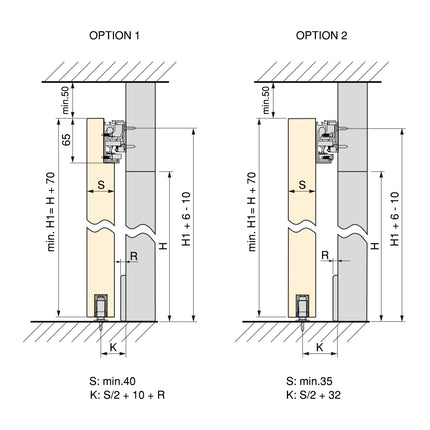

The system can be mounted in two different ways: surface-mounted or flush-mounted to the door if you want to get as close to the wall as possible. The minimum door thickness required for installation is 35 or 40 mm, depending on the mounting option chosen.

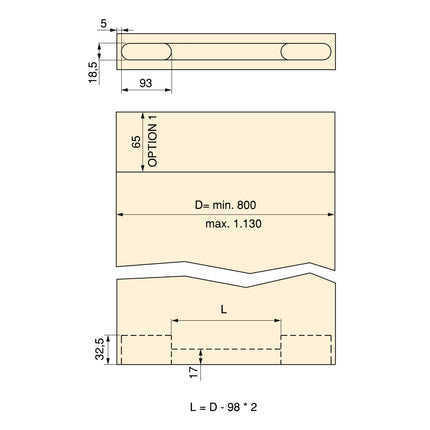

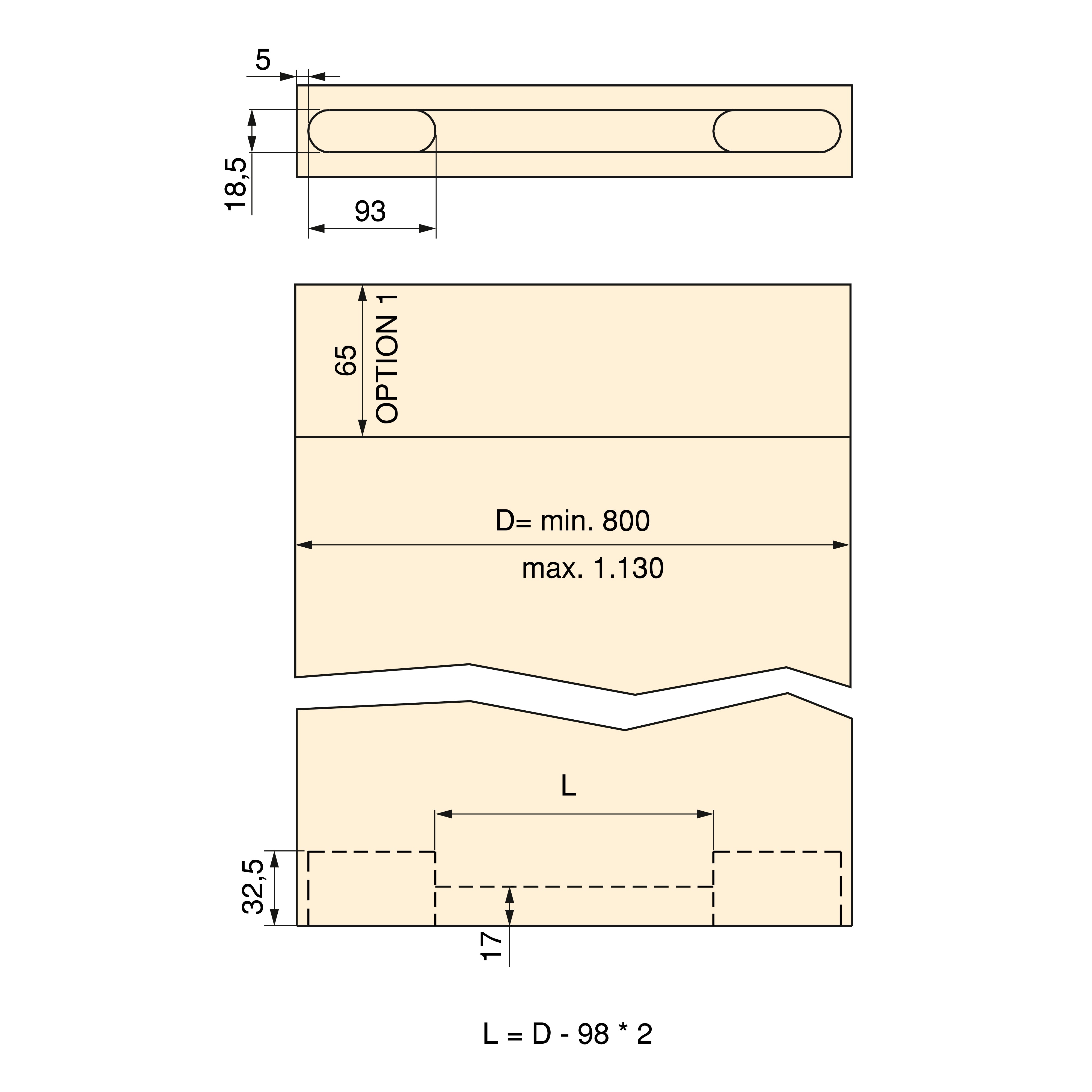

The door requires lower machining to accommodate the runners and the rail for the guide. It has height adjustment up to 10 mm and door tilt adjustment.

• Sliding system for a wooden hanging door for wall installation.
• With a load capacity of up to 80 kg. The minimum door thickness required for installation is 35 or 40 mm, depending on the installation option chosen.
• It features soft-closing in both directions and an anti-derailment system to prevent the door from accidentally coming off.
• The system features height adjustment of up to 10 mm and door tilt adjustment. The top rail is 1.13 m long.
• The kit includes everything needed to assemble a door (except the board).

FAQs - Frequently Asked Questions:

What minimum door thickness should I use to install the Wall system?

How far from the wall is the door in the Wall system?

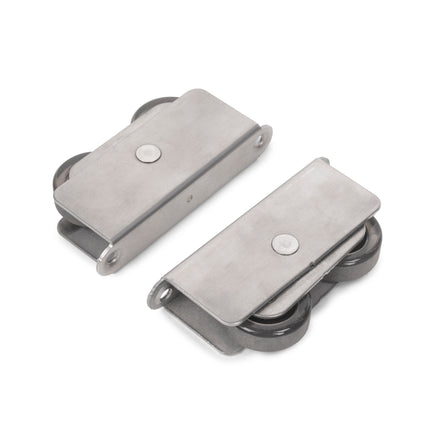

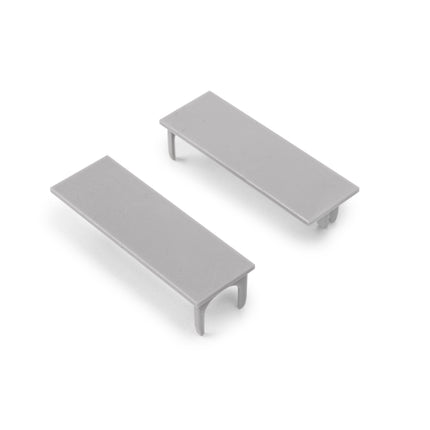

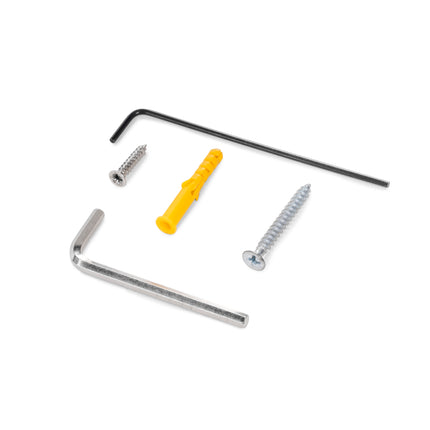

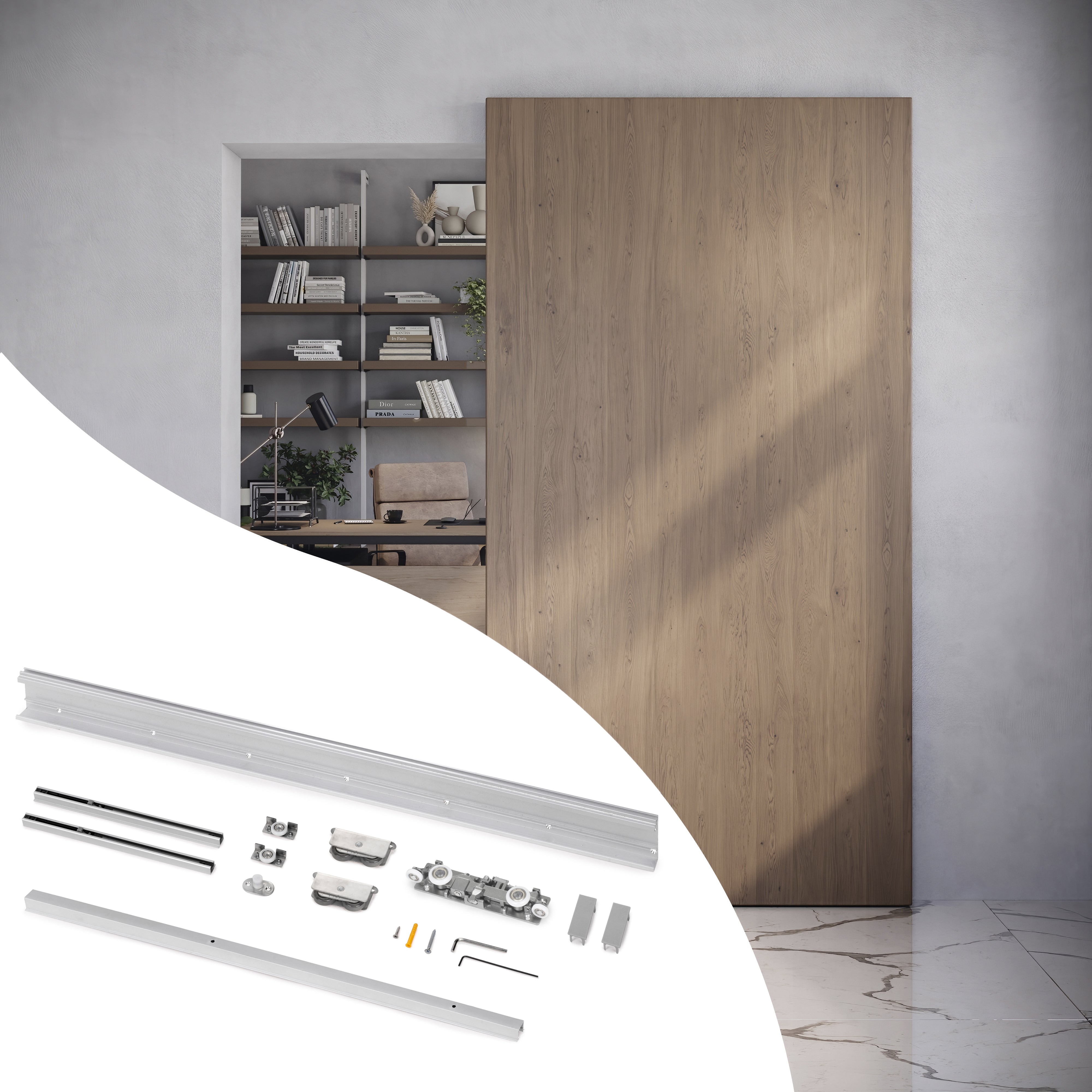

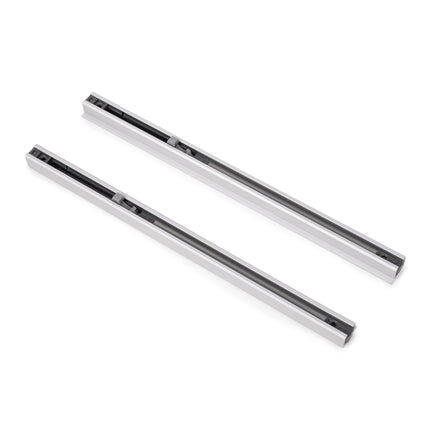

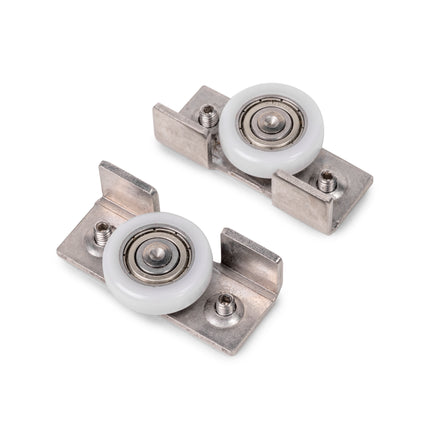

1 bottom track, 1 top track, runners, upper carriage, guide, mounting screws, hex keys for adjustment, soft-closing mechanism
