Emuca Hardware kit for 2 sliding doors and soft closing wardrobe Placard 90, Vall profile, 19mm thick, boards not included, Matt anodized

Description

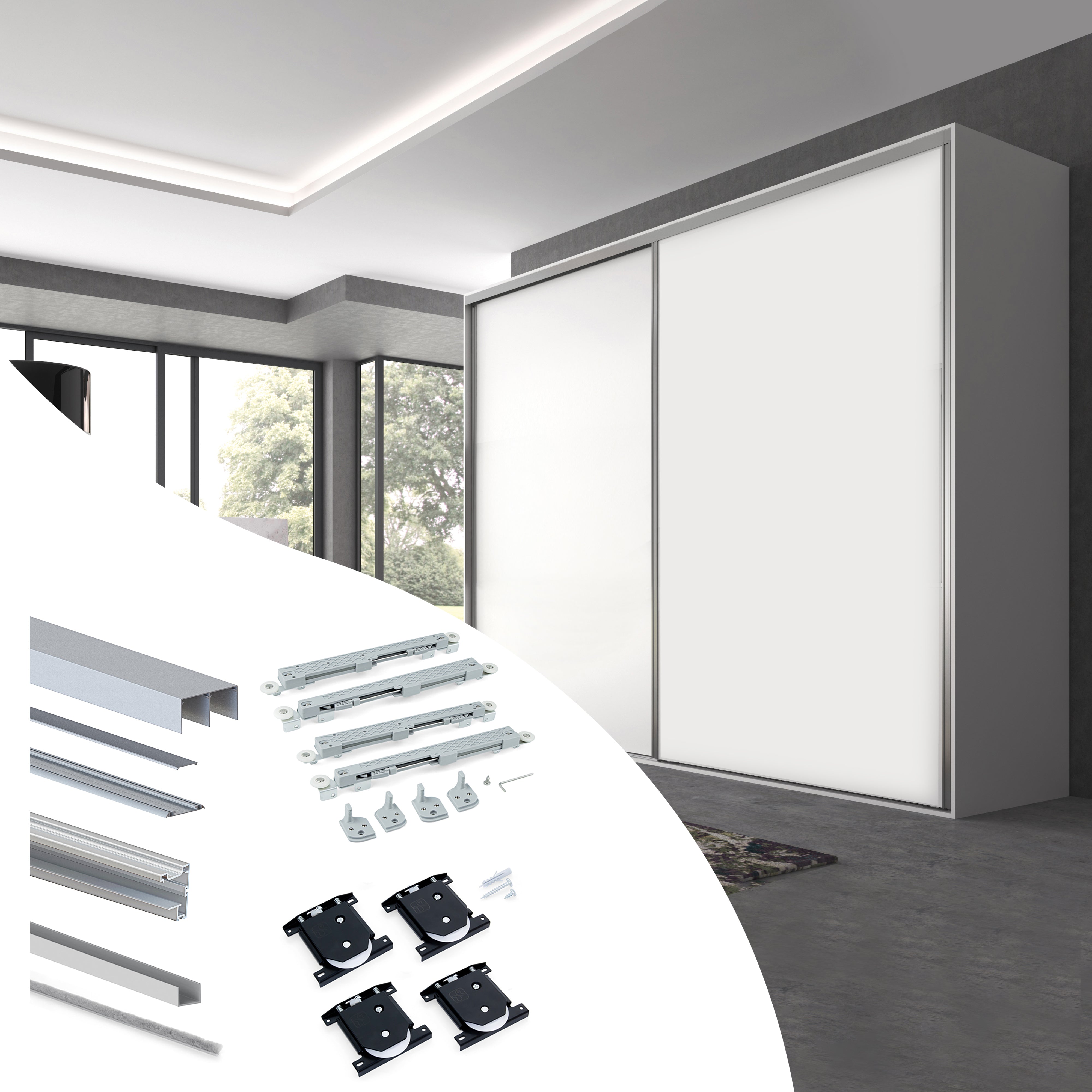

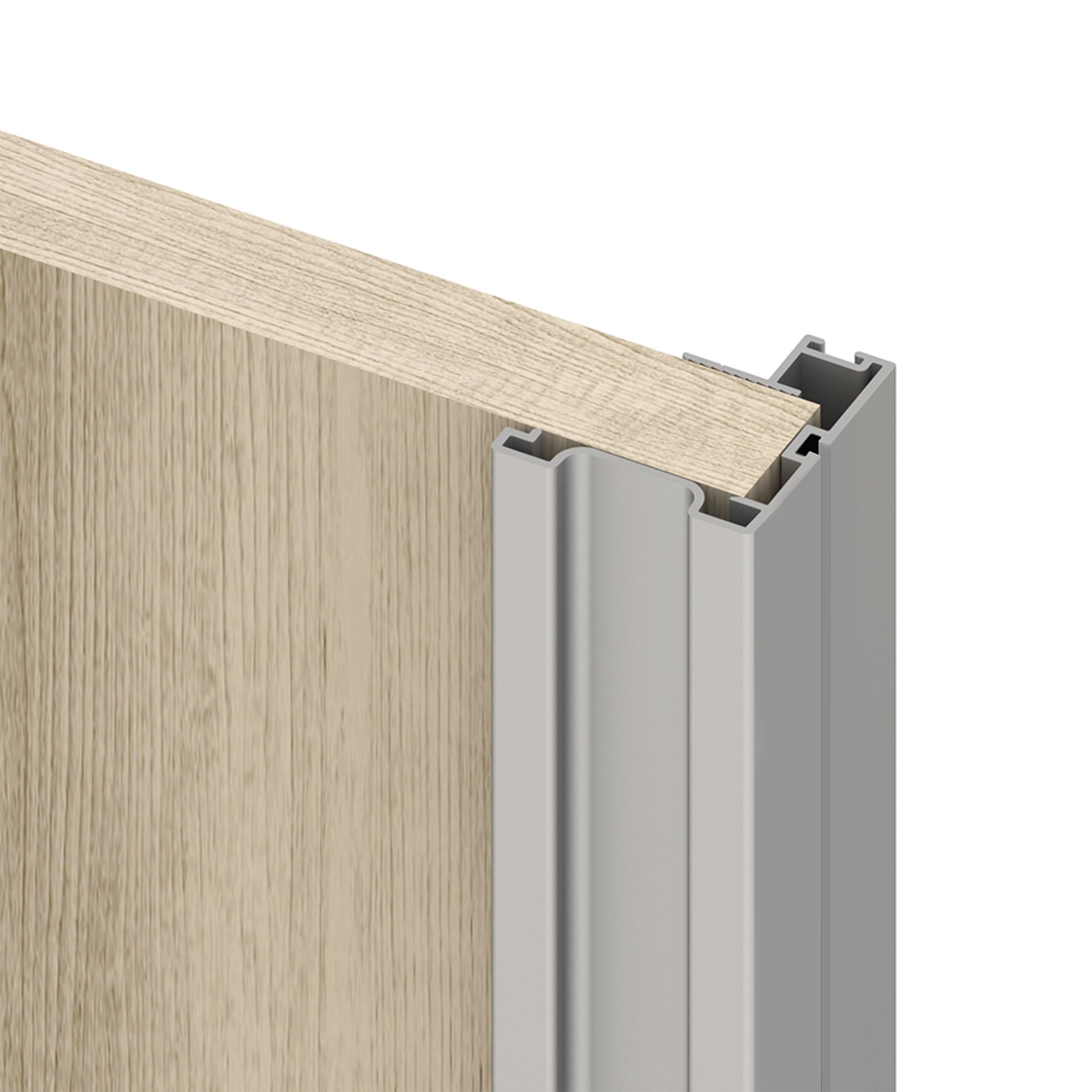

Placard 90 wardrobe kit with two sliding doors includes all the hardware and profiles necessary for assembly and installation , except for the panels. This system of hardware and profiles allows you to create your own wardrobe or dressing room with two bottom-mounted sliding doors that glide smoothly and quietly. The Placard sliding system features lower carriages with steel ball bearings, door height adjustment of ± 5 mm, and a spring locking mechanism that facilitates door installation. It includes an anti-derailment system using a spring in the lower carriage and an adjustable anti-spring stop on the upper runner. It also incorporates a braking device for smooth opening and closing of the doors, with a maximum weight of 30 kg per door. This system has greater retention power thanks to its hydraulic piston, achieving a progressive and precise closing. The doors are composed of a U-shaped crossbar profile and Vall handle profiles made of matte anodized aluminum , designed for doors with a thickness of 19 mm.

  • Sliding system for creating a wardrobe with two bottom-running sliding doors.
  • Boards are not included.
  • Composed of carriages with steel ball bearings.
  • The lower carriage has height adjustment ± 5 mm from the door.

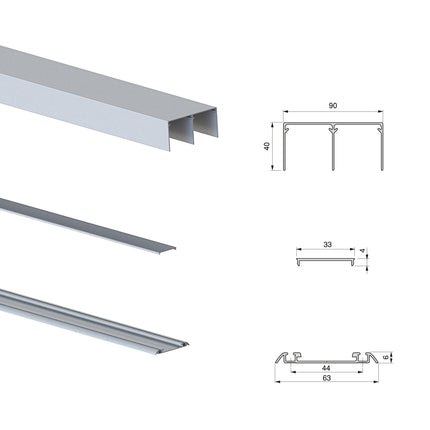

  • The top and bottom rails are supplied in 2350mm lengths so they can be cut to the required size.

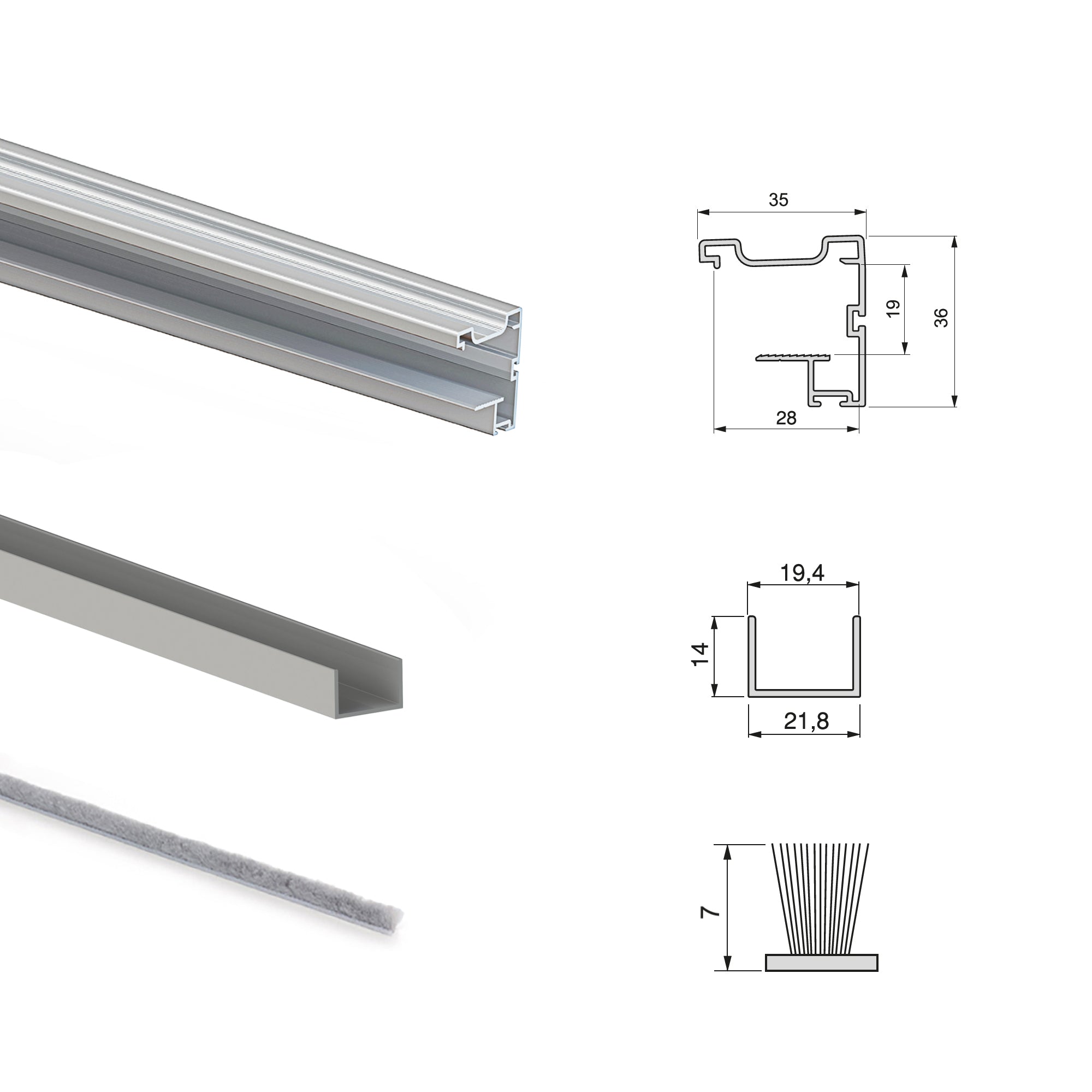

  • The handle profiles are supplied in a measurement of 2350mm so they can be cut to the desired size.
  • It includes an anti-derailment system using a spring on the lower carriage and an adjustable anti-jump stop on the upper skate.
  • It has lower carriage spring locking mechanisms that facilitate door installation.
  • It includes a brake device for smooth opening and closing of the doors.
  • The device has greater holding power thanks to its hydraulic piston, which achieves a progressive and precise closure.
  • The system supports a maximum weight of 30 kg per door.

Product form

SKU: 6030962
Barcode: 8432393286860

Out of stock, 1-3 semanas  Entrega 48–72 h laborables (Península). Consultar condiciones de envío.

€178,32  €170,68 Incl. VAT

    • Transacción segura & regulada

      stripe

    Envío y devoluciones
    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones gratuitas en 30 días por correo (ES/PT). Reembolso íntegro tras la recepción y comprobación.
    • Reemplazo o reembolso sin coste adicional en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.
    • Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si detectas que la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Compras por volumen (B2B)

    Si necesitas grandes cantidades o compras como empresa, taller o profesional, podemos estudiar precios personalizados según volumen y condiciones. Emitimos factura y ofrecemos soporte para compras recurrentes.

    Para pedidos de volumen, consúltanos sin compromiso:

    📥 Documentación técnica y cumplimiento

    Ficha técnica
    Especificaciones del producto
    Peso 9,97 kg

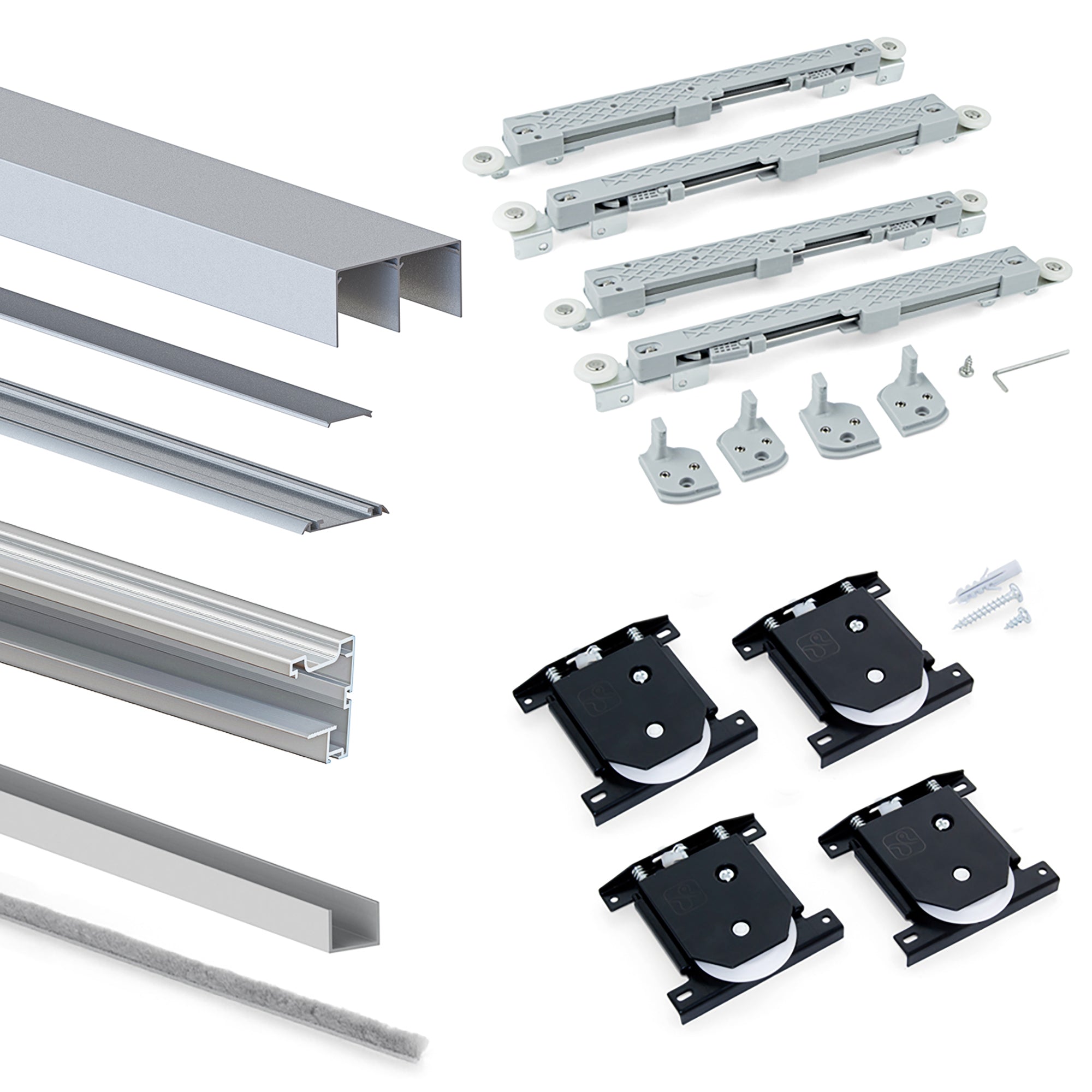

    Componentes incluidos 1 set of fittings for two doors, 1 set of soft-closing devices, 1 upper rail of 2.35m, 1 lower rail of 2.35m, 1 lower rail cover of 2.35m, 4 handle profiles of 2.35m, 1 U-shaped crossbar profile of 2.35m

    Guía de Buy Emuca items

    Description

    Placard 90 wardrobe kit with two sliding doors includes all the hardware and profiles necessary for assembly and installation , except for the panels. This system of hardware and profiles allows you to create your own wardrobe or dressing room with two bottom-mounted sliding doors that glide smoothly and quietly. The Placard sliding system features lower carriages with steel ball bearings, door height adjustment of ± 5 mm, and a spring locking mechanism that facilitates door installation. It includes an anti-derailment system using a spring in the lower carriage and an adjustable anti-spring stop on the upper runner. It also incorporates a braking device for smooth opening and closing of the doors, with a maximum weight of 30 kg per door. This system has greater retention power thanks to its hydraulic piston, achieving a progressive and precise closing. The doors are composed of a U-shaped crossbar profile and Vall handle profiles made of matte anodized aluminum , designed for doors with a thickness of 19 mm.

    • Sliding system for creating a wardrobe with two bottom-running sliding doors.
    • Boards are not included.
    • Composed of carriages with steel ball bearings.
    • The lower carriage has height adjustment ± 5 mm from the door.
    • The top and bottom rails are supplied in 2350mm lengths so they can be cut to the required size.
    • The handle profiles are supplied in a measurement of 2350mm so they can be cut to the desired size.
    • It includes an anti-derailment system using a spring on the lower carriage and an adjustable anti-jump stop on the upper skate.
    • It has lower carriage spring locking mechanisms that facilitate door installation.
    • It includes a brake device for smooth opening and closing of the doors.
    • The device has greater holding power thanks to its hydraulic piston, which achieves a progressive and precise closure.
    • The system supports a maximum weight of 30 kg per door.
