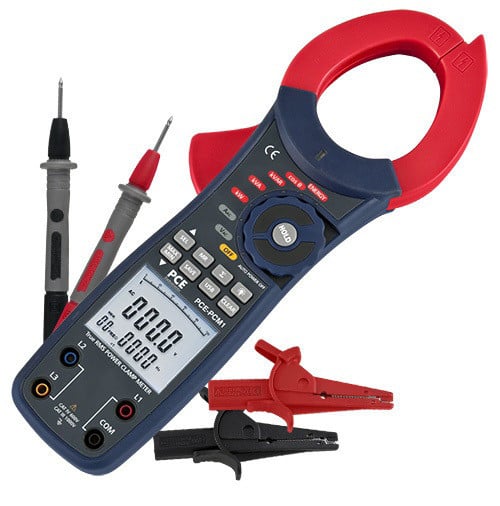

PCE-PCM 1 Wattmeter

Product form

SKU: PCE-PCM 1
Barcode: 4250348707710

Delivery 48–72h

€242,58 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoWattmeter
    Peso 0,495 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Power Meter with Internal Memory, USB Port and Software / Power Measurement for 3 Phases / Energy Meter / TRMS

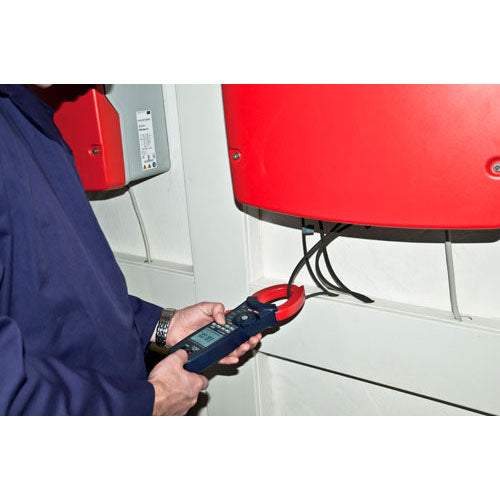

    The power meter is a multi-purpose meter for determining absorbed power as well as energy consumption. In addition to measuring AC current and voltage, this power meter can determine the actual absorbed power in single-phase or three-phase networks, as well as energy consumption (kWh) in single-phase networks. The phase angle and power factor are also displayed on the large backlit screen. This power meter thus allows for a quick and simple assessment of the absorbed power and energy consumption of machines and installations. The compact dimensions and robust housing allow for mobile use by technicians or engineers on-site. The power meter's internal memory can store individual values that can later be retrieved for analysis. It also integrates a USB port for real-time transmission of current values to the PC, where they are presented as a table or graph.
    - Power Measurement:
       Active power (kW)
       Apparent power (kVA)
       Reactive power (kVAR)
       Power factor (cos φ)
       Phase angle
       Active energy counter (kWh)
    - Automatic range selection
    - Value memory
    - Voltage (TRMS)
    - Current (TRMS)
    - Frequency
    - Data logger for 99 values displayable on screen
    - Minimum, maximum and Data Hold values
    Voltage (AC/TRMS, 50 ... 200 Hz) 100 / 400 / 750 V; ±(1.2 % + 5 digits)
    Current (AC/TRMS, 50 ... 200 Hz) 40 / 100 / 400 / 1000 A / ± (2.0 % + 5 digits)
    Active power measurement 4 ... 750 kW, ± (3.0 % + 5 digits)
    Apparent power measurement 4 ... 750 kVA, ± (3.0 % + 5 digits)
    Reactive power measurement 4 ... 750 kVAr, ± (3.0 % + 5 digits)
    Active energy (KWh counter) 1 ... 9999 kW, ± (3.0 % + 2 digits)
    Power factor (cos φ)
    at > 10 A and >45 V
    0.3 ... 1 inductive and capacitive /
    ± (0.02 % + 2 digits)
    Phase angle 0 ... 90º, ± 2.0º
    Frequency 50 ... 200 Hz; ± (0.5 % + 5 digits)
    Internal memory 99 measurement values
    Display 9999 values with bar graph and backlight
    Power supply 9 V battery
    Dimensions (width x depth x height) 105 x 47 x 294 mm
    Weight 495 g
    Overvoltage category CAT IV 600 V / CAT III 1000 V
    1 x PCE-PCM1 Power Meter
    4 x Test leads
    4 x Alligator clips
    2 x Test clamps
    1 x USB interface cable
    1 x PC Software
    1 x 9 V battery
    1 x Carrying bag
    1 x User manual
