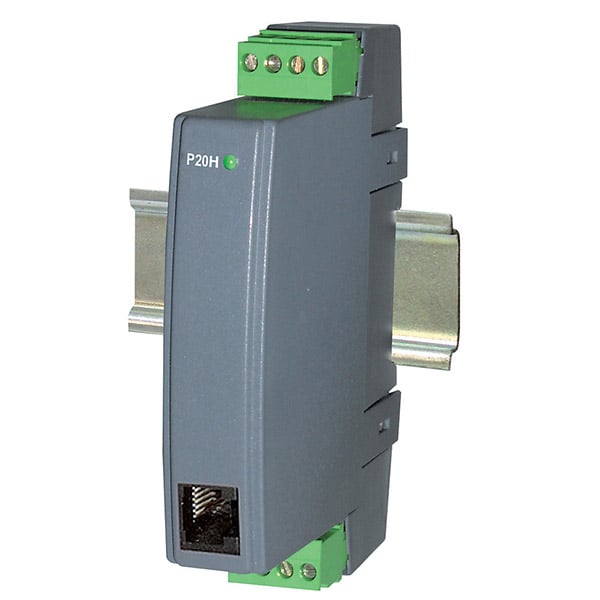

PCE-P20H Voltage Transducer

Product form

SKU: PCE-P20H-111A0E0

Delivery 48–72h

€206,17 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoVoltage transducer
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    PCE-P20H DC Voltage Transducer
    The PCE-P20H transducer measures voltage up to 400 V DC and converts it into a standardized signal. The PCE-P20H transducer can measure, depending on the version, up to 100 V DC, 250 V DC, or 400 V DC, while offering a standardized output signal of 4-20 mA or 0-10 V. Depending on the model, the transducer's power supply is 85 - 253 V AC/DC or 20 - 40 V AC/DC. Installation is very simple: You just have to attach the current transducer to a 35 mm DIN rail. You can then process the current transducer's output signal with a controller or display system.
    - DC voltage measurement up to 600 V DC
    - Output: 0/4 ... 20 mA or 0 ... 10 V
    - Different power supply types
    - DIN rail mounting
    - IP 50
    - Connection of a current transformer
    - Simple operation
    Technical Specifications (voltage)
    Input (max.) -1 ... 100 V DC
    -2 ... 250 V DC
    -5 ... 400 V DC
    ±100 V DC
    ±250 V DC
    ±600 V DC
    Accuracy 0.2% FS
    Overload 120% of rated voltage
    Output 0/4 ... 20 mA
    0 ... 10 V
    Dimensions 22.5 x 120 x 100 mm
    Mounting 35 mm DIN rail
    Protection class IP 50
    Power supply 85 ... 253 V AC/DC
    20 ... 40 V AC/DC
    Power consumption 4 VA
    Environmental conditions -20 ... +55 °C / < 95% RH
    Installation category Standard: II
    400 V type: III
    Pollution level 2
    Maximum cable cross-section 1.5 mm²
    Delivery Content
    1 x PCE-P20H Voltage Transducer

    Note: PCE-PD14 (optional accessory) is required for adjustment
