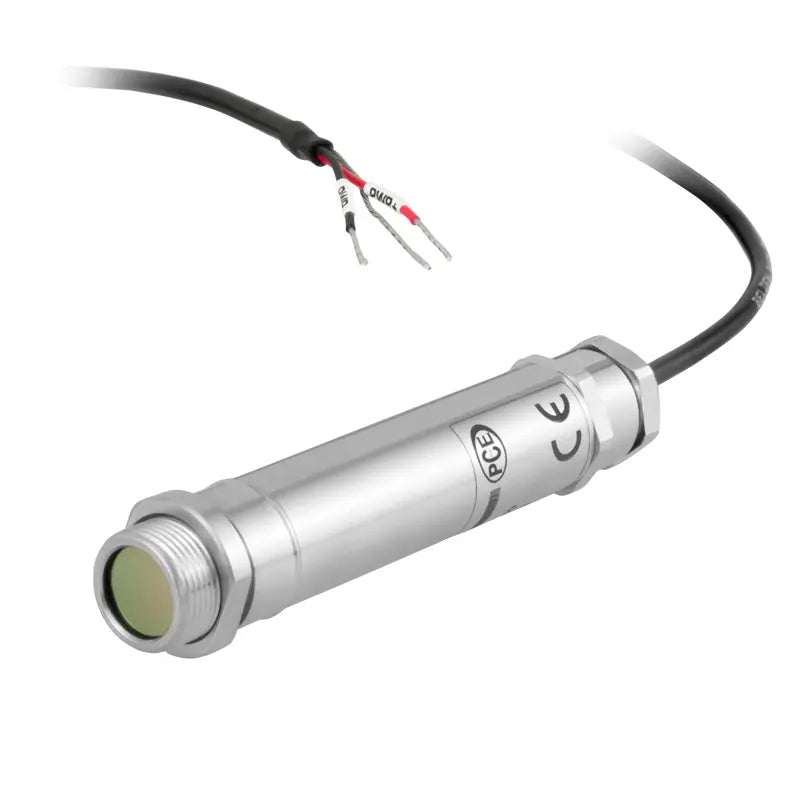

Infrared Thermometer PCE-IR 50

Product form

SKU: PCE-IR 50
Barcode: 4250348728333

Delivery 48–72h

€424,61 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoInfrared thermometer
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Infrared thermometer for measuring surface temperatures / Fixed installation / Delivery includes mounting plate / Range up to +500 ºC / For remote machine control
    With the infrared thermometer, you can measure surface temperature. The range of this infrared thermometer is 0 ... +500 ºC. Non-contact measurement is simple and fast. The measured temperature value is transmitted as a 4 ... 20 mA signal, which allows this infrared thermometer to be integrated into any control system, such as production processes or the control of electrical installations. The delivery of the infrared thermometer includes a mounting plate that allows the device to be fixed. Afterwards, you simply have to point the thermometer at the heat source and you can start measuring. The cable length of the infrared thermometer is 1 m, which allows flexible use and, on the other hand, also allows it to be installed quickly and easily in hard-to-reach places. It may also need to be installed in live areas. Especially in such areas, we recommend using an infrared thermometer.
    - Range: 0 ... +500°C
    - For wall mounting (includes plate)
    - Output signal: 4 ... 20 mA
    - Simple mounting and operation
    - Short reaction time
    - 1 m connection cable
    Range 0 ... +500 °C
    Accuracy ± 1 °C or 1 % of measured value,
    whichever is higher
    Repeatability ± 0.5 °C or 0.5 % of measured value,
    whichever is higher
    Optical resolution 15:1
    Output signal 4 ... 20 mA
    Spectral range 8 ... 14 µm
    Emissivity degree Fixed, 0.95
    Power supply 24 VDC
    Load 900 Ω
    Protection type IP65
    Material Stainless steel
    Operating temperature 0 ... +70 °C
    Relative humidity 10 ... 95 %
    Response time T90: 240 ms
    Accessories Delivery includes mounting plate
    Cable length 1 m
    Dimensions Ø18 x 103 mm
    1 x PCE-IR 50 Infrared thermometer
    1 x Mounting plate
    1 x User manual
