Earth resistance tester PCE-ERT 10

Product form

SKU: PCE-ERT 10
Barcode: 4250348707970

Delivery 48–72h

€241,37 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoEarth resistance meter
    Peso 0,7 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

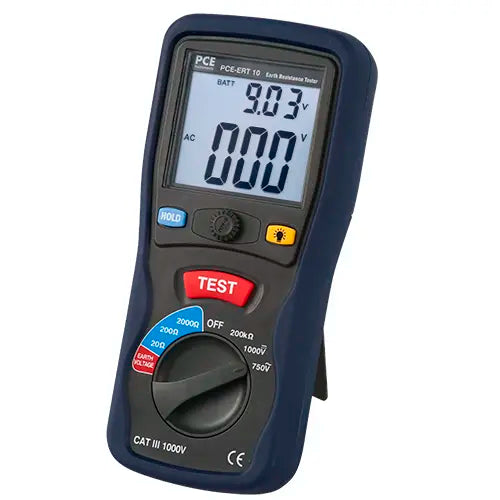

    Earth Resistance Tester measures resistance against earth up to 2000Ω / with earth voltage measurement / CAT III 1000 V / with zero adjustment / large LCD display / ground spikes included in the delivery
    _x000D_
    The earth resistance tester is a handheld device that allows for quick and easy determination of earth resistance. The earth insulation is determined with this earth resistance tester using the three-wire technique up to 2000 Ω. A rotary switch allows you to perform a zero adjustment before each measurement, which optimizes accuracy. The earth resistance tester also offers a normal resistance measurement up to 200 kΩ, an earth voltage measurement, and an AC and DC voltage measurement. The large LCD display with backlighting shows not only the current measurement value but also the battery voltage, allowing for better assessment of battery status. In addition to the test leads, the ground spikes are also included in the delivery. The carrying case, which also stores all accessories, completes the scope of delivery.
    _x000D_
    - Three-wire measurement method
    _x000D_ - Earth resistance is determined in three measurement ranges up to 2000 Ω
    _x000D_ - Earth voltage measurement up to 200 V
    _x000D_ - Battery status indication on screen
    _x000D_ - Zero adjustment possible
    _x000D_ - AC and DC voltage measurement
    _x000D_ - All accessories are also stored in the carrying case
    Measuring ranges Earth insulation
    Earth voltage
    DC voltage
    AC voltage
    Resistance
    20 Ω / 200 Ω / 2000 Ω
    200 V
    1000 V
    750 V (40 Hz - 400 Hz)
    200 kΩ
    Resolution Earth insulation
    Earth voltage
    DC voltage
    AC voltage
    Resistance
    0.01 Ω / 0.1 Ω / 1 Ω
    0.1 V
    1 V
    1 V
    0.1 kΩ
    Accuracy Earth insulation
    Earth voltage
    DC voltage
    AC voltage
    Resistance
    ±(2 % + 10 digits) / ±(2 % + 3 digits) /
    ±(2 % + 3 digits)
    ±(3 % + 3 digits)
    ±(0.8 % + 3 digits)
    ±(1.2 % + 10 digits)
    ±(1 % + 2 digits)
    Measurement rate 2.5 / second
    Display LCD display with backlight
    Power supply 6 x 1.5 V AA batteries
    Environmental conditions 0 ... 40 ºC / <80 % R.H.
    Dimensions 200 x 92 x 50 mm
    Weight 700 g
    Standards IEC10101, CAT III 1000 V
    _x000D_ 1 × Earth Resistance Tester PCE-ERT 10

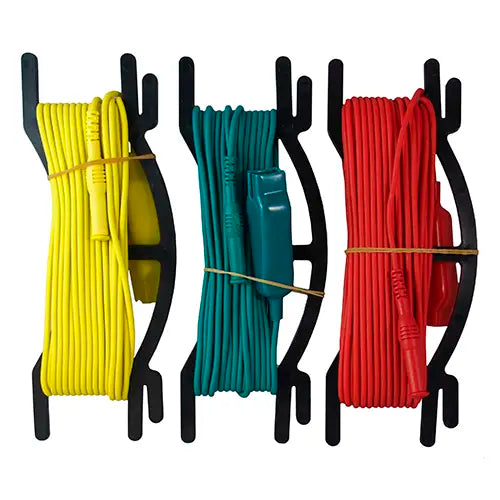

    1 x Set of test leads

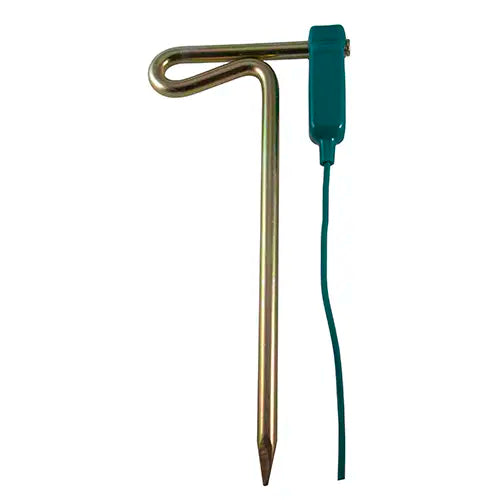

    2 x Ground spikes
    6 x Batteries

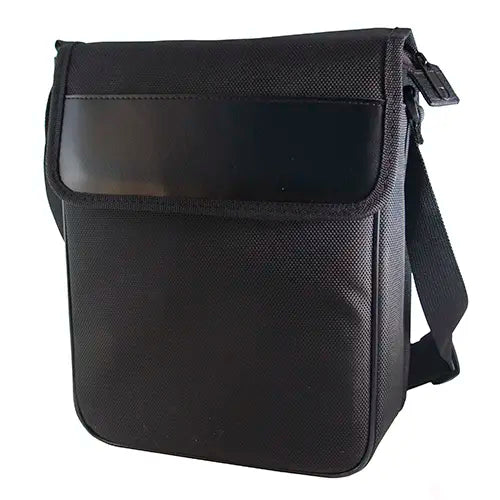

    1 x Carrying case
    1 x User manual
