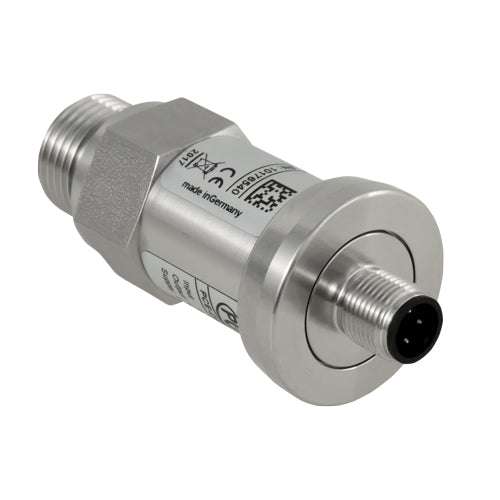

PCE-DMU 10 Pressure Sensor

Product form

SKU: PCE-DMU 10
Barcode: 4250348730138

Delivery 48–72h

€402,78 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoPressure sensor
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Pressure sensor up to 400 bar / Various connections /
    Output: 0/4 ... 20 mA or 0 ... 10 V / Ceramic diaphragm
    _x000D_
    The pressure sensor can be used for absolute and relative pressure measurements. You can use the pressure sensor for fuels, oils and gases. The ceramic diaphragm is robust and suitable for industrial and mechanical engineering, heating, ventilation and air conditioning systems, as well as industrial vehicle hydraulics. The modular design of the pressure sensor allows for a combination of process connections, measurement ranges, and electrical connection variants. All of this makes it possible to use this pressure sensor in most industrial automation applications. The transducer operates with an accuracy of 0.5% of the measuring range.
    _x000D_
    _x000D_ - 2 or 3-wire output
    _x000D_ - 0/4 ... 20 mA or 0 ... 10 V (selectable)
    _x000D_ - Minimum measuring range: 0 ... 100 mbar
    _x000D_ - Maximum measuring range: 0 ... 400 bar
    _x000D_ - Accuracy: 0.5% of the measuring range
    _x000D_ - Ceramic diaphragm
    Nominal relative pressure in bar -1 ... 0 1 1.6 2.5 4 6 10 16 25 40 60 100 160 250 400
    Nominal absolute pressure in bar - 1 1.6 2.5 4 6 10 16 25 40 60 100 160 250 400
    Overpressure in bar 3 3 5 6 12 12 20 50 50 120 120 200 400 400 650
    Burst pressure in bar 4 4 7 7.5 15 18 30 70 75 180 150 300 500 750 1000
    Vacuum resistance Unlimited
    Output signal and power supply 2-wire 4 ... 20 mA: 8 ... 32 V DC
    3-wire 0 ... 10 V: 14 ... 30 V DC
    Load 2-wire: [(UB – UB min) / 0.02 A] Ω
    3-wire voltage: 10 kΩ
    General technical specifications
    Accuracy ± 0.5 % FS
    Long-term stability < ±0.3 % FS
    Measurement rate 1 kHz
    Response time 2-wire: <10 ms
    3-wire: < 3 ms
    Media Fuels, oils, gases
    Temperature ranges Measured substance: -40 ... +125 °C
    Ambient: -40 ... +85 °C
    Storage: -40 ... +100 °C
    Pressure connection / housing Stainless steel 1.4301
    Seal FKM
    Diaphragm Ceramic Al2O3
    Parts in contact with the medium Pressure connection, seal, diaphragm
    _x000D_ 1 x PCE-DMU 10 pressure sensor_x000D_
