PCE-VR 10 Data Logger

Product form

SKU: PCE-VR 10
Barcode: 4250348719355

Delivery 48–72h

€425,83 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica
    Especificaciones del producto
    Tipo de productoData logger
    Peso 0,19 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)
    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones
    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Voltage Data Logger

    Voltage data logger for 0 ... 3000 mV / 3 input channels / Adjustable logging rate / Backlit LCD / SD memory card / Data logging in .xls format

    The voltage data logger from PCE Instruments is used to record up to 3 channels of 0…3000 mV signals. The voltage data logger stores the measured voltages on an SD card in Excel format. To record higher voltages in a range between 0…10 V, a voltage divider can be used. The measured voltage is transmitted via clamp connection terminals to the data logger, which displays the corresponding values directly on the screen and at the same time stores them in memory with the corresponding date and time. It is not necessary to scale the measurement signal, as the measured values are stored directly as mV values. Scaling can be done manually in Excel. The voltage data logger thus determines the pure raw data from the sensors, which means that any further processing and evaluation of the data can be done very flexibly using spreadsheet programs such as Excel.

    In addition to storing the measured values, the voltage data logger displays the values of the respective voltage channels on the backlit LCD. The maximum resolution here is 0.1 mV with an accuracy of 0.5% + 2 mV. The voltage data logger is powered by 6 AA 1.5 V batteries or a power supply. To display values in real time, you can connect the PCE Instruments voltage data logger to a computer via the serial interface. The logging rate is adjustable between 1 and 600 seconds. The data logger's housing is robust, and the device can be placed on a table or mounted on a wall. This allows for mobile measurements in different locations, as well as stationary measurements, for example, when continuously recording in a single installation.

    Application areas of the voltage data logger

    If measured values and data need to be recorded over a long period of time, compared and subsequently documented, in most cases the most suitable data loggers are those specially designed to measure the corresponding quantities. These often involve measuring and recording parameters such as temperature, humidity, pressure, energy, light, pollutants or current and voltage. The data logger consists of a storage medium such as an SD card, an interface (USB, Bluetooth, WLAN, etc.) and at least one channel for the corresponding measurement parameter. It is often also possible to simultaneously record different quantities via multiple channels.

    The PCE Instruments voltage data logger has been specially designed for measuring electrical voltage and is therefore suitable for parallel recording of voltages on a maximum of three voltage channels. With the voltage data logger, for example, sensor data that can be read via a voltage output are recorded. The measuring range of up to 3000 mV can be extended for sensors with higher voltages, up to 10V, through a voltage divider (see optional accessories). For example, if physical quantities such as temperature, pressure, and level need to be simultaneously recorded and compared in a system, the corresponding sensors can be connected to the logger to visualize and document changes and the existing relationship between the 3 quantities. In addition, the voltage data logger can be used to calibrate identical sensors at a measurement point. In this way, sensor errors can be ruled out directly before permanent installation and measurement. Air pressures before and after filters can also be checked with the appropriate sensor technology to verify filter operation. Voltage data loggers are therefore suitable for various applications in industry, maintenance and repair, or research and development.

    - Data logging to SD card
    - 3 measurement channels
    - Input: 0 ... 3000 mV
    - Terminal connection
    - Data is recorded in .xls file
    - Large backlit display
    Range Resolution Accuracy
    0 ... 300 mV 0.1 mV ±(0.5 % + 0.2 mV)
    0 ... 3000 mV 1 mV ±(0.5% + 2 mV)
    Logging rate 1, 2, 5, 10, 30, 60, 120, 300, 600 seconds
    Memory SD card up to 16 GB
    Display Backlit LCD
    Display data update 1 second
    Power supply 6 x 1.5 V AA batteries
    9 V / 800 mA power adapter
    Operating conditions 0 ... 50 °C / < 85 % R.H.
    Dimensions 132 x 80 x 32 mm
    Weight Approx. 190 g

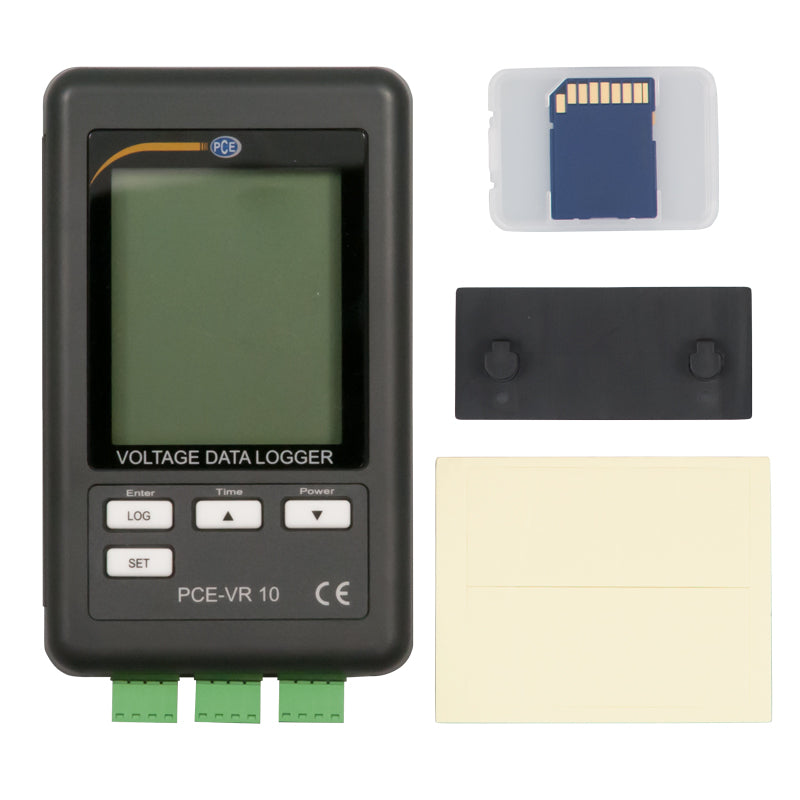

    1 x PCE-VR 10 Voltage Data Logger
    3 x Terminals
    1 x SD memory card
    1 x Stand
    1 x Adhesive tape
    1 x Instruction manual
