PCE-USM Data Logger

Product form

SKU: PCE-USM
Barcode: 4250348722164

Delivery 48–72h

€181,91 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoData logger
    Peso 0,05 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

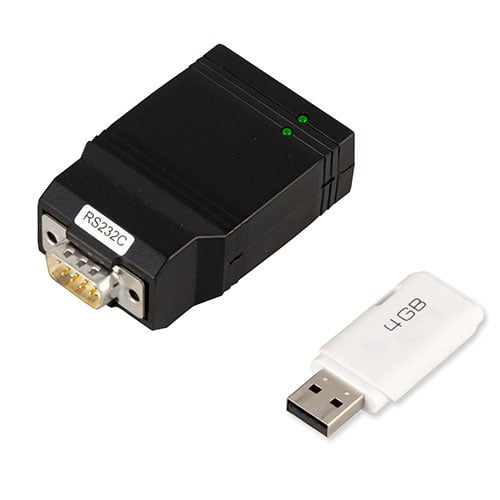

    RS-232 to USB Data Logger / TXT format / date and time /
    query function / external power supply / includes 4 GB USB stick
    This RS 232-USB data logger can be connected to the standard Sub-D 9 interface of a device and store data in TXT format on a USB stick. The RS 232-USB data logger is powered by an external power supply, which is included in the delivery. The RS 232-USB data logger stores data with date and time. It also offers the possibility to automatically query data in a configurable time period. Query commands and other settings can be easily modified in TXT format and uploaded using the configuration file, which is located on the USB stick. The RS 232-USB data logger can always save data to the same file or to a new one each time after the USB memory stick is removed from the adapter and reinserted.
    - TXT format
    - Adjustable query commands
    - Adjustable query cycle
    - Internal clock for date and time
    - External power supply
    - Includes USB stick
    Technical Specifications
    Input sub-D 9 male
    pin 2 - TxD data transmission
    pin 3 - RxD data reception
    pin 5 - ground
    Output USB A female
    Storage format TXT
    Memory manual (stores received data)
    automatic (requests data)
    Memory 4 GB USB stick
    up to 64,000,000 data
    (time / date / weight / unit)
    Power supply 12 V / 1.4 A power supply included
    Dimensions 65 x 45 x 25 mm (without USB stick)
    Weight 50 g (without power supply)
    Configuration data for the RS 232-USB data logger. This data will simply be transformed by the editor and reproduced on the USB stick (see instructions). Once the USB stick has been reinserted into the RS 232-USB data logger, the configurations are saved.
    Delivery content
    1 x RS 232-USB data logger
    1 x 4 GB USB stick
    1 x Power supply
    1 x Instruction manual
