PCE-CR 10 Data Logger

Product form

SKU: PCE-CR 10
Barcode: 4250348719348

Delivery 48–72h

€396,70 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica
    Especificaciones del producto
    Tipo de productoData logger
    Peso 0,19 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)
    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones
    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

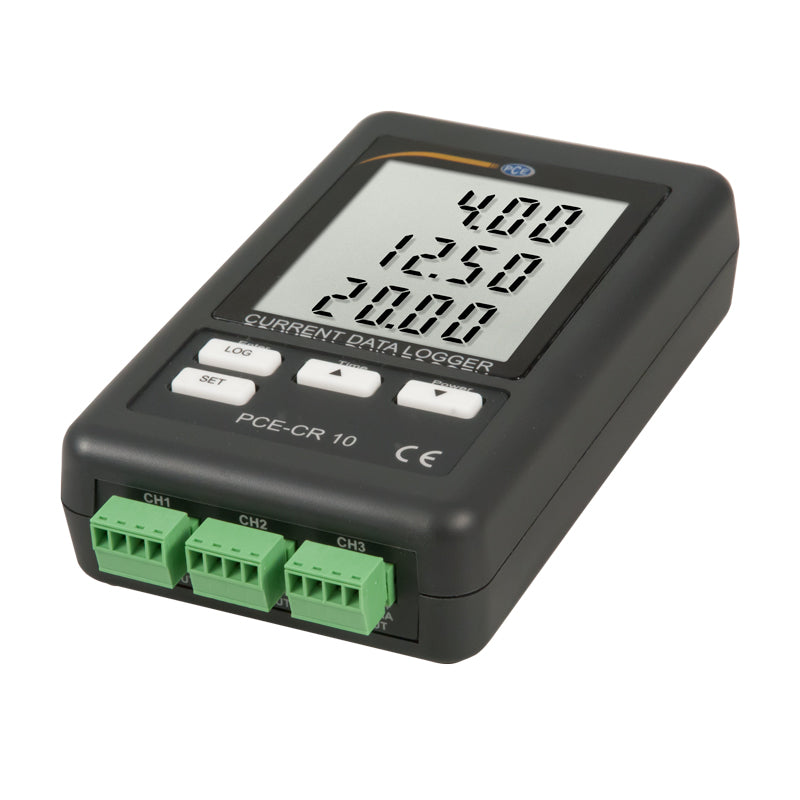

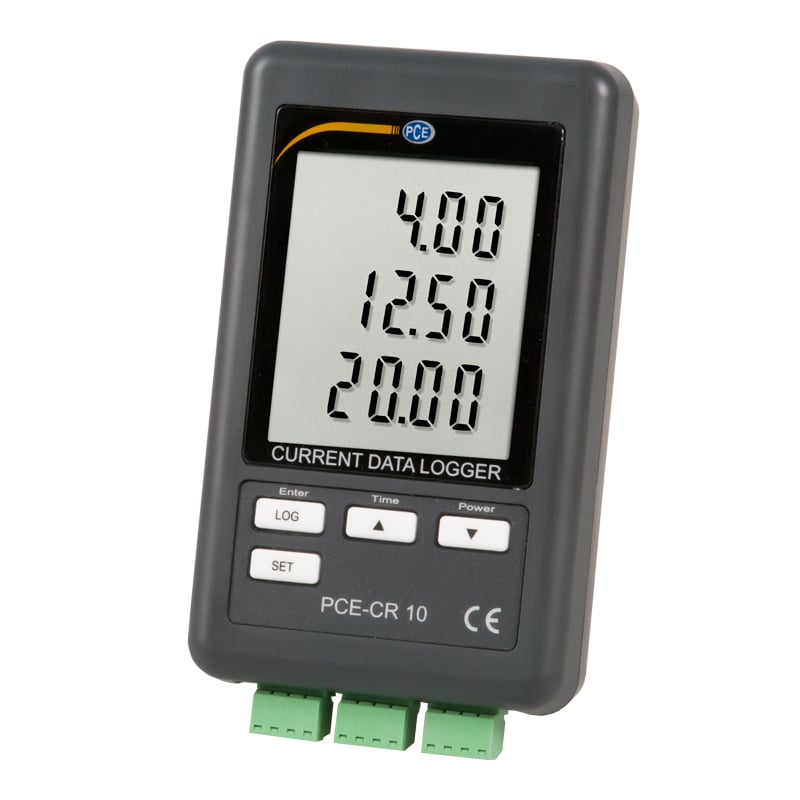

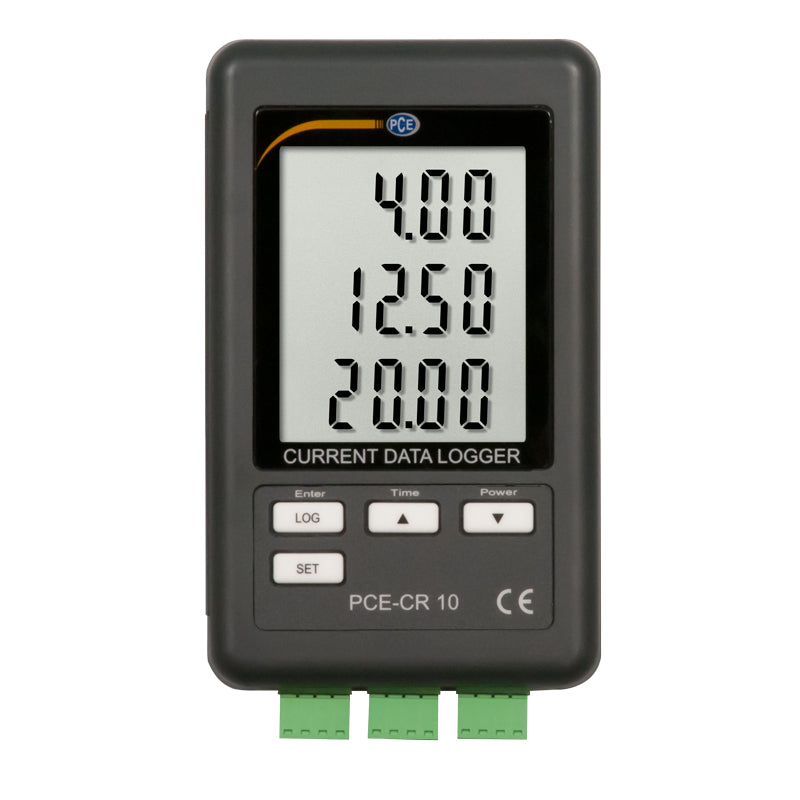

    3-channel data logger PCE-CR 10

    Current data logger for 0/4 ... 20 mA / 3 input channels / Adjustable logging rate / Backlit LCD display / SD memory card / Logging as XLS

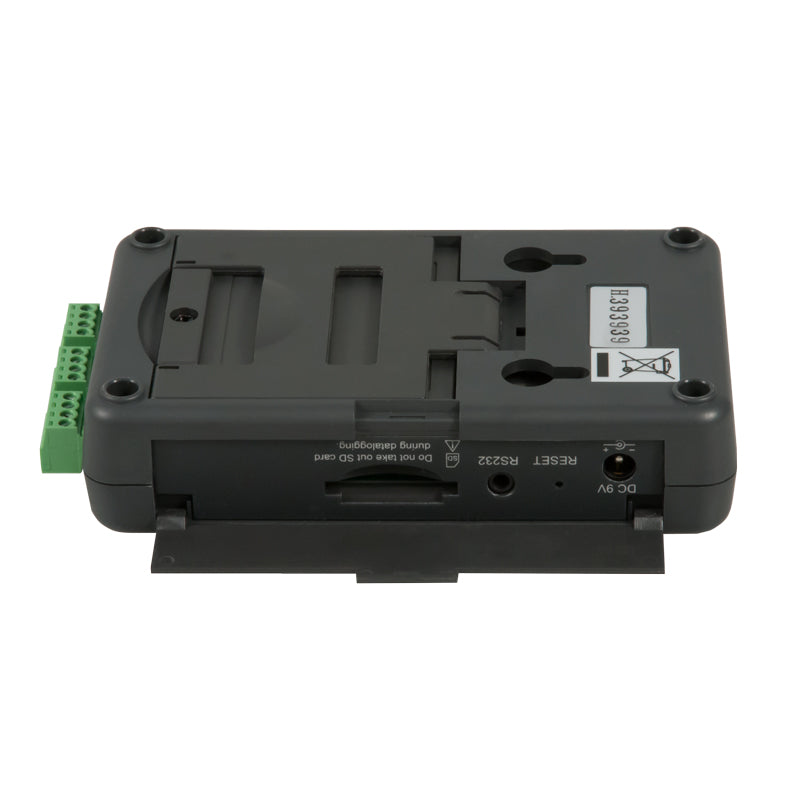

    The current data logger is used to record up to 3 signals of 0/4…20mA. The device stores the measured process flows on an SD card in Excel format. In addition to storing the measured values, the device also displays them on a large screen. The maximum resolution is 0.01 mA. The device operates with 6 AA 1.5V batteries or with a power supply. To view the measured values in real time, this current data logger can be connected to the PC via a serial interface.

    Current signals are transmitted to the data logger via terminal blocks. These allow switching between connected sensors with a mA output relatively quickly and easily. This ensures that the logger can be used universally and flexibly. There is no need to scale the measurement signal, as the measured values are stored directly as mA. In Excel, scaling can be conveniently performed manually.

    Application areas

    The current data logger is used to record the output signals of numerous 0/4…20mA sensors, for example, during pressure measurement or flow rate control. It can easily and accurately monitor, record, and evaluate, for example, temperature, humidity, pressure, flow, pH value parameters, etc. in production facilities with standardized 0…20 mA output signals. Often, customers or suppliers also require proof of certain process parameters, which you, as a manufacturer, can conveniently store as a current signal in the machine. The PCE-CR 10 current data logger can be used almost anywhere a stationary sensor or transmitter needs to be temporarily checked. The current data logger is also applicable to sensors developed with mechanical properties for mobile use. Even as a product manufacturer, essential information during machine operation can be directly stored as a standard signal in the data logger and later evaluated on a PC or laptop. Therefore, these devices also serve for machine monitoring or analysis.

    Adjustment / Calibration

    An ISO calibration certificate can be issued for the PCE-CR 10 current data logger. It is recommended that, by default, data loggers undergo a check, adjustment, and subsequent calibration. The calibration interval of the current data logger is normally specified in the internal quality manual. This calibration of the current data logger is performed in the PCE Instruments calibration laboratory.

    - Data logging on SD card
    - 3 measurement channels
    - 0/4 ... 20 mA input
    - Connection via terminals
    - Data is recorded in xls file
    - Large display with backlight
    Range 0/4 ... 20 mA
    Accuracy ± (0.5% + 0.02 mA)
    Resolution 0.01 mA
    Recording rate 1, 2, 5, 10, 30, 60, 120, 300, 600 seconds
    Memory SD card up to 16 GB
    Display LCD with backlight
    Data update on screen 1 second
    Power supply 6 x 1.5 V AA batteries
    9 V / 800 mA power adapter
    Operating conditions 0 ... 50 °C / < 85 % R.H.
    Dimensions 132 x 80 x 32 mm
    Weight Approx. 190 g

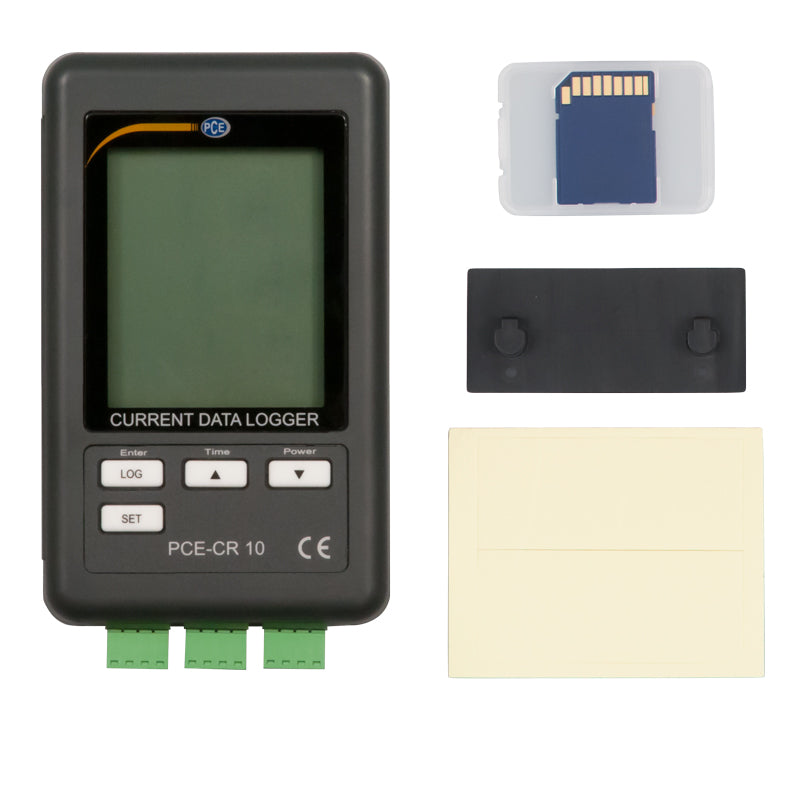

    1 x PCE-CR 10 current data logger
    3 x Terminals
    1 x SD memory card
    1 x Holder
    1 x Adhesive tape
    1 x Instruction manual
