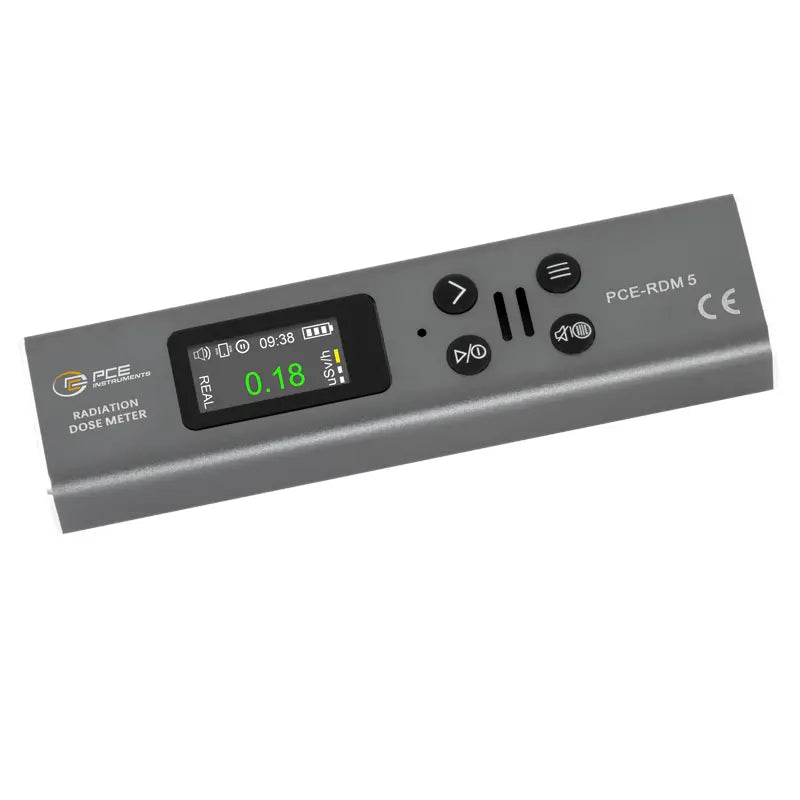

Radiometer for X-ray, Gamma, and Beta Radiation Dose Measurement PCE-RDM 5

Product form

SKU: PCE-RDM 5
Barcode: 4250348732187

Delivery 48–72h

€115,17 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoRadiometer
    Peso 0,045 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Radiometer for measuring X-ray, Gamma, and Beta radiation dose / Easy to use / Alarm function
    The radiometer is a small and sensitive device used to monitor X-rays, Gamma radiation, and Beta radiation. The radiometer uses an energy-compensated Geiger-Müller counter tube as a detector for precise measurement. According to the German Radiation Protection Ordinance, personal dosimetry with a radiation measurement device is mandatory in some areas. The radiometer is equipped with a powerful microprocessor and a TFT display, which makes it easy to operate.

    The radiometer itself has three alarm modes: optical, acoustic, and vibration. The user can adjust the alarm threshold. It has two alarm thresholds, one for dose (Dose alarm) and one for rate (Rate alarm). When the threshold is reached, the radiometer activates the alarm which serves as protection. The main technical indicators of the instrument comply with international standards.
    - Beta, Gamma, and X-ray radiation
    - Dose measurement 0.08 ... 9999 µSv/h
    - Adjustable alarm
    - Optical, acoustic, and vibration alarm
    - 3 different display modes
    - Integrated rechargeable lithium battery
    - USB-C connection for charging

    Measuring range

    0.08 ... 9999 µSv/h

    Resolution

    0.01 µSv/h

    Sensor

    Geiger-Müller counter tube



    Alarm

    Optical, acoustic, and vibration

     - Dose alarm

    1.30 µSv / 2.50 µSv / 4.00 µSv / 6.00 µSv / 8.00 µSv

     - Rate alarm

    0.60 µSv/h / 2.50 µSv/h / 4.00 µSv/h / 6.00 µSv/h / 8.00 µSv/h



    Display

    Color TFT

    Display modes

    Real-time



    Max + Average + Total



    Histogram

    Interface

    USB-C (for charging only)

    Battery capacity

    400 mAh

    Response time

    10 seconds

    Menu language

    English

    Protection

    IP20

    Operating conditions

    -10 ... 50 °C / ≤ 95 % R.H. non-condensing

    Storage conditions

    -10 ... 50 °C / ≤ 95 % R.H. non-condensing

    Dimensions



    - Length

    105 mm

    - Width

    27 mm

    - Height

    17 mm

    Weight



    - Net (device only)

    45 g

    - With included accessories

    57 g

    - With packaging

    120 g

    1 x Radiometer PCE-RDM 5
    1 x Micro USB cable
    1 x Instruction manual
