Clamp meter PCE-DC3

Product form

SKU: PCE-DC3
Barcode: 4250348700698

Delivery 48–72h

€154,00 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoClamp meter
    Peso 0,175 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

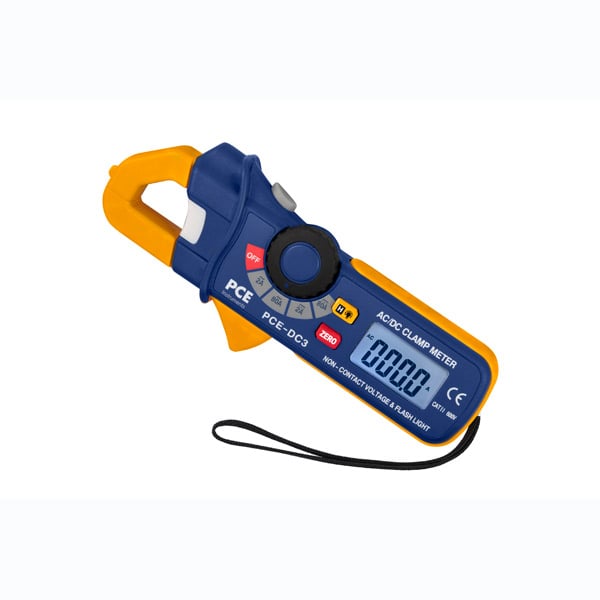

    Mini Clamp Meter 2/80 A AC/DC with High Resolution
    This mini clamp meter has been developed for indirect measurement of AC/DC currents with high resolution. This clamp meter integrates a non-contact voltage detection function and a flashlight to illuminate the measurement area. The small dimensions of this clamp meter make it possible to use it in hard-to-reach areas. The large backlit display of this clamp meter ensures good readability even in very dark areas, such as in distribution cabinets. The non-contact voltage detection function will help you detect voltage areas with potential risks for you and also provides a precision tool for determining cable breaks in cable reels, extension cords, and meter connection cables.
    - 3 2/3 digit LCD display with backlight
    - AC / DC current measurement up to 80 A
    - Data hold function
    - DCA zero function
    - Non-contact voltage tester
    - Integrated illumination of the measurement area
    - Automatic range selection
    - Auto power off
    - Jaw opening: 18 mm

    AC current
    (50 / 60 Hz)

    Range / Resolution / Accuracy
    2 A  / 1 mA / ± 2.8 % + 10 dgt
    80 A / 100 mA / ± 3.0 % + 8 dgt

    DC current

    Range / Resolution / Accuracy
    2 A / 1 mA / ± 3.0 % + 10 dgt
    80 A / 100 mA / ± 3.0 % + 8 dgt

    AC voltage detection
    (non-contact)

    100 VAC to 600 VAC 50 / 60 Hz

    Measurement area illumination

    White LED

    Conductor diameter

    18 mm maximum

    Display

    3 2/3 digit LCD display
    with LED and backlight

    Power supply

    2 x 1.5 V AAA batteries

    Casing

    PVC

    Dimensions

    164 x 65 x 32 mm

    Weight

    175 g

    Standards

    EN61010-1; CAT II / 600V
    EN61010-2-032; CAT III / 300V

    1 x PCE-DC3 Mini Clamp Meter
    1 x Carrying case
    2 x Batteries
    1 x User manual
