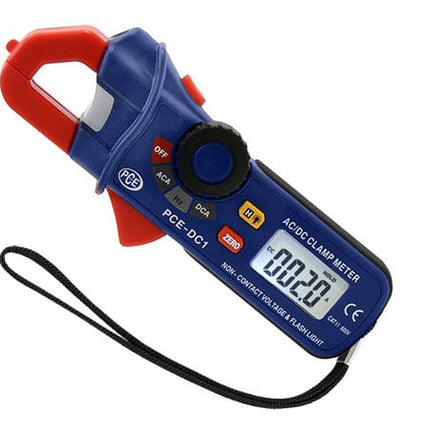

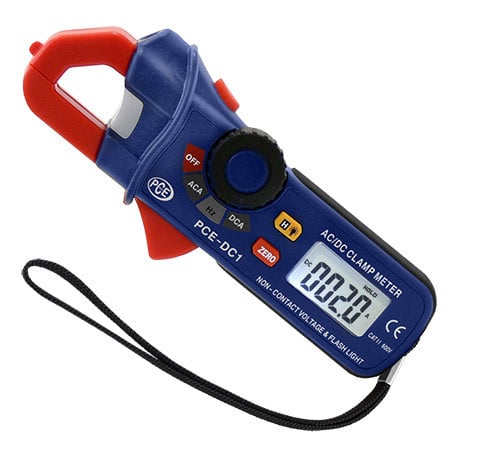

Clamp meter PCE-DC1

Product form

SKU: PCE-DC1
Barcode: 4250348703095

Delivery 48–72h

€93,31 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoClamp meter
    Peso 0,155 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Digital clamp meter for measuring AC current, AC voltage, DC current
    and frequency (3 in 1) / maximum clamp opening 18 mm
    This clamp meter has been developed for indirect detection of AC/DC current and frequency. The clamp meter integrates a flashlight to illuminate the measurement point, and a non-contact voltage testing function. The reduced dimensions of this clamp meter allow it to be used in hard-to-reach places. The illuminated display of the clamp meter ensures good readability even in dark places, such as electrical cabinets and cable ducts. Non-contact voltage testing not only helps detect dangerous potentials, but is also a useful tool for locating the approximate position of a cable break.
    - 3 2/3 digit LCD display, with backlight, DC current clamp
    - AC/DC current, AC voltage and frequency measurement
    - Data hold function, DCA zeroing, non-contact voltage tester
    - Integrated measurement point illumination
    - Automatic range selection
    - Auto power off
    - Clamp opening: 18 mm
    AC Current (50/60Hz)



    Range 200 A
    Resolution 100 mA
    Accuracy ±3.0 % + 8 digits

    DC Current
    Range 200 A
    Resolution 100 mA
    Accuracy ±2.8 % + 8 digits
    AC voltage test
    (non-contact)
    100 VAC to 600 VAC 50 / 60 Hz

    Frequency
    Range 40 ... 50 Hz
    Resolution 0.01 Hz
    Accuracy ±1.2 % + 5 digits
    Range 51 ... 510 Hz
    Resolution 0.1 Hz
    Accuracy ±1.2 % + 3 digits
    Range 0.51 ... 1 kHz
    Resolution 0.001 kHz
    Accuracy ±1.2 % + 3 digits

    Measurement point illumination White LEDs
    Conductor diameter max. 18 mm
    Display 3 2/3 digit LCD display,
    with white LEDs, backlight
    Power supply 2 x 1.5 V AAA batteries
    Housing PVC
    Dimensions 155 x 66 x 31 mm
    Weight 155 g
    Standards EN61010-1; CAT II / 600V
    EN61010-2-032 ; CAT III / 300V
    1 x Clamp meter PCE-DC1
    1 x Bag
    2 x Batteries
    1 x User manual
