PCE-DC 50 Clamp Meter

Product form

SKU: PCE-DC 50
Barcode: 4250348719157

Delivery 48–72h

€286,27 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica
    Especificaciones del producto
    Tipo de productoClamp meter
    Peso 0,315 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)
    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones
    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Clamp meter with true RMS measurement /
    Measurements: current, voltage, temperature / Bluetooth interface /
    Rubberized casing / HOLD function / Auto power-off / Max. conductor diameter 48 mm / Various functions

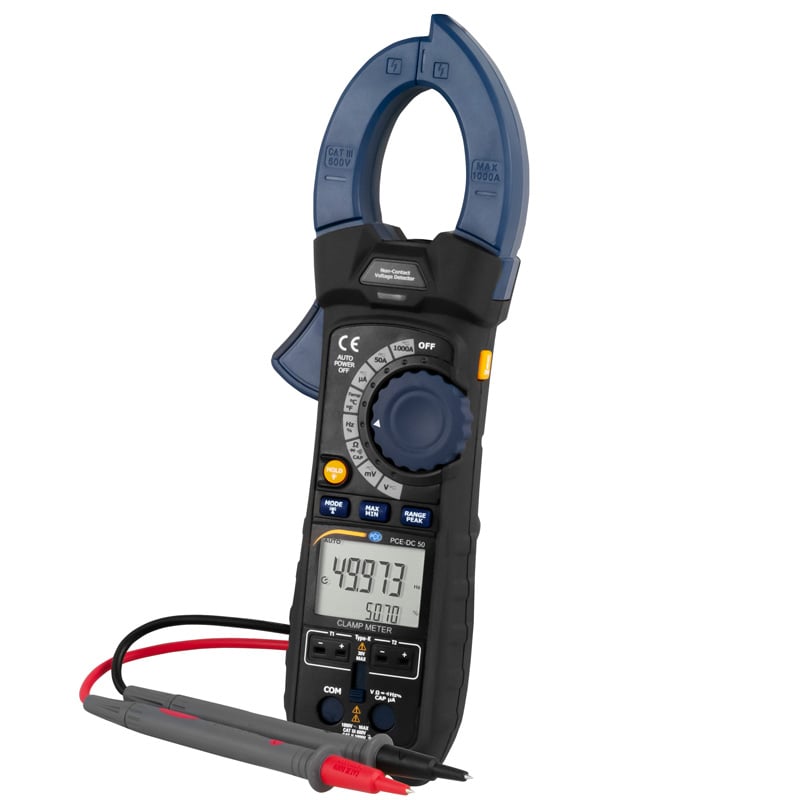

    The clamp meter is a device that measures currents up to 1000 A AC/DC. In addition to current measurement, the clamp meter measures voltage, frequency, duty cycle, resistance, capacitors and checks continuity and diodes. The clamp diameter is 48 mm, allowing it to measure cables and lines with a larger cross-section. Thanks to its NCV (Non-Contact Voltage) detection function, the clamp meter allows you to non-contact check if the cable or line is live.
    This clamp meter integrates a Bluetooth interface. Via the Bluetooth interface, you can connect the clamp meter to your computer or smartphone. This allows you to record values and analyze them later. If your computer does not have a Bluetooth interface to establish a connection with the clamp meter, a Bluetooth adapter is included in the delivery.
    Another special feature of the clamp meter is temperature measurement. You can connect two type K thermocouples to this clamp meter and perform two measurements simultaneously. It can measure temperatures up to 1000 °C. The clamp meter's casing is made of robust plastic with a rubber coating. Thanks to this coating, the clamp meter is also shock-resistant.
    - Measurement rate: 2 Hz
    - Connection plugs with lock
    - AC/DC current and voltage measurement
    - Bluetooth interface
    - Conductor diameter: max. 48 mm
    - Temperature measurement with 2 thermocouples
    - Auto power-off
    - Non-contact voltage detection
    DC Current A
    Range Resolution Accuracy (of reading)
    500 µA 0.01 µA ± (1% + 6 digits)
    5000 µA 0.1 µA ± (1% + 6 digits)
    50 A 0.01 A ± (2.5% + 5 digits)
    1000 A 0.1 A ± (2.5% + 30 digits)
    AC Current A
    Range Resolution Accuracy (of reading)
    500 µA 0.01 µA ± (1.5% + 30 digits)
    5000 µA 0.1 µA ± (1.5% + 30 digits)
    50 A 0.01 A ± (2.5% + 30 digits)
    1000 A 0.1 A ± (2.8% + 30 digits)
    Note: For AC current measurement, the indicated accuracy is when measuring at
    50/60 Hz and in a range of 5 to 100 %.
    Resistance
    Range Resolution Accuracy (of reading)
    500 Ω 0.01 ± (1% + 9 digits)
    5 kΩ 0.0001 ± (1% + 5 digits)
    50 kΩ 0.001 ± (1% + 5 digits)
    500 kΩ 0.01 ± (1% + 5 digits)
    5 MΩ 0.0001 ± (3% + 10 digits)
    50 MΩ 0.001 ± (3.5% + 10 digits)
    DC Voltage V
    Range Resolution Accuracy (of reading)
    500 mV 0.01 mV ± (0.1% + 8 digits)
    5 V 0.0001 V ± (0.1% + 4 digits)
    50 V 0.001 V ± (0.1% + 4 digits)
    500 V 0.01 V ± (0.1% + 4 digits)
    600 V 0.1 V ± (0.5% + 4 digits)
    AC Voltage V (50 Hz ... 1000 Hz)
    Range Resolution Accuracy (of reading)
    500 mV 0.01 mV

    ± (0.8% + 9 digits) (at 50 Hz / 60 Hz)
    5 V 0.0001 V ± (1% + 30 digits)
    50 V 0.001 V ± (1% + 30 digits)
    500 V 0.01 V ± (1% + 30 digits)
    600 V 0.1 V ± (1% + 30 digits)
    Note: For AC voltage measurement, the indicated accuracy is when measuring between
    50 and 1000 Hz and in a range of 5 to 100 %
    Capacitance
    Range Resolution Accuracy (of reading)
    500 nF 0.01 ± (3.5% + 40 digits)
    5000 nF 0.1 ± (3.5% + 10 digits)
    50 µF 0.001 ± (3.5% + 10 digits)
    500 µF 0.01 ± (3.5% + 10 digits)
    5 mF 0.0001 ± (5% + 10 digits)
    Frequency
    Range Resolution Accuracy (of reading)
    50 Hz 0.001 ± (0.3% + 2 digits)
    500 Hz 0.01 ± (0.3% + 2 digits)
    5 kHz 0.0001 ± (0.3% + 2 digits)
    50 kHz 0.001 ± (0.3% + 2 digits)
    500 kHz 0.01 ± (0.3% + 2 digits)
    5 MHz 0.0001 ± (0.3% + 2 digits)
    10 MHz 0.001 ± (0.3% + 2 digits)
    Duty cycle
    Range Resolution Accuracy (of reading)
    5% ... 95% 0.1

    ± (1% + 2 digits)(of the measured value)
    Pulse width: 100 µs ... 100 ms
    Frequency: 10 Hz ... 10 kHz
    Temperature
    Range Resolution Accuracy (of reading)
    -100 °C ... 1000 °C 0.1 ± (1% + 2.5 °C)
    General technical specifications
    Conductor diameter max. 48 mm
    Display Dual, 50,000 counts
    Continuity test 50 Ohm / < 50 mA
    Diode test 0.3 mA / 2.8 V DC
    Battery status A symbol appears when the battery is low
    Overrange "OL" indication when range is exceeded
    Measurement rate 2 Hz
    Interface Bluetooth
    Peak detection > 1 ms
    Thermocouple Type K
    Fuse Ceramic fuse, 500 mA
    AC bandwidth (AC A / AC V) 50 Hz ... 400 Hz
    AC measurement True RMS
    Operating conditions 5 °C ... 40 °C / max. 80 % RH at 31 °C
    Storage conditions -20 °C ... 60 °C / max. 80 % RH
    Power supply 9 V battery
    Auto power-off After 30 minutes of inactivity
    Dimensions 230 x 76 x 40 mm
    Weight 315 g
    Safety IEC 1010-1(2001):
    EN 61010-1(2001)
    CAT III 600 V
    CAT II 1000 V
    Pollution degree 2

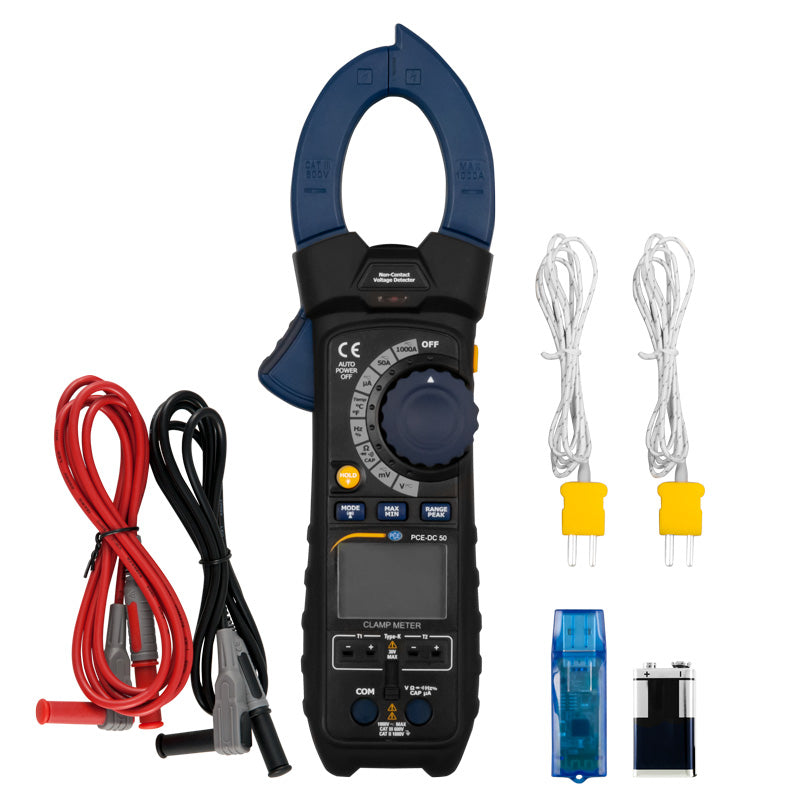

    1 x PCE-DC 50 Clamp Meter
    1 x Set of test leads
    1 x Carrying case
    1 x Software
    1 x Bluetooth adapter
    2 x Type K thermocouples
    1 x 9 V battery
