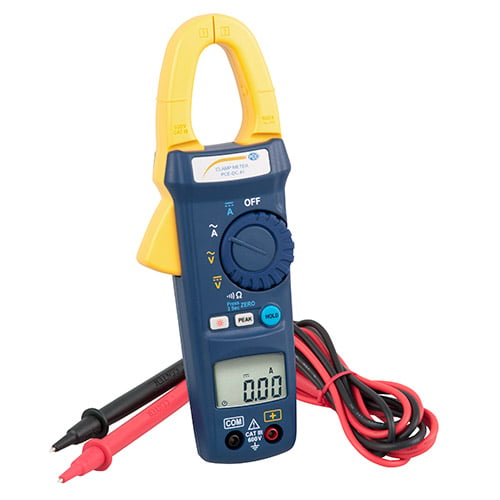

PCE-DC 41 clamp meter

Product form

SKU: PCE-DC 41
Barcode: 4250348714831

Delivery 48–72h

€257,14 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoClamp meter
    Peso 0,273 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Clamp meter measures voltage up to 600 V / current measurement up to 600 A / CAT III 600 V /
    resistance measurement up to 1000 Ω / non-contact measurement thanks to the clamp
    The clamp meter measures voltage up to 600 V, current up to 600 A and resistance up to 1000 Ω. With this clamp meter you can perform measurements with test leads or via the clamp. You can also perform continuity checks and diode tests. You can comfortably read the results on the backlit 4-digit display. The HOLD function freezes the current value on the display, and the PEAK function allows you to see the peak value.
    The clamp meter stands out for its mobile use. Its compact construction and clamp mechanism allow for single-handed operation. The automatic shutdown extends the life of the batteries.
    - Voltage: 600 V AC/DC
    - Current: 600 A AC/DC
    - Resistance: 1000 Ω
    - Opening mechanism
    - Continuity check
    - Peak and Hold functions
    - Includes test leads
    - 4-digit display
    - Backlight
    - Automatic shutdown
    DC Voltage
    Range Resolution Accuracy
    Input impedance: 1 MΩ 600 V 0.1 V ± 1 % + 2 digits
    DC Voltage (Peak variant)
    Range Resolution Accuracy
    Input impedance: 1 MΩ 600 V 0.1 V ± 1.5 % + 8 digits
    AC Voltage
    Range Resolution Accuracy
    Input impedance: 1 MΩ 600 V 0.1 V ± 1.2 % ± 5 digits
    (50 ... 500 Hz)
    AC Voltage (Peak variant)
    Range Resolution Accuracy
    Input impedance: 1 MΩ 600 V 0.1 V ± 1.7 % + 10 digits
    DC Current
    Range Resolution Accuracy
    60 A 0.01 A ± 2 % + 5 digits
    600 A 0.1 A
    DC Current (Peak variant)
    Range Resolution Accuracy
    600 A 0.1 A ± 2.5 % + 8 digits
    AC Current
    Range Resolution Accuracy
    60 A 0.01 A ±2 % + 5 digits (50...60 Hz)
    ±3 % + 5 digits (60...500 Hz)
    600 A 0.1 A
    AC Current (Peak variant)
    Range Resolution Accuracy
    600 A 0.01 A ±2.5 % + 10 digits
    Resistance
    Range Resolution Accuracy
    1000 Ω 0.1 Ω ± 1 % + 2 digits
    Continuity
    Range Buzzer function
    <40 Ω
    General Specifications
    Display 4-digit LCD
    Maximum indicated value: 6200
    Sampling rate 3 times/second
    Power supply 2 x 1.5 V AAA batteries
    Battery operating time approx. 50 hours
    (without buzzer or backlight)
    Automatic shutdown After 30 minutes of inactivity
    Environmental conditions 0 ... +40 °C; < 70 % R.H.
    Storage conditions -10 ... +60 °C; < 80 % R.H.
    Maximum clamp opening Ø 25 mm
    Dimensions 210 x 62 x 36 mm
    Weight 273 g, including batteries

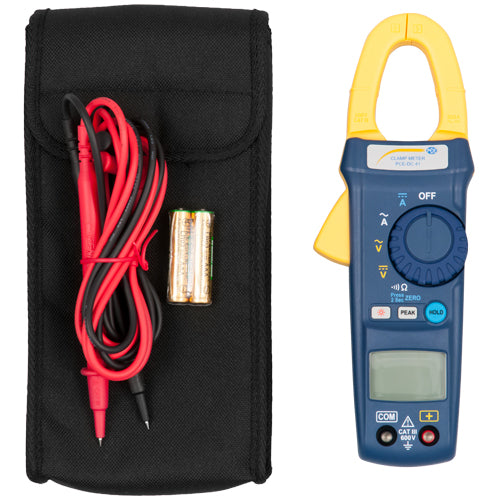

    1 x PCE-DC 41 Clamp meter
    1 x Set of test leads
    1 x Carrying bag
    2 x 1.5 V AAA batteries
    1 x User manual
