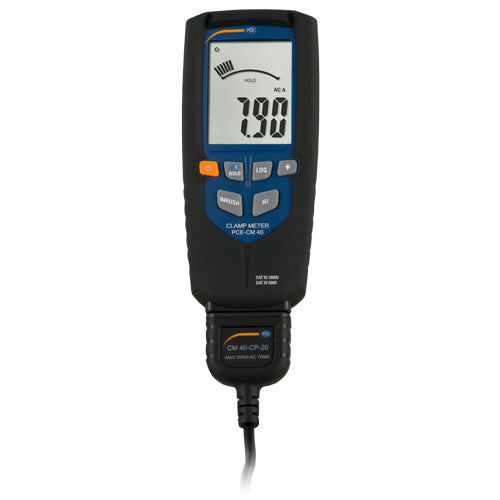

PCE-CM 40 Clamp Meter

Product form

SKU: PCE-CM 40
Barcode: 4250348718280

Delivery 48–72h

€238,95 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoClamp meter
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

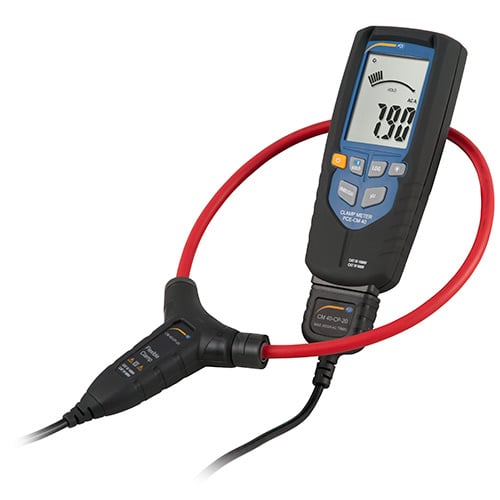

    Flexible clamp meter up to 3000 A / Rogowski coil with 170 mm diameter / Inrush function / Frequency measurement / LCD display
    The flexible clamp meter is ideal for current measurements up to 3000 A AC. In addition to measuring TRMS current, you can also use the flexible clamp meter to measure inrush currents. The measurement is carried out via the Rogowski coil. This means that the electrical conductor on which the flexible clamp is placed induces a voltage in the clamp meter. This voltage is proportional to the conduction of the electrical conductor. This allows very high currents to be measured with the flexible clamp meter with little danger. In addition to current measurement, the clamp meter measures frequencies in a range of 50 to 400 Hz.

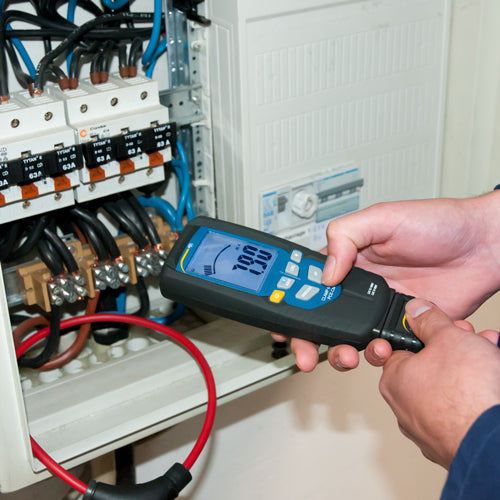

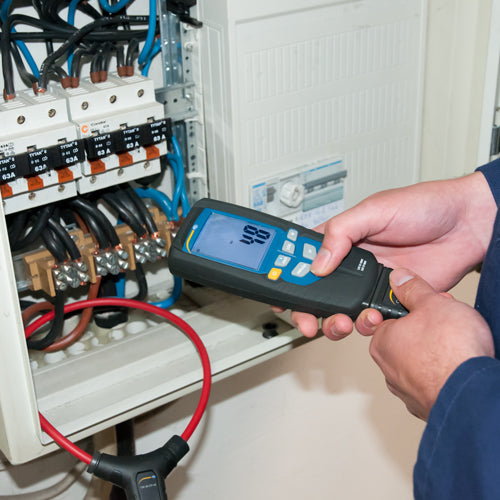

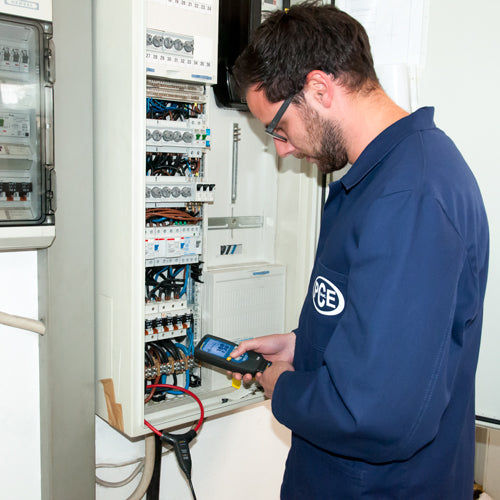

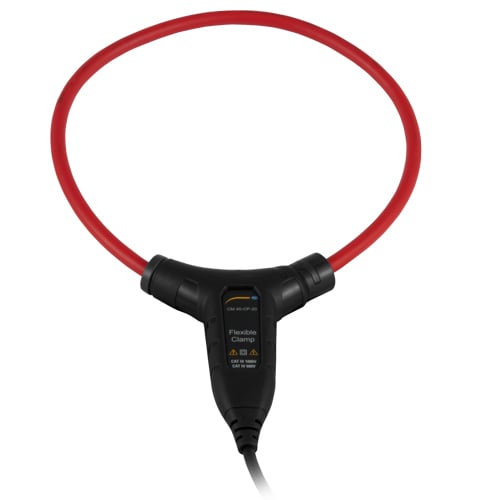

    The flexible clamp meter is used to measure AC currents in electrical machinery and installations. Thanks to the flexible Rogowski coil, which has a diameter of 170 mm, you can use this clamp to measure in places where it is not possible with a conventional clamp. You can read the AC current value on the backlit LCD display. It is also possible to save the values in a memory that can be read via the Bluetooth interface.
    - Up to 3000 A AC
    - LCD display
    - Inrush function
    - Frequency measurement
    - Simple operation
    - Memory
    AC TRMS current 50 ... 400 Hz
    Range Resolution Accuracy
    30 A AC 0.01 A ±(3 % of value + 8 digits)
    300 A AC 0.1 A ±(3 % of value + 5 digits)
    3000 A AC 1 A ±(3 % of value + 5 digits)

    General technical specifications

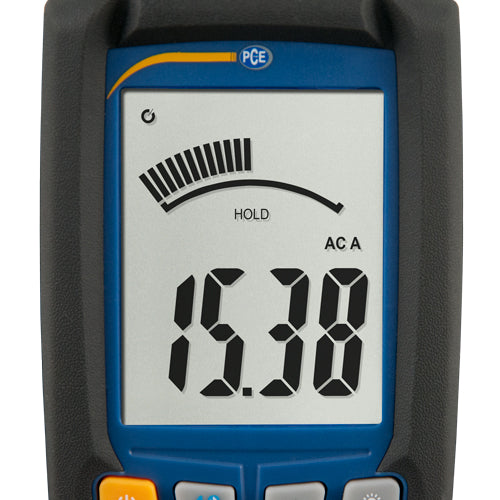

    Display LCD 3000 counts, backlit
    Opening diameter Approx. 170 mm x 5 mm
    Operating environmental conditions 5 ... 40 °C / max. 80 % R.H., non-condensing
    Storage environmental conditions -20 ... 60 °C / max. 80 % R.H., non-condensing
    Maximum operating altitude 2000 m
    Power supply 2 x 1.5 V AAA batteries
    Auto power off Yes, after 15 minutes of inactivity
    Safety EN61010-1, EN61010-2-032, EN61326-1
    Overvoltage category CAT III, 1000 V
    CAT IV, 600 V
    Pollution degree 2

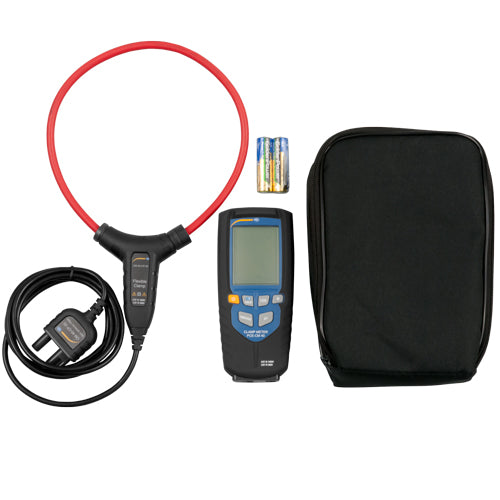

    1 x PCE-CM 40 flexible clamp meter (consists of a control unit and a Rogowski coil)
    2 x 1.5 V AAA batteries
    1 x User manual
