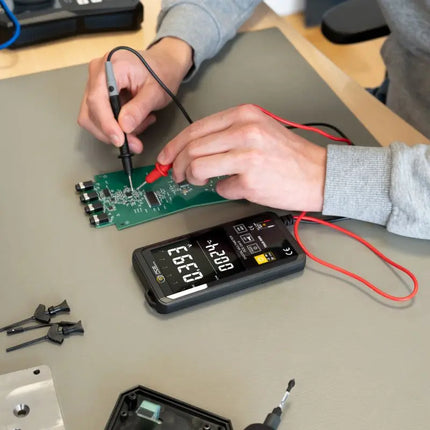

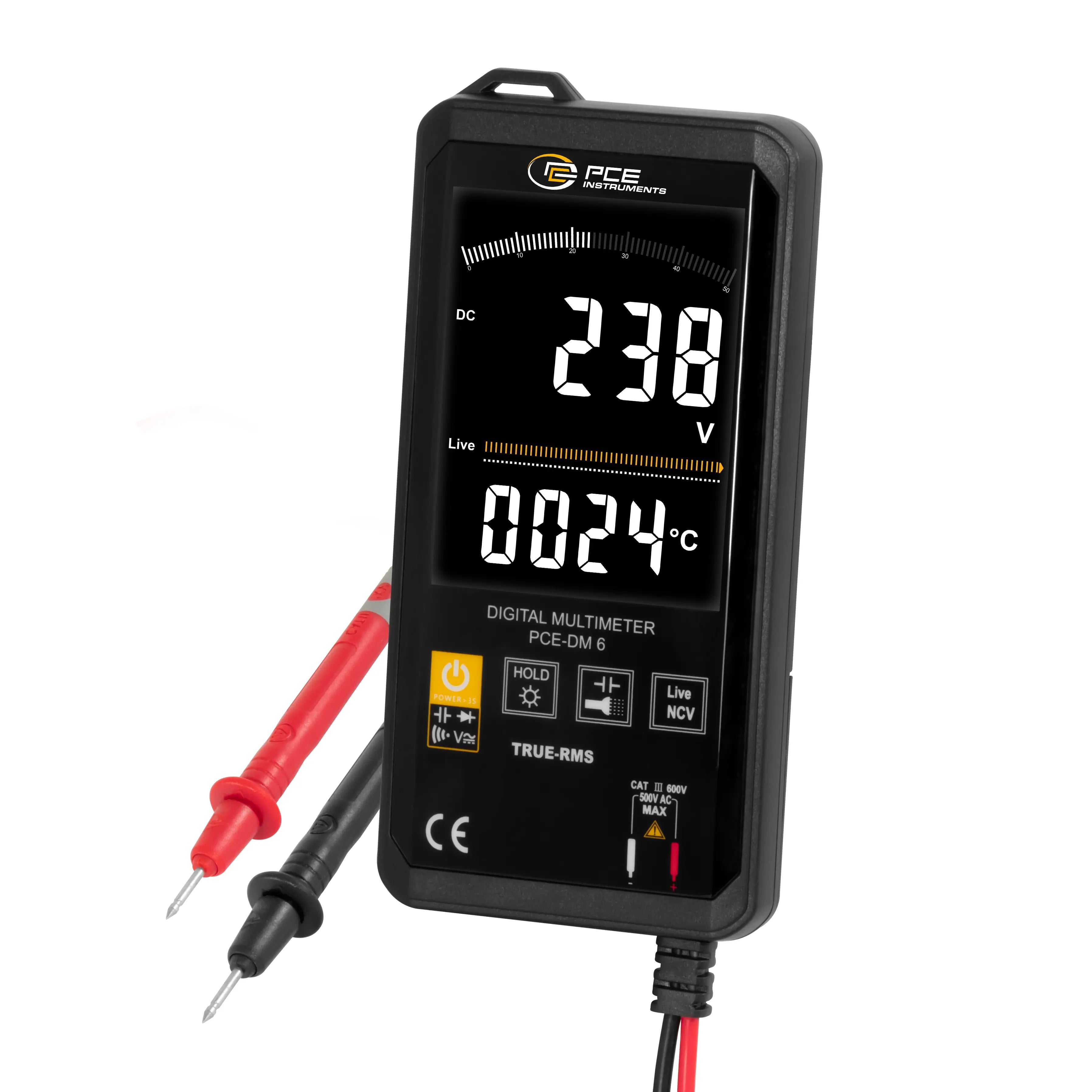

Multimeter PCE-DM 6

Product form

SKU: PCE-DM 6
Barcode: 4250348736147

Delivery 48–72h

€54,49 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoMultimeter
    Peso 0,149 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

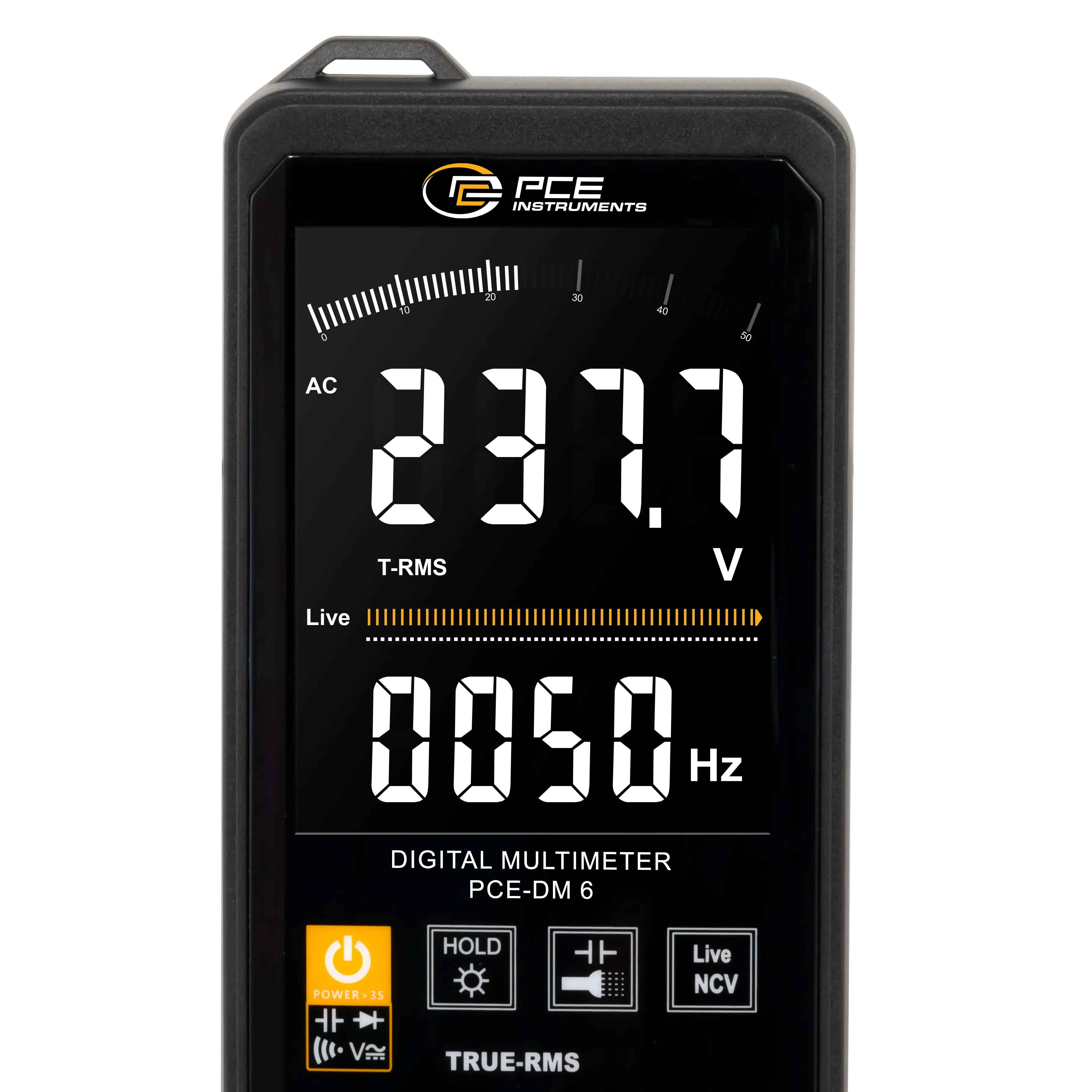

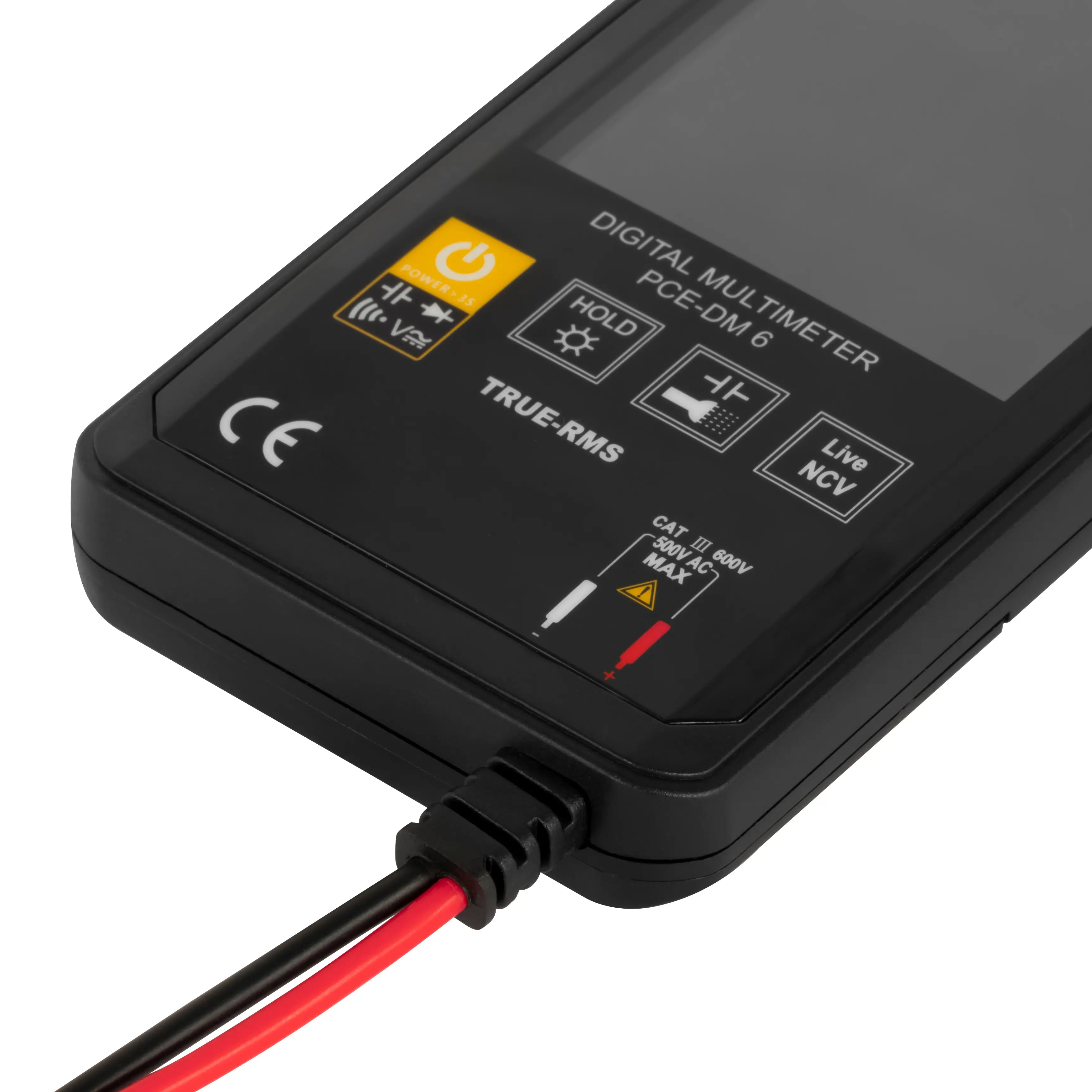

    Multimeter with non-contact voltage detection / TRMS / HOLD function / Ambient temperature display / Live Test function / Large LCD display

    Thanks to its design, this multimeter fits in any trouser pocket, just like a smartphone. Despite its small size, it is equipped with many useful functions. It is a versatile measuring device for AC and DC voltage, resistance, capacitance and frequency measurements. The multimeter offers additional functions such as diode testing, HOLD function and Live Test function. The multimeter also features non-contact voltage detection. It has a built-in 3.1" LCD display.

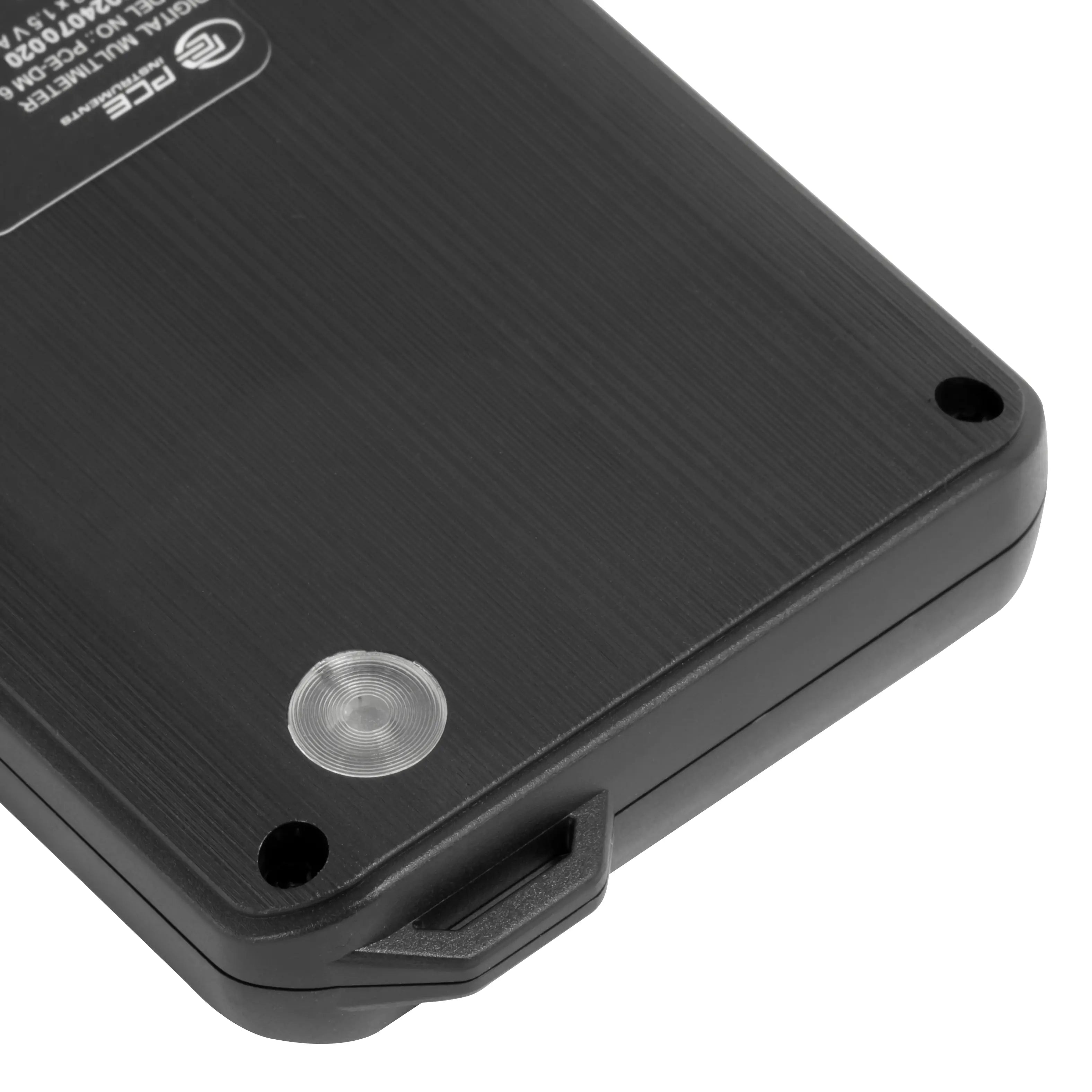

    The flat-design multimeter has an automatic measuring range selection and a display range of 6000 digits. It automatically recognizes the magnitude, so there is no need to change the test leads. The Live Test function allows you to detect live conductors using a test lead. An LED integrated on the back of the device allows working in low light conditions. This multimeter also alerts you when the batteries are running low. To extend battery life, the multimeter automatically switches off after a certain period of inactivity.

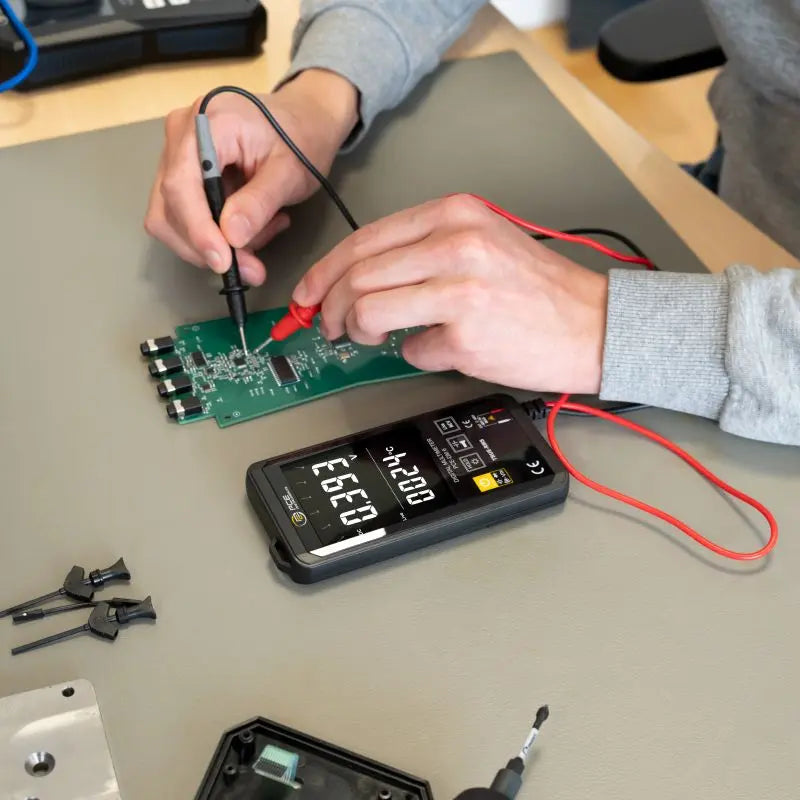

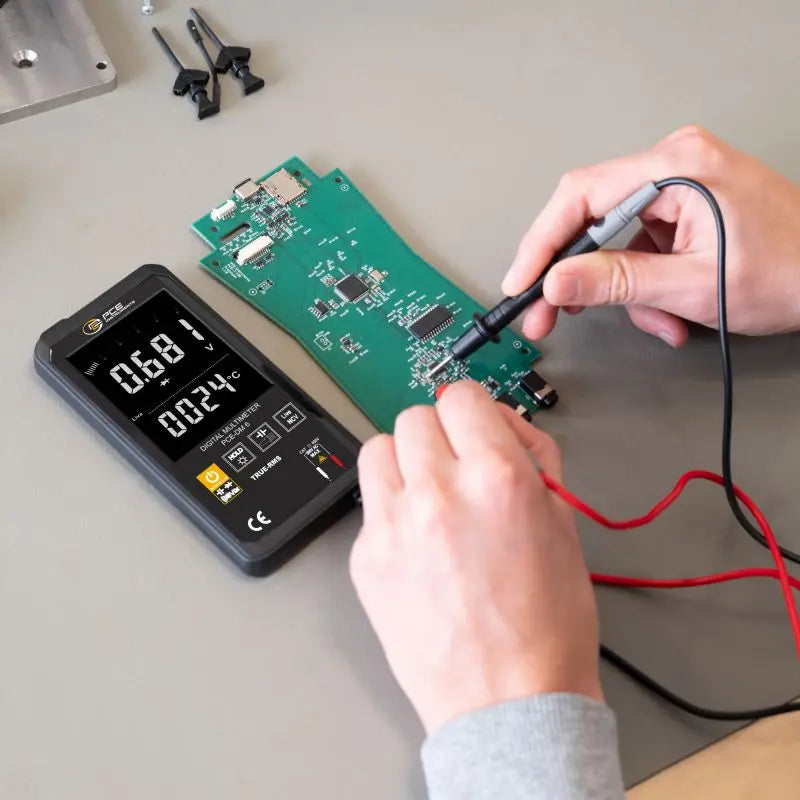

    The multimeter is ideal for use in electronic repairs, household and building wiring, electrical appliance maintenance, laboratory, and training.
    - Display range: 6000 digits
    - Automatic and manual range selection
    - Diode test
    - 3.1" LCD display
    - Live Test function
    - Non-contact voltage detection (NCV)
    - Ambient temperature display
    - Automatic shutdown
    - Small and compact
    DC voltage
    Range 0 ... 6 V
    Resolution 0.001 V
    Accuracy ± (0.8 % of value + 5 digits)
    Overload 1000 V

    DC voltage
    Range 6 ... 60 V
    Resolution 0.01 V
    Accuracy ± (0.8 % of value + 5 digits)

    DC voltage
    Range 60 ... 600 V
    Resolution 0.1 V
    Accuracy ± (0.8 % of value + 5 digits)

    DC voltage
    Range 600 ... 1000 V
    Resolution 1 V
    Accuracy ± (0.8 % of value + 10 digits)

    AC voltage
    Range 0 ... 6 V
    Resolution 0.001 V
    Accuracy ± (0.8 of value + 5 digits)
    Overload 750 V
    Frequency 50 ... 1000 Hz

    AC voltage
    Range 6 ... 60 V
    Resolution 0.01 V
    Accuracy ± (0.8 of value + 5 digits)
    Frequency 50 ... 1000 Hz

    AC voltage
    Range 60 ... 600 V
    Resolution 0.1 V
    Accuracy ± (0.8 of value + 5 digits)
    Frequency 50 ... 1000 Hz

    AC voltage
    Range 600 ... 750 V
    Resolution 1 V
    Accuracy ± (0.8 of value + 10 digits)
    Frequency 50 ... 1000 Hz

    Capacitance
    Range 0 ... 10 nF
    Resolution 10 pF
    Accuracy ± (3.5 % of value + 20 digits)

    Capacitance
    Range 10 ... 100 nF
    Resolution 100 pF
    Accuracy ± (3.5 % of value + 20 digits)

    Capacitance
    Range 0.1 ... 1 µF
    Resolution 1 nF
    Accuracy ± (3.5 % of value + 20 digits)

    Capacitance
    Range 1 ... 10 µF
    Resolution 10 nF
    Accuracy ± (3.5 % of value + 20 digits)

    Capacitance
    Range 10 ... 100 µF
    Resolution 100 nF
    Accuracy ± (3.5 % of value + 20 digits)

    Capacitance
    Range 0.1 ... 1 mF
    Resolution 1 µF
    Accuracy ± (3.5 % of value + 20 digits)

    Capacitance
    Range 1 ... 10 mF
    Resolution 10 µF
    Accuracy ± (3.5 % of value + 20 digits)

    Capacitance
    Range 10 ... 60 mF
    Resolution 100 µF
    Accuracy ± (5 % of value + 3 digits)

    Resistance
    Range 0 ... 600 Ω
    Resolution 0.1 Ω
    Accuracy ± (0.8 of value + 5 digits)

    Resistance
    Range 0.6 ... 6 kΩ
    Resolution 1 Ω
    Accuracy ± (0.8 of value + 3 digits)

    Resistance
    Range 6 ... 60 kΩ
    Resolution 10 Ω
    Accuracy ± (0.8 of value + 3 digits)

    Resistance
    Range 60 ... 600 kΩ
    Resolution 100 Ω
    Accuracy ± (0.8 of value + 3 digits)

    Resistance
    Range 600 ... 6000 kΩ
    Resolution 1 kΩ
    Accuracy ± (0.8 of value + 3 digits)

    Resistance
    Range 6 ... 60 MΩ
    Resolution 10 kΩ
    Accuracy ± (2.5 of value + 3 digits)

    Frequency
    Range 0 ... 10 Hz
    Resolution 0.01 Hz
    Accuracy ± (0.1 % of value + 3 digits)

    Frequency
    Range 10 ... 100 Hz
    Resolution 0.1 Hz
    Accuracy ± (0.1 % of value + 3 digits)

    Frequency
    Range 0.1 ... 1 kHz
    Resolution 1 Hz
    Accuracy ± (0.1 % of value + 3 digits)

    Frequency
    Range 1 ... 10 kHz
    Resolution 10 Hz
    Accuracy ± (0.1 % of value + 3 digits)

    Frequency
    Range 10 ... 100 kHz
    Resolution 100 Hz
    Accuracy ± (0.1 % of value + 3 digits)

    Frequency
    Range 0.1 ... 1 MHz
    Resolution 1 kHz
    Accuracy ± (0.1 % of value + 3 digits)

    Frequency
    Range 1 ... 10 MHz
    Resolution 10 kHz
    Accuracy ± (0.1 % of value + 3 digits)

    Other specifications
    Functions HOLD
    Display type LCD
    Display size 3.1"
    Display range 6000 digits
    Sampling rate 3 readings per second
    Standard IEC 1010
    Automatic shutdown 5 min
    Safety CAT III 600 V
    Max. input impedance 10 MΩ
    Range selection Automatic / Manual
    Diode test Test current: 1 mA
    Max. voltage: 3 V
    Menu language English
    Protection IP20
    Weight 149 g
    Operating conditions 0 ... 40 °C / 0 ... 80 % RH
    Storage conditions   0 ... 40 °C / 0 ... 80 % RH

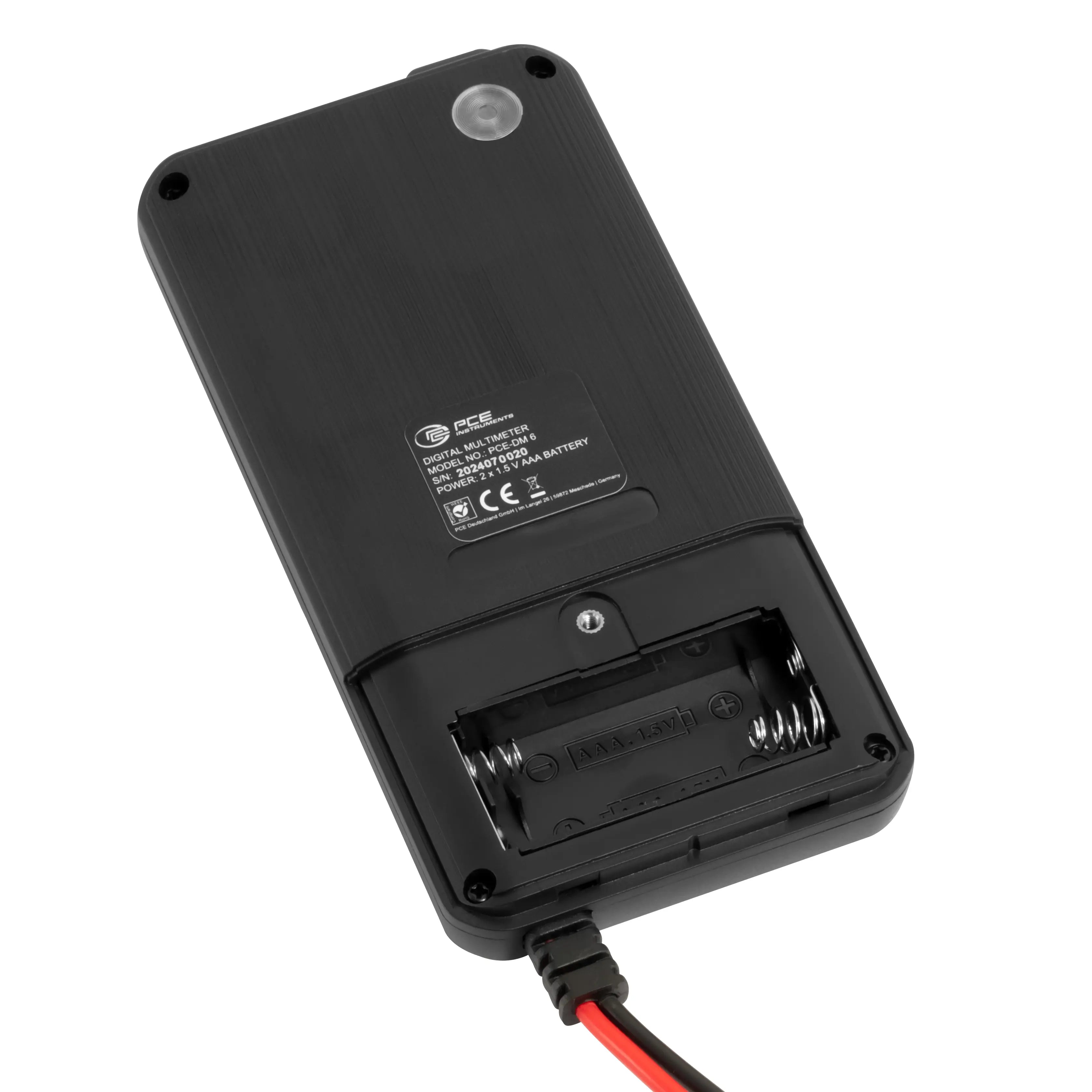

    Power supply 2 x 1.5 V AAA batteries
    Capacity 1200 mAh
    Dimensions 138 x 68 x 18 mm

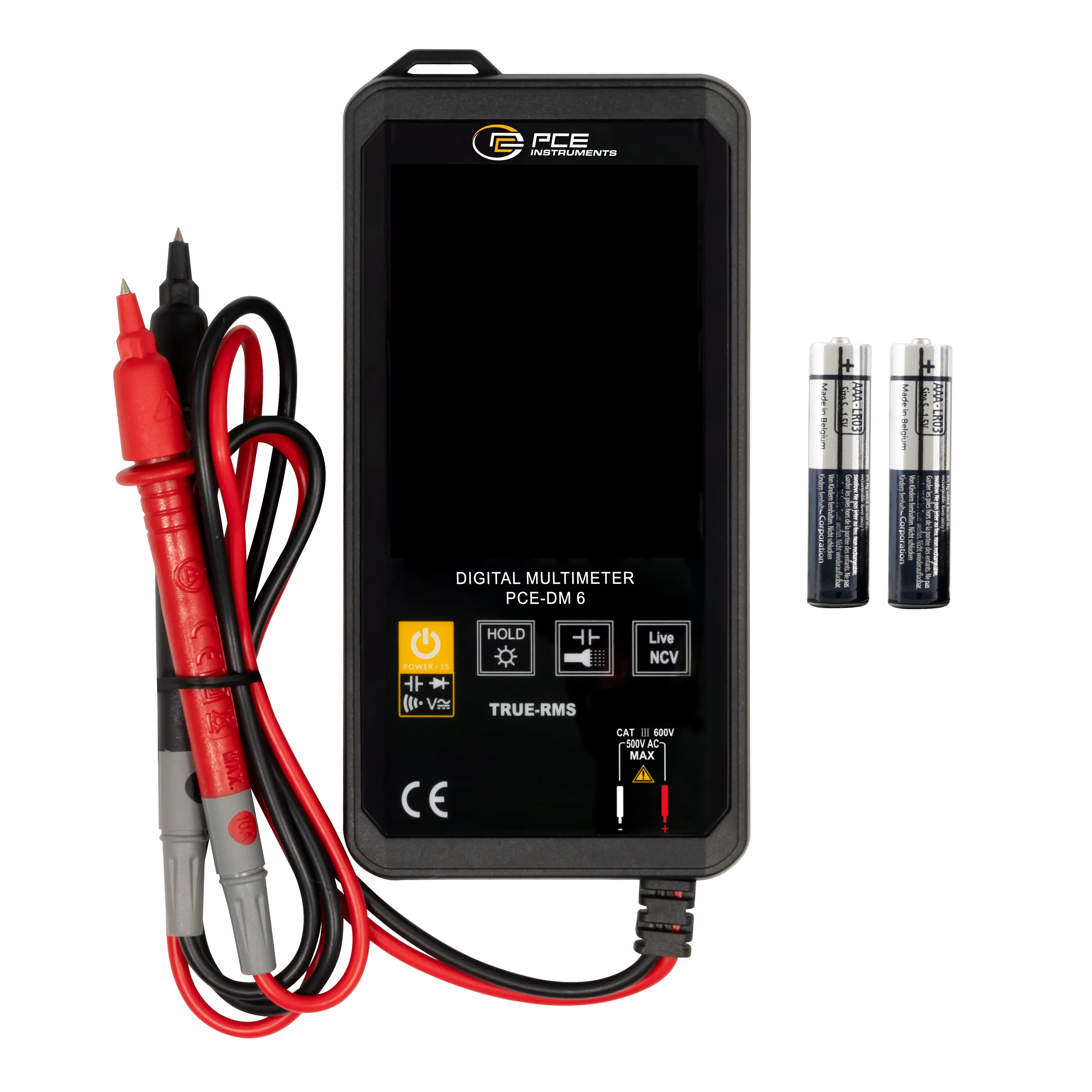

    1 x PCE-DM 6 Multimeter

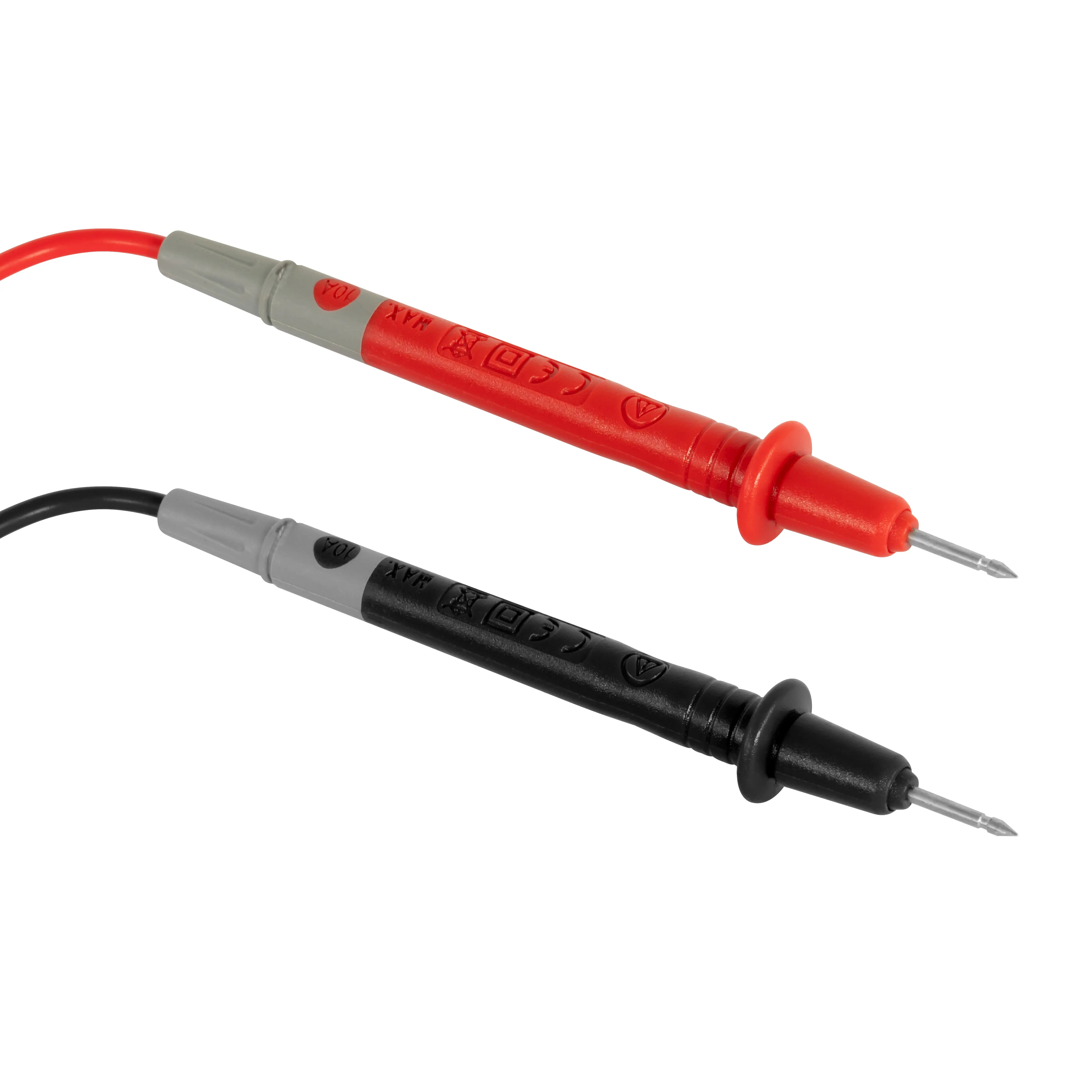

    1 x Test leads
    2 x 1.5 V AAA batteries
    1 x Instruction manual
