UV Microscope PCE-MM 200UV

Product form

SKU: PCE-MM 200UV
Barcode: 4250348710147

Delivery 48–72h

€177,04 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoMicroscope
    Peso 0,09 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    UV microscope for improved contrast and resolution

    Up to 200x magnification / 1600 x 1200 pixels / Measuring function on the microscope

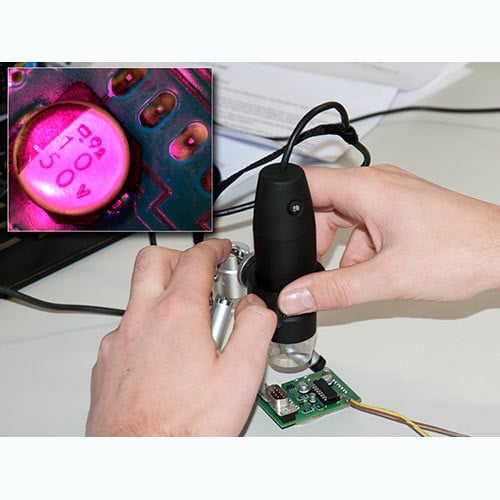

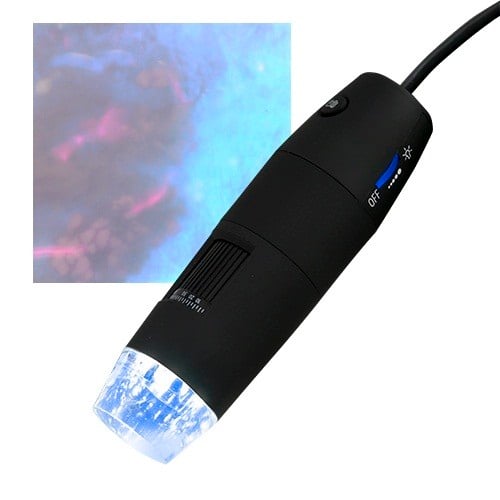

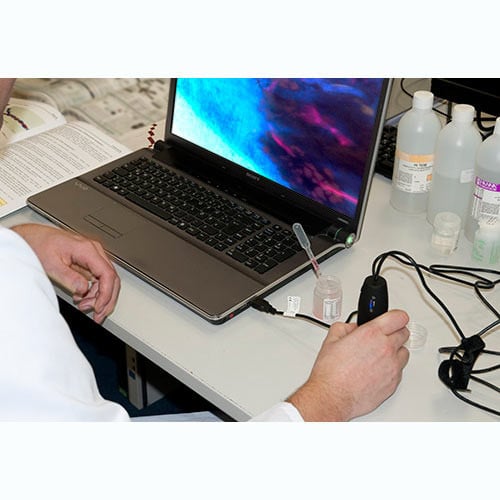

    The UV microscope shows you objects with up to 200x magnification. The UV microscope illuminates objects through 8 UV LEDs circularly arranged around the optics. The UV illumination of this microscope significantly improves resolution compared to a USB microscope with conventional illumination. The short-wavelength illumination in the UV microscope achieves, as mentioned above, better resolution and a significant improvement in contrast. Due to the high proportion of non-visible light, the object illumination with the UV microscope appears very dark. However, this non-visible light is captured and processed by the camera integrated into the UV microscope. The PCE-MM 200UV UV microscope has a 2m long USB cable. You can use this microscope very flexibly in schools, education, science, and professional settings to examine plants, insects, or other small animals. Another field of application for the UV microscope is surface inspection, philately, and numismatics. The image output of the UV microscope is via the laptop or computer screen. This form of image output from the UV microscope is optimal for people wearing glasses or for presentations to a group.

    Introduction to the UV microscope

    The use of the UV microscope allows many tasks to be performed more effectively, while maintaining high precision. This is why a UV microscope can be used wherever strict controls and precise observations and checks are required, as well as in areas where mechanical and assembly work is carried out. The UV filter also allows use in unusual conditions, especially with UV light. The results can be transferred to a PC or laptop via a USB connection, where they can be displayed on screen in a much easier and less tiring way for the eyes. The high precision and image quality also stand out compared to conventional microscopes. Captured images and videos have high resolution and excellent quality. This is particularly advantageous in defect detection and surface fault finding, and in quality control. The use of a UV microscope allows the user to view the object in much more detail from different angles, magnifications, and lighting. Capturing and storing quality images while examining an object can demonstrate the need for repair or the good or bad quality of a particular object. This makes such a UV microscope useful not only in the laboratory, in industry or at home, but it is also the ideal tool for anyone involved in production, appraisals, repairs, quality control and similar work.

    _x000D_ - Continuous microscope from 10 to 200 magnifications
    _x000D_ - Microscope with UV LED illumination
    _x000D_ - Data transfer from microscope to PC and power supply via USB 2.0
    _x000D_ - On-screen resolution of 1280 x 1024 px.
    _x000D_ - Frame rate: 30 frames per second
    _x000D_ - Image and video recording function
    _x000D_ - Small construction microscope
    _x000D_ - Includes stand and software
    _x000D_ - High precision lens
    _x000D_ - Software that allows distance measurement_x000D_
    _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
    _x000D_

    Resolution

    _x000D_

    1280 x 1024 pixels

    _x000D_

    Magnification

    _x000D_

    Continuous from 10 to 200 magnifications

    _x000D_

    Field of view

    _x000D_

    Min.: 19 mm x 1.5 mm
    Max.: 82 mm x 65 mm
    (min. working distance at 17 mm)

    _x000D_

    Colors

    _x000D_

    24 bit RGB

    _x000D_

    Image sensor

    _x000D_

    2 Megapixel

    _x000D_

    Focus range

    _x000D_

    Manual from 8 mm to 400 nm

    _x000D_

    Light source

    _x000D_

    8 x UV LED

    _x000D_

    Frame rate

    _x000D_

    30 images

    _x000D_

    Video format

    _x000D_

    AVI

    _x000D_

    PC connection

    _x000D_

    USB 2.0

    _x000D_

    Power supply

    _x000D_

    USB 2.0

    _x000D_

    System requirements

    _x000D_

    From Windows 98

    _x000D_

    Dimensions

    _x000D_

    110 x 33 mm

    _x000D_

    Weight

    _x000D_

    90 g

    _x000D_ 1 x UV microscope
    1 x Stand
    1 x Mini-tripod
    1 x USB interface cable
    1 x Software
    1 x User manual
