PCE-MM 800 USB Microscope

Product form

SKU: PCE-MM 800
Barcode: 4250348716132

Delivery 48–72h

€84,82 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica
    Especificaciones del producto
    Tipo de productoMicroscope
    Peso 0,25 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)
    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones
    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

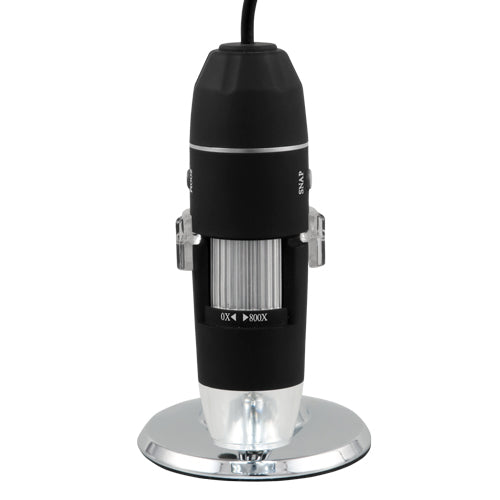

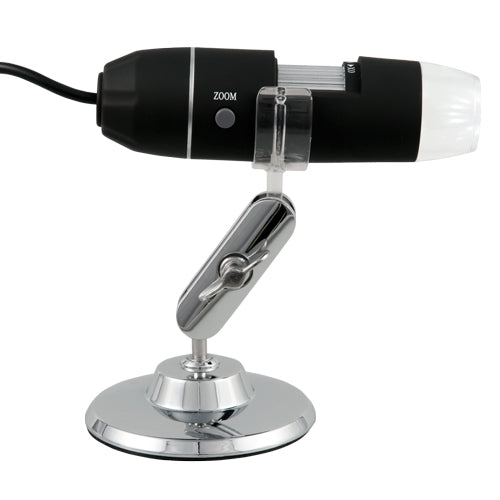

    USB Microscope

    USB microscope for viewing on a PC / Max. resolution 1600 x 1200 pixels / Up to 1600x magnification / Includes stand / 8 high-brightness LEDs for optimal illumination

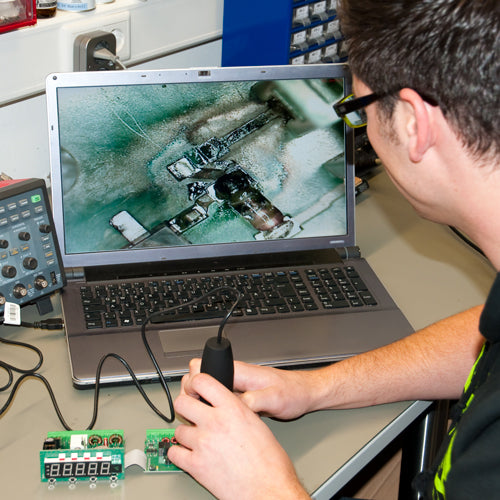

    With the USB microscope, you can view a magnified object on a PC screen. You can connect the microscope via the USB interface to your computer and comfortably examine a magnified object, even with multiple people. The USB microscope has eight LEDs that provide optimal brightness. The illumination is the same from all sides and therefore provides sharp, high-contrast images, even when external conditions are unfavorable or changing. Depending on the task and environmental conditions, you can adjust the brightness of the LEDs to avoid possible overexposure.

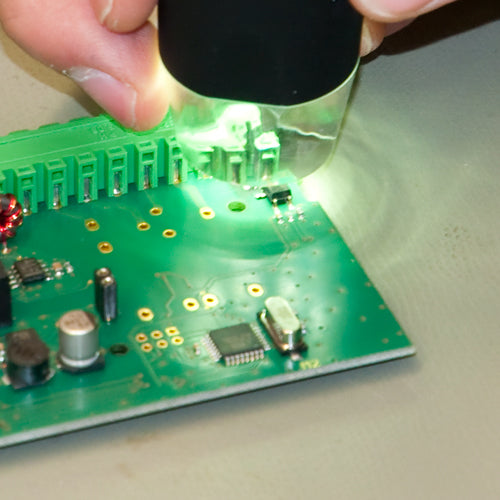

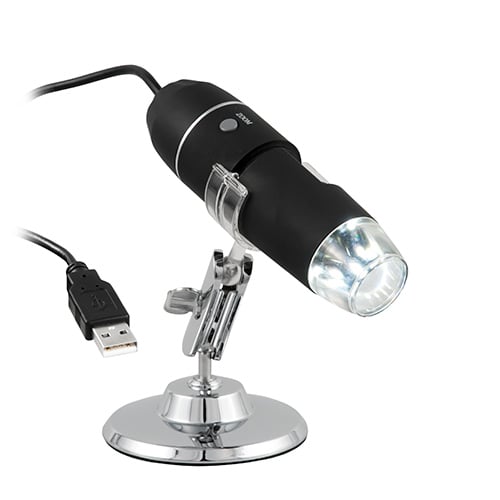

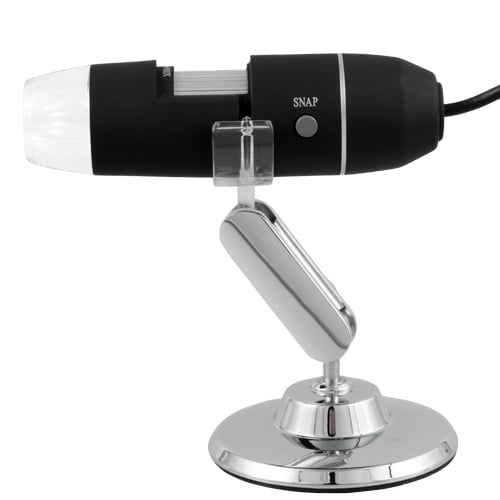

    You can individually adjust the magnification of the USB microscope. You can inspect samples with a zoom between 200x and 1600x magnification. The default resolution of the USB microscope is 640 x 480 pixels. The image and video resolution is up to 1600 x 1200 pixels. You can enlarge the object to be inspected up to five times with the digital zoom. Optical inspection of very large samples is also not a problem for the USB microscope, as you simply place it on the material. A transparent spacer ring helps to ensure the correct position. To work with both hands free, you can attach the USB microscope to an optional stand. The USB microscope can be used in both industrial and private sectors.

    Introduction to the USB microscope

    With a USB microscope, it is possible to view small, magnified objects on an external screen. The traditional microscope, which requires looking through an eyepiece with one eye, is increasingly being replaced by USB microscopes. A USB microscope is easier to handle and offers many possibilities for precision and visualization. Viewing is more comfortable and less tiring for the eye, compared to the classic light microscope. In addition, it allows multiple people to view the image simultaneously. At the same time, there is the possibility of saving image and video material. Therefore, the examined projects offer many possibilities for post-processing and archiving. Numerous functions are available for image processing.

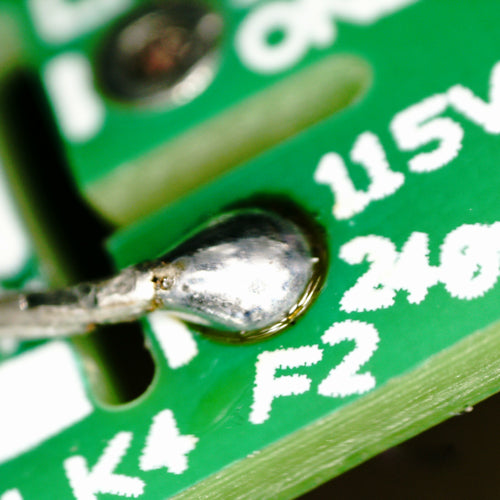

    The USB microscope is connected to a computer, which also serves as a power source. A USB microscope is particularly suitable for the inspection of electronic components, circuit boards, and in biology and precision mechanics. As a general rule, you can individually adjust the magnification on the USB microscope. Even in low light environments, you can regulate the brightness of the camera through the integrated LED lights. The captured images and videos have good quality thanks to the high resolution. Defects on surfaces, as well as quality controls, are more recognizable and feasible. An object can not only be viewed from one perspective, but different angles allow many observation possibilities.

    _x000D_ - Zoom: Up to 800x magnification
    _x000D_ - High-brightness LEDs
    _x000D_ - Max. resolution: 1600 x 1200 pixels
    _x000D_ - Image and video recording
    _x000D_ - Includes software and stand
    _x000D_ - Power supply and data transfer via USB
    _x000D_
    Sensor CMOS
    Focus range 10 mm ... wide angle
    Resolution
    (Image and video)    		 Standard: 640 x 480
    Maximum: 1600 x 1200
    Trigger Via software or device

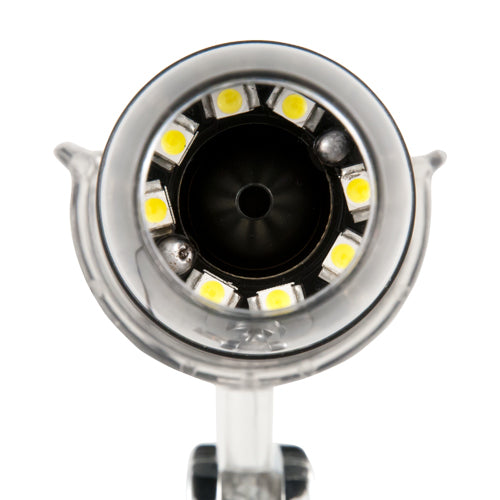

    Light source 8 integrated LEDs
    Frame rate 30 fps at 600 lux illumination
    Zoom Up to 800x
    Interface USB
    Power supply 5 V DC via USB port
    Digital zoom 5x magnification
    Brightness adjustment Manual
    Language English
    Dimensions 112 x 33 mm
    Weight 250 g
    _x000D_
    _x000D_ 1 x USB Microscope PCE-MM 800
    _x000D_ 1 x Stand
    _x000D_ 1 x Software

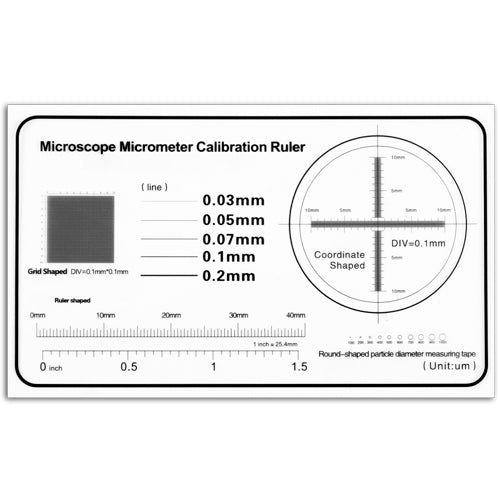

    _x000D_ 1 x Calibration standard
    _x000D_ 1 x User manual
