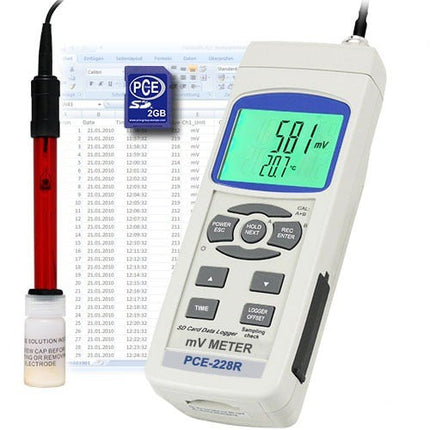

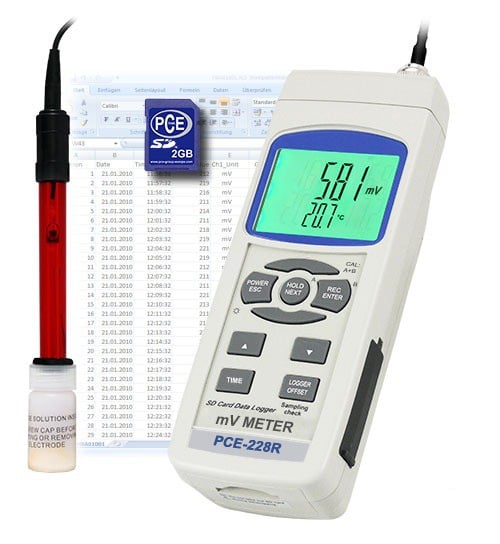

PCE-228-R Redox Meter

Product form

SKU: PCE-228-R
Barcode: 4250348702241

Delivery 48–72h

€461,01 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoRedox meter
    Peso 0,49 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Handheld meter for Redox, pH and temperature / large, easy-to-read display / SD memory card (1 ... 16 GB),
    values are saved as Excel file / RS-232 interface and optional software for real-time data transmission
    The Redox meter is an easy-to-use handheld device for measuring mV / pH / °C. Redox values can be stored directly on the SD memory card (Excel format) or transmitted in real time to a PC or laptop via the RS-232 interface. We offer the software and RS-232 data cable as optional components for this purpose. Temperature compensation (function available only for pH measurement) is performed manually or automatically by means of a temperature sensor included in the delivery. All these features provide highly reliable pH / Redox measurement.
    The Redox meter has three-point calibration. With the combined meter, Redox value, temperature, or pH value can be determined. For the latter measurement parameter, an additional pH electrode must be ordered. We recommend the PE-03 electrode. The Redox meter is powered by batteries (6 x 1.5 V batteries are included in the delivery).
    - Very good quality/price ratio
    - SD memory card (1 ... 16 GB)
    - Stored data is saved directly in Excel format on the SD memory card (no additional software required)
    - RS-232 interface for real-time data transmission
    - Measures Redox, pH value, and temperature
    - High accuracy
    - Low battery indication
    - Large LCD display
    - Adjustable measurement rate
    - Easy to use
    - Robust housing
    - Includes ORP-14 Redox electrode and stainless steel temperature sensor
    - Automatic calibration
    - Automatic or manual temperature compensation (only for pH measurement, not for Redox measurement)
    - BNC connection
    - Suitable for on-site Redox measurements in laboratories
    - Additional Redox electrode
    Redox Range -1999 ... 0 ... 1999 mV
    Resolution 1 mV
    Accuracy ±(0.5 % + 2d)

    pH Range

    0.00 ... 14.00 pH (only with optional pH electrode)

    Resolution 0.01 pH
    Accuracy ±(0.02 pH + 2d)

    Temperature Range 0.0...65.0 °C (temperature sensor only)
    Resolution 0.1 °C
    Accuracy (@20°C) ±0.5 °C

    Calibration Automatic three-point calibration
    Temperature Compensation      Automatic from 0 ... 65°C or manual between 0 and 100°C by removing the temperature sensor
    Electrode ORP-14 Redox electrode, cable length 1m and BNC connector
    Temperature Range 0 ... 60 ºC
    Measurement Rate Adjustable from 1 second to 8 hours 59 min. 59 sec.
    Display 52 x 38 mm LCD
    Memory 1 ... 16 GB SD card
    Interface RS-232
    Software Optional
    Power Supply 6 x 1.5 V AA batteries / 9 V AC adapter (optional)
    Environmental Conditions 0...50 °C max. 85 % R.H.
    Dimensions 177 x 68 x 45 mm
    Weight 490 g

    1 x Redox Meter PCE-228 R
    1 x ORP-14 electrode
    1 x SD memory card (2 GB)
    1 x Temperature sensor
    6 x 1.5 V AA batteries
    1 x User manual
