CO2 meter PCE-WMM 5

Product form

SKU: PCE-WMM 5
Barcode: 4250348731227

Delivery 48–72h

€351,81 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCO2 Meter / CO Meter
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

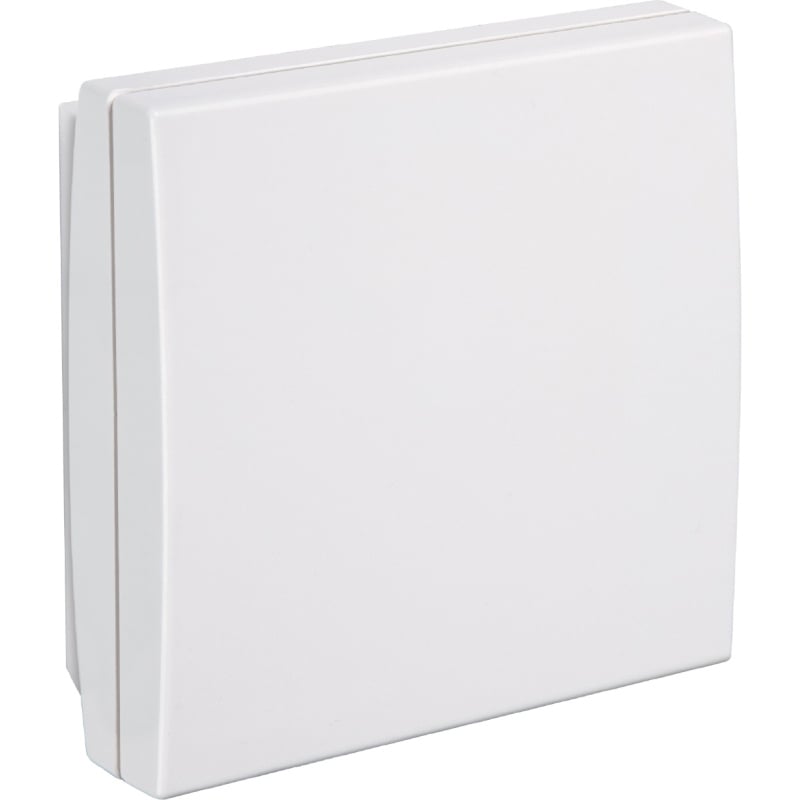

    Indoor CO2 meter and measuring transducer, self-calibrating, with multi-range switching and active / controllable output
    Maintenance-free indoor sensor with active/controllable output, automatic calibration (deactivatable), in an attractive plastic housing with a snap-on cover, optionally with a traffic light display (five colored LEDs), for determining the CO2 content of the air (0...2000 ppm / 0...5000 ppm). The measuring transducer converts the measured values into a standardized 0-10 V or 4...20 mA signal (switchable).
    The sensor is used in offices, hotels, conference rooms, homes, commercial premises, etc. and serves to evaluate the indoor climate. This allows for energy-saving and needs-based space ventilation, thereby reducing operating costs and increasing well-being.
    CO2 measurement is performed using an optical NDIR sensor (non-dispersive infrared technology). The detection range is adjusted based on standard applications, such as monitoring homes and conference rooms.
    - For indoor use
    - CO2 range: 0 .... 2000 ppm / 0 ... 5000 ppm (switchable)
    - Output: 0-10 V / 4 ... 20 mA (switchable)
    - Includes relay
    PCE-WMM 5
    Range 0 .... 2000 ppm / 0 ... 5000 ppm (switchable)
    Output 0-10 V / 4 ... 20 mA (switchable)
    Equipment Relay

    Power supply 24 V AC/DC (±10 %)
    Power consumption < 1.5W / 24 V DC typical;
    < 2.9 VA / 24 V AC typical; Peak current 200 mA
    Sensor Optical NDIR sensor,
    with manual calibration (via zero button),
    with automatic calibration (deactivatable via DIP switch)
    Accuracy Typical ±30 ppm ±3 % of the value
    Temperature dependence      ±5 ppm / °C or ±0.5 % of the measured value / °C (whichever is greater)
    Pressure sensitivity ±0.13 % / mm Hg
    Long-term stability <2 % in 15 years
    Gas exchange Diffusion
    Ambient temperature 0 ... 50 °C
    Warm-up time Approx. 1 hour
    Response time < 2 minutes
    Electrical connection 0.14 - 1.5 mm2, screw terminals
    Housing ABS plastic, pure white (similar to RAL9010)
    Dimensions 85 x 85 x 27 mm
    Mounting Wall mount or flush-mounted box
    Protection class III (according to EN 60730)
    Protection type IP 30 (according to EN 60529)
    Standards CE conformity, electromagnetic compatibility according to EN 61 326, EMC directive 2014 / 30 / EU, low voltage directive 2014 / 35 / EU
    1 x PCE-WMM 5 CO2 Meter
    1 x Relay
    1 x Instruction manual
