Description
CO2 Meter / Measures temperature, humidity, atmospheric pressure and CO2 concentration in the air / Alarm threshold adjustment / Acoustic and visual alarm / Software

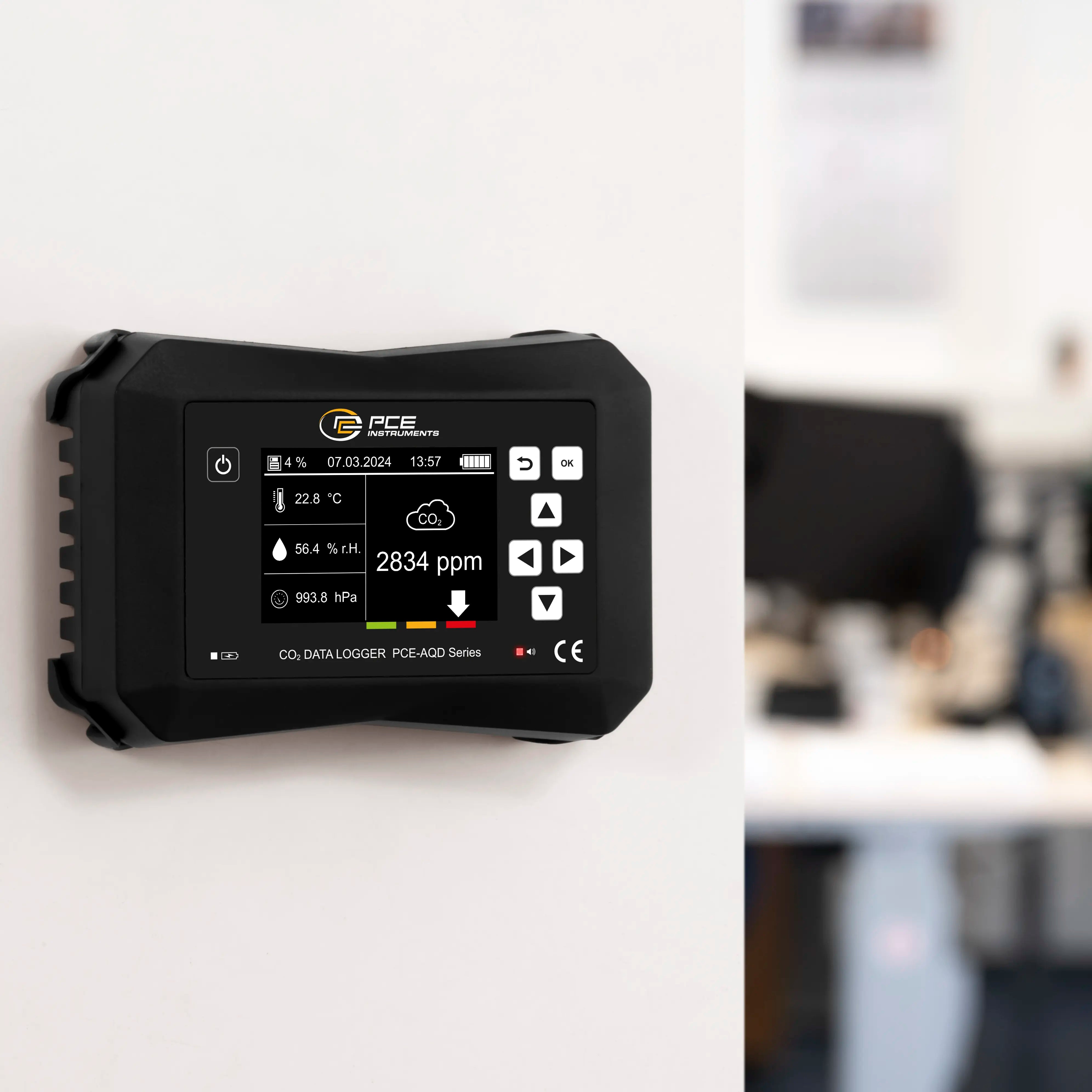

The CO2 meter has been designed for prolonged monitoring of climatic conditions in offices, classrooms, or auditoriums. The CO2 meter integrates various sensors. These include a sensor that measures carbon dioxide up to 40,000 ppm, a temperature sensor that measures between 0 and +50 °C, a sensor that measures air humidity between 0 and 100% RH, and a barometer that measures with a range between 300 and 1250 hPa. Thanks to the different sensors integrated, the CO2 meter can be used in multiple applications. You can view the values on the digital display of the CO2 meter. Additionally, it includes a "Good / Moderate / Bad" rating for the CO2 concentration in the air.

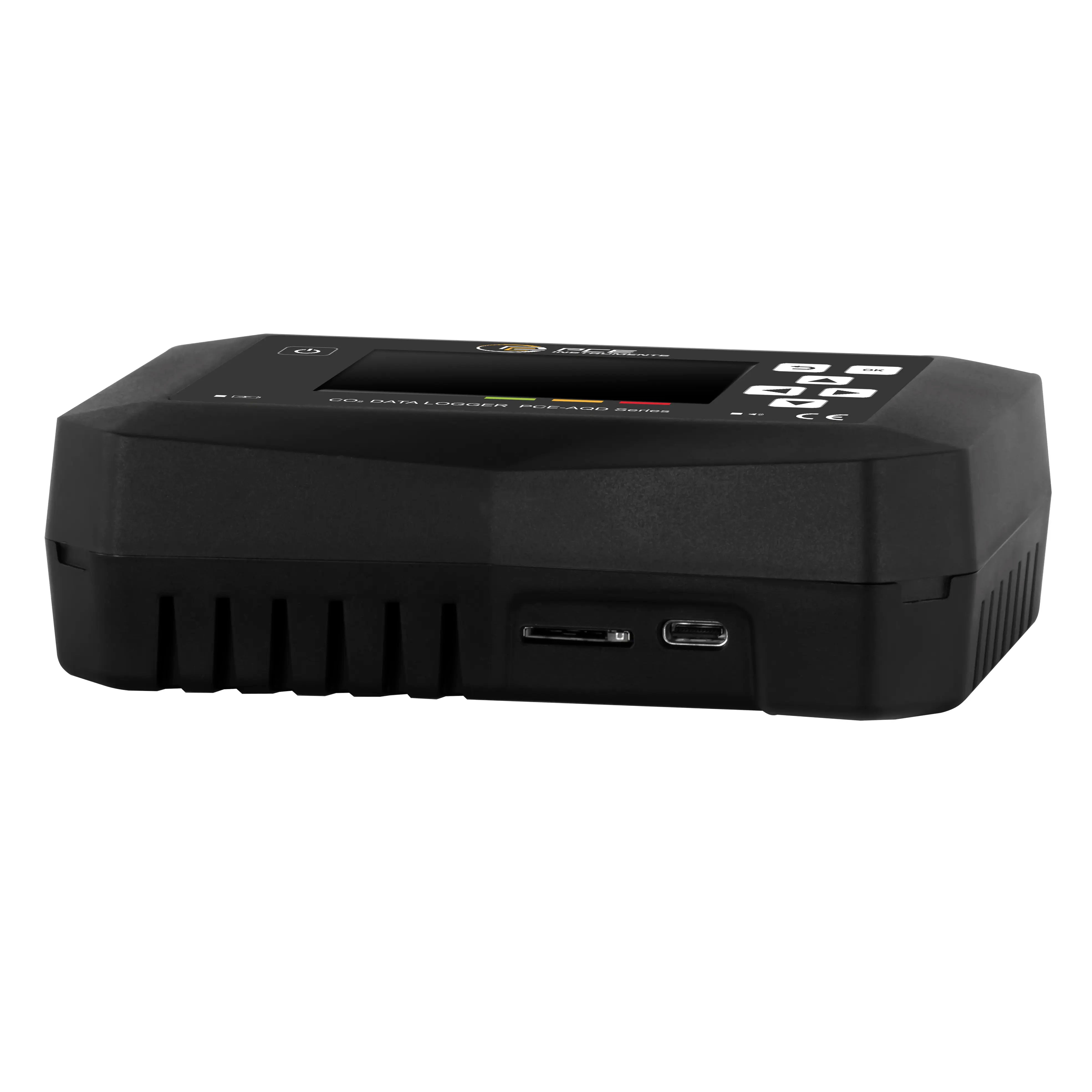

While measuring, the CO2 meter can also record values. The data is stored on the micro SD memory card as a *.csv file. This allows you to import the values from the CO2 meter into any internal database. Through the software, you can view the data graphically or in table format.
The CO2 meter has an alarm function. This function allows individual adjustment of threshold values for each sensor. Once the set threshold value is exceeded, the CO2 meter will alert acoustically and visually. When the value drops back below the threshold, the alarm automatically turns off.

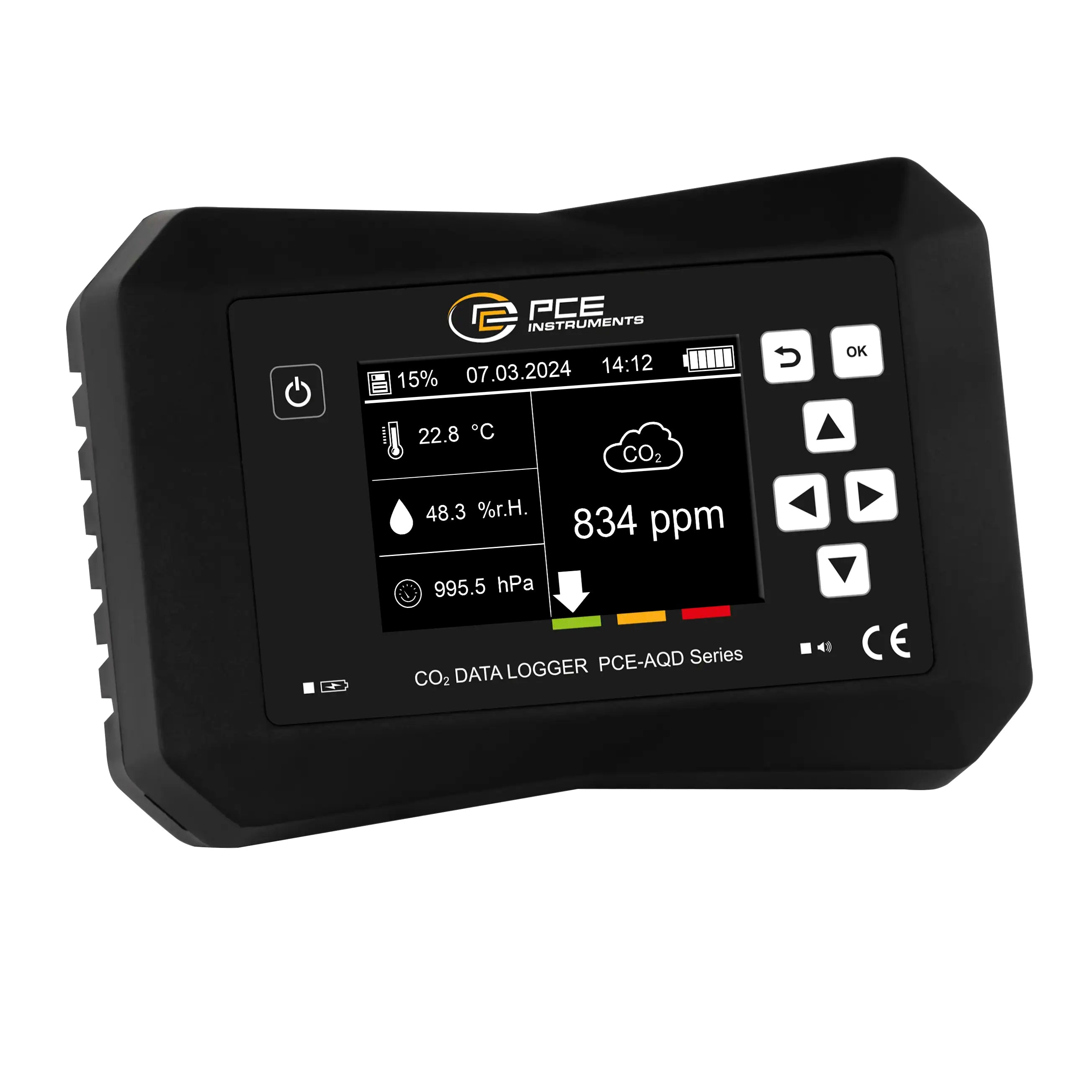

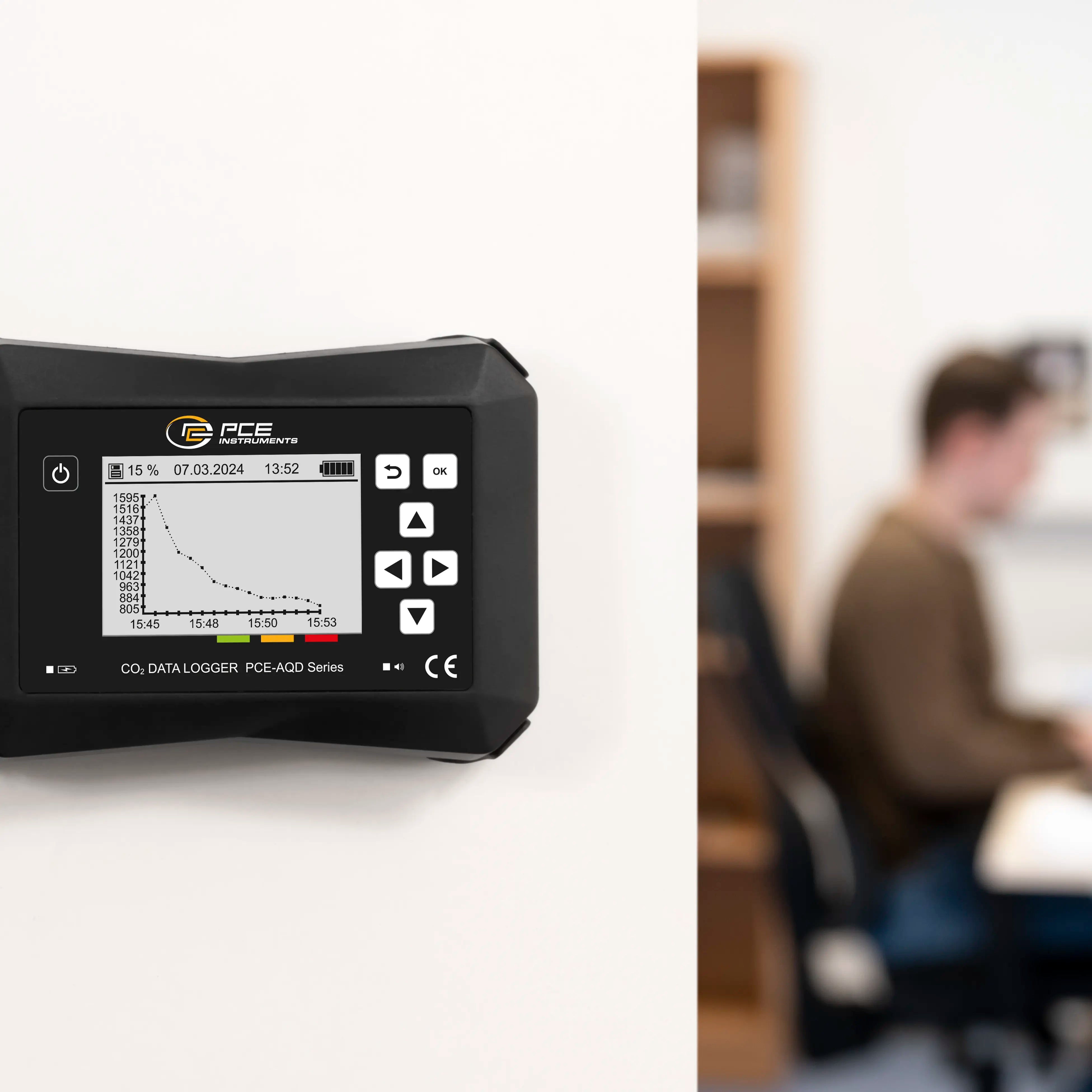

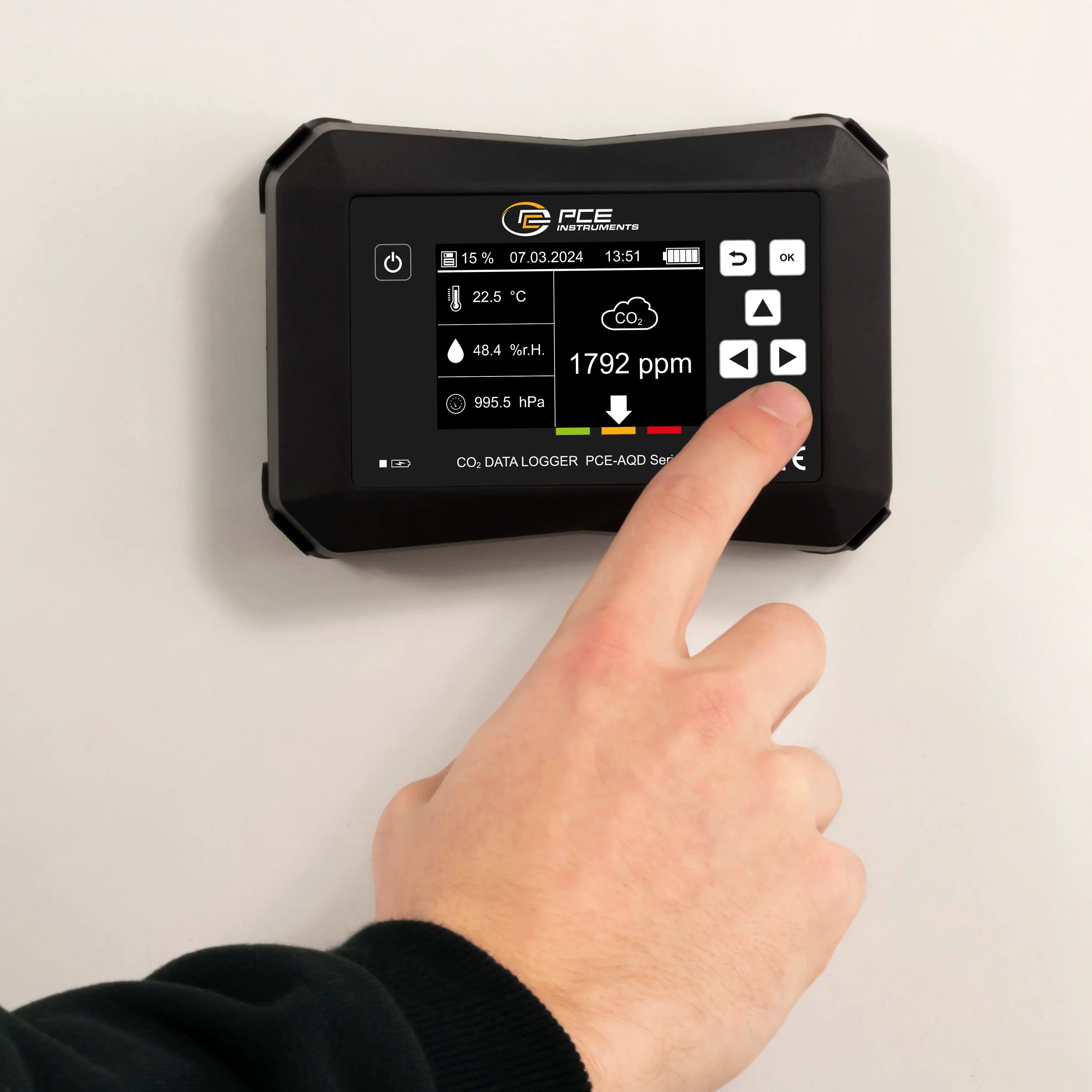

You can view the measurement values on the 2.7" display of the CO2 meter. For a more detailed analysis of the latest values, you can change the display mode and view the history. The low-power digital display increases the autonomy of the CO2 meter's battery. Depending on the adjusted recording rate, you can operate the CO2 meter for up to 10 months before recharging the battery. You can also continuously power the device with the USB charging cable.
- CO2 range up to 40,000 ppm
- Temperature and humidity sensor
- Atmospheric pressure indication
- CO2 and absolute pressure sensor
- Data export in *.csv format
- Digital display with history indication
- CO2 rating: Good / Moderate / Bad
- Battery life of up to 10 months
- Memory: 32 GB
- Alarm threshold values
| CO2 |
|
| Range |
0 ... 40,000 ppm |
| Resolution |
1 ppm |
| Accuracy |
±(40 ppm + 5 % of value) @ 400 ... 5000 ppm @ 25 ºC (77 ºF) |
|
| Air humidity |
|
| Range |
0 ... 80 % RH |
| Resolution |
0.1 % RH |
| Accuracy |
±1.5 % RH |
|
| Air humidity |
|
| Range |
80 ... 100 % RH |
| Resolution |
0.1 % RH |
| Accuracy |
±2 % RH |
|
| Atmospheric pressure |
|
| Range |
300 ... 1250 hPa |
| Resolution |
0.1 hPa |
| Accuracy |
±50 hPa @ -20 ... 75 ºC / 750 ... 1100 hPa |
|
| Temperature in ºC |
|
| Range |
0 ... +20 ºC |
| Resolution |
0.1 ºC |
| Accuracy |
±0.15 ºC |
|
| Temperature in ºC |
|
| Range |
20 ... +50 ºC |
| Resolution |
0.1 ºC |
| Accuracy |
±0.1 ºC |
|
| Temperature in ºF |
|
| Range |
32 ... 68 ºF |
| Resolution |
0.1 ºF |
| Accuracy |
±0.15 ºF |
|
| Temperature in ºF |
|
| Range |
68 ... +122 ºF |
| Resolution |
0.1 ºF |
| Accuracy |
±0.1 ºF |
|
| Other specifications |
|
| Display type |
Digital e-paper |
| Screen size |
2.7" |
| Memory |
32 GB micro SD card |
| Interface |
USB-C |
| Battery life |
10 months with logging rate: |
|
Temperature: 24 hours |
|
Air humidity: 24 hours |
|
Atmospheric pressure: 24 hours |
|
CO2: 24 hours |
| Alarm |
Acoustic / Visual |
| Menu language |
German / Spanish / French / Dutch / English / Italian / Polish / Turkish |
| IP protection |
IP30 |
| Power supply |
1 x 7.4 V DC Li-Ion battery |
| Capacity |
3400 mAh |
| Power adapter |
5 V / 1.5 A |
| Protection |
IP30 |
| Operating conditions |
0 ... +50 ºC / 0 ... 100 % RH |
| Storage conditions |
-20 ... +60 ºC / 0 ... 100 % RH |
| Dimensions |
130 x 90 x 40 mm |
| Weight |
280 g |
1 x PCE-AQD 50A CO2 meter
1 x USB-C cable
1 x 32GB memory card

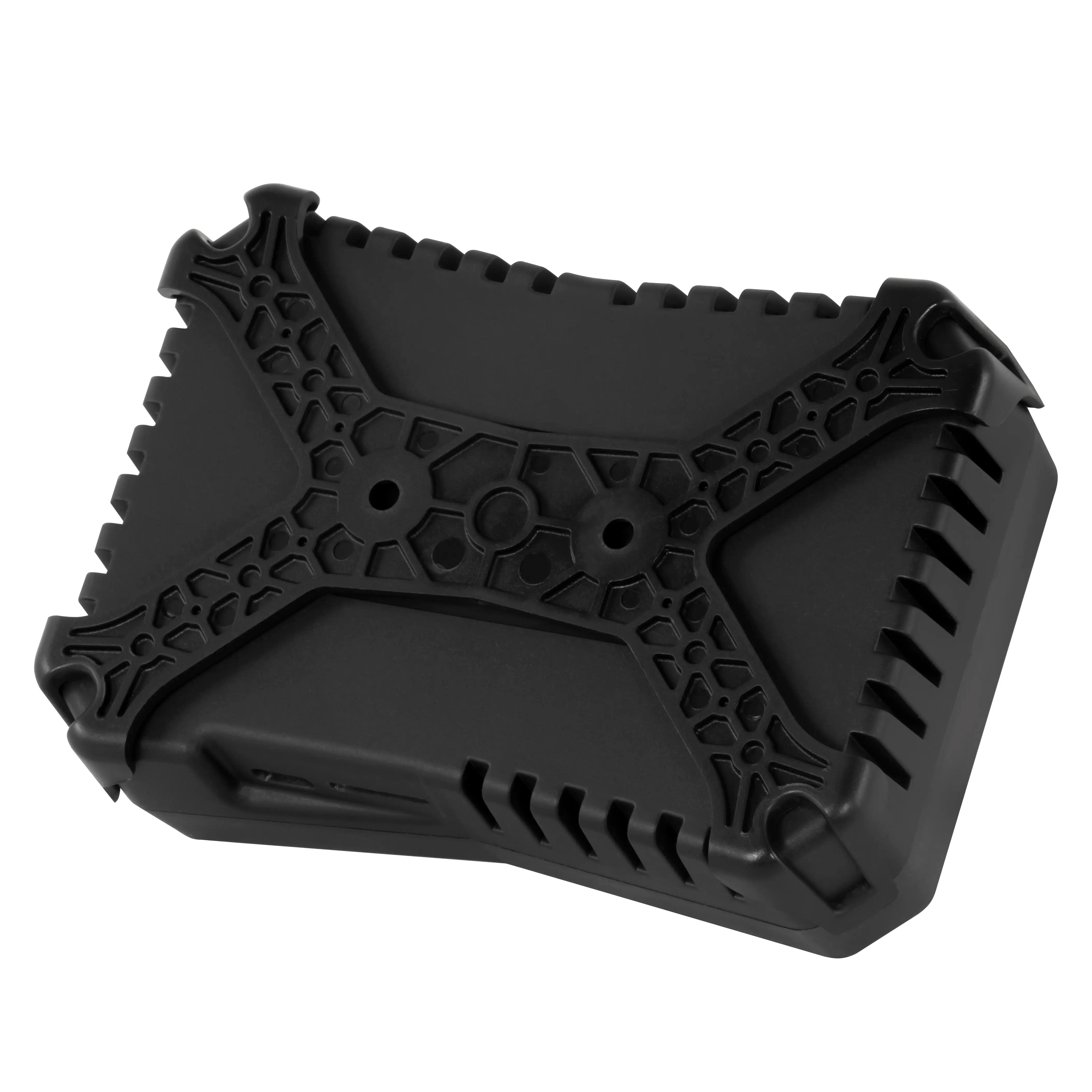

1 x Wall mounting kit
1 x Software
1 x Instruction manual
