PCE-LMD 10 Lux Meter

Product form

SKU: PCE-LMD 10
Barcode: 4250348728326

Delivery 48–72h

€274,13 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoLuxmeter
    Peso 0,32 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Lux meter with external sensor / 4 Hz measuring rate / Range: 0 ... 400,000 lux / Micro USB interface / Units: Lux and Footcandle / Optional: ISO calibration certificate
    _x000D_

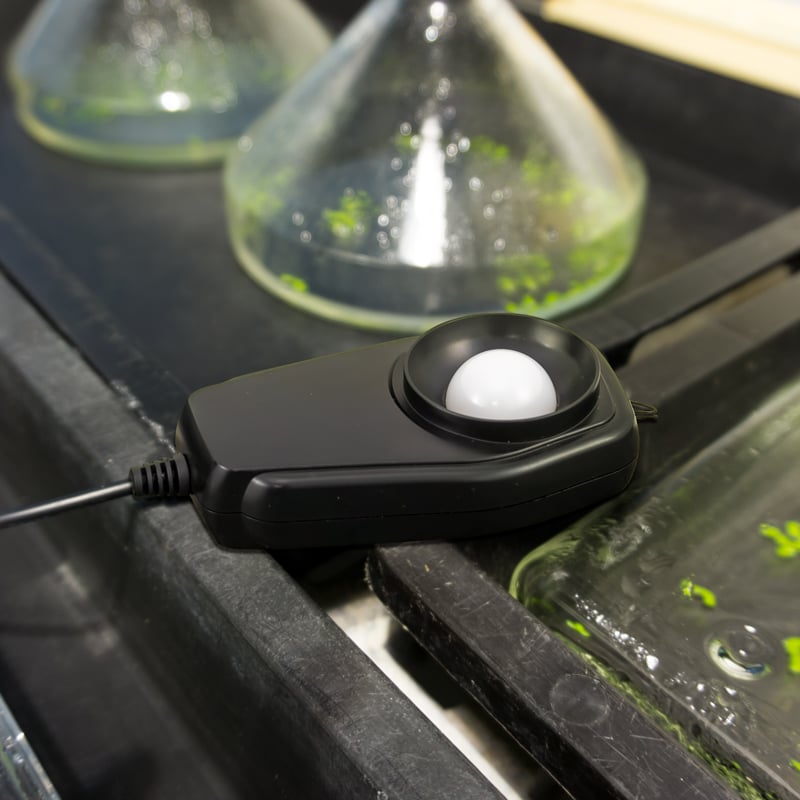

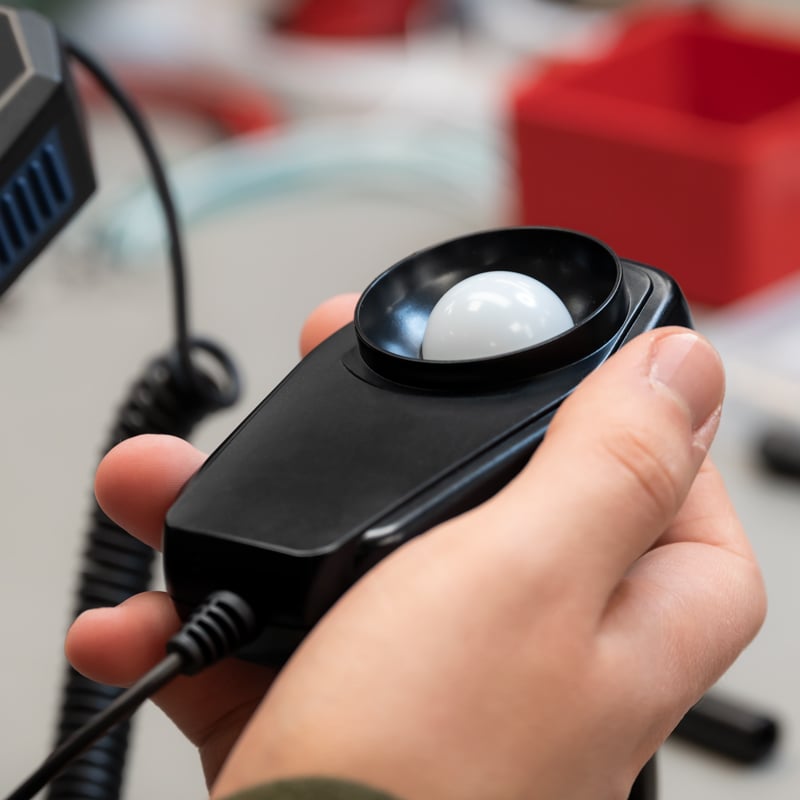

    The lux meter measures in a wide range of 0 ... 400,000 lux. The lux meter uses a silicon photodiode with a spectral filter as a sensor. This allows you to always position the lux meter's sensor correctly. The lux meter's measurement values are shown in Lux and Footcandle units. In addition to numerical display, it has a bar graph.

    To enable analysis, the lux meter has additional functions. The "MIN" and "MAX" buttons on the lux meter activate the display of the maximum and minimum values. Additionally, you can relate the value shown on the screen using the "REL" button. The "PEAK" function records the peak value. With this function activated, the measuring rate is 10 µs.

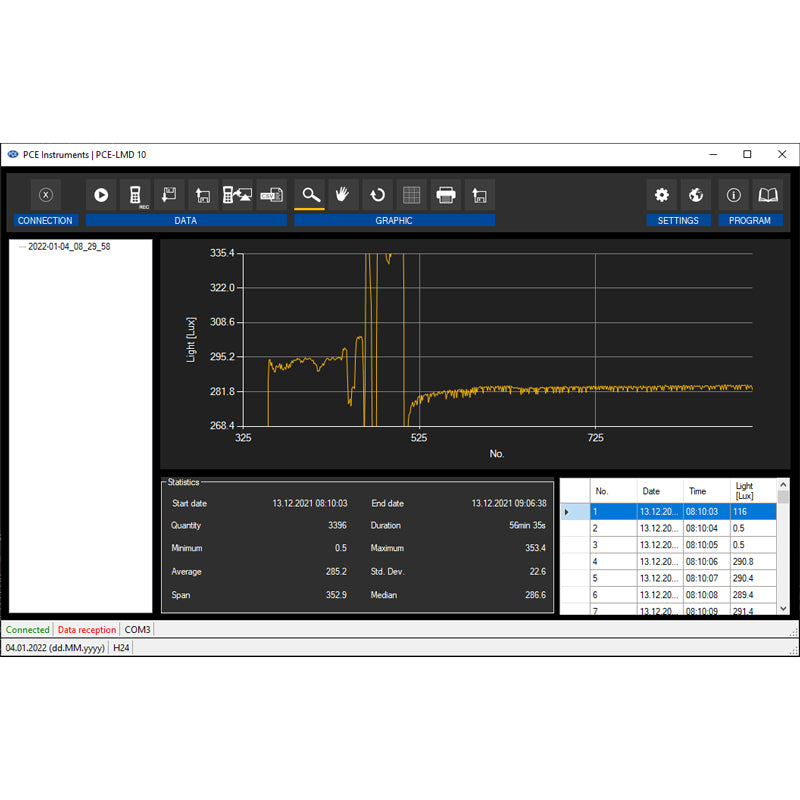

    _x000D_ _x000D_ This model also has a memory for 32,000 values. Once the measurement is complete, you can download the values to a computer for analysis. Real-time measurement is also possible. To edit the values, you can export the lux meter data in CSV format._x000D_

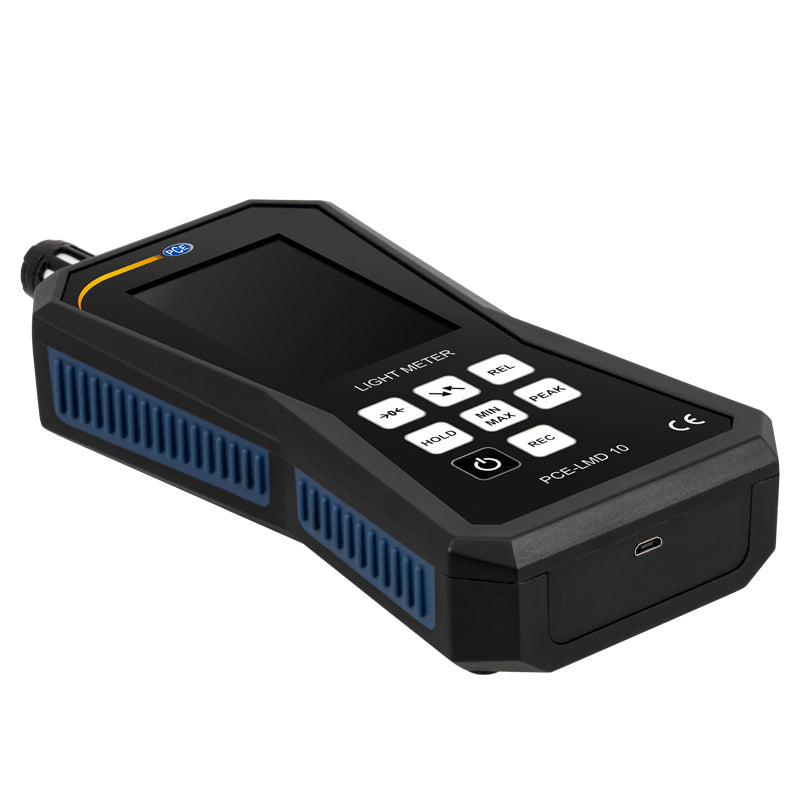

    _x000D_ You can charge the lux meter's 3.7 V Li-Ion battery using the micro USB interface. It has a 5 V DC connection for this purpose. Thanks to its functions, you can use this lux meter for lighting control in greenhouses, workplaces, manufacturing halls, or photographic studios. An ISO calibration certificate can be optionally ordered for this lux meter.
    - Rechargeable battery
    - Micro USB interface
    - Range 0 ... 400,000 lux
    - Units: Lux and Footcandle
    - Backlit LCD display
    - Memory for 32,000 values
    - Software included

    - Optional: ISO calibration certificate
    _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
    Range 1000 ... 400,000 Lux
    0.0 ... 999.9 Lux
    Resolution 1 Lux
    0.1 Lux
    Range 1000 ... 400,000 fc
    100 ... 999 fc
    0.00 ... 99.00 fc
    Resolution 1 fc
    1 fc
    0.01 fc
    _x000D_

    Accuracy

    _x000D_

    ±5 % of value ±10 digits with standard A light
    ±10 % of value ±10 digits

    _x000D_

    Repeatability

    _x000D_

    ±2 %

    _x000D_

    Measuring rate

    _x000D_

    4 Hz

    _x000D_

    Peak-Hold measuring rate

    _x000D_

    10 µs

    _x000D_

    Sensor

    _x000D_

    Silicon photodiode with spectral filter

    _x000D_

    Battery status indicator

    _x000D_

    Battery symbol displayed when charge is low

    _x000D_

    Memory

    _x000D_

    32,000 values

    _x000D_

    Interface

    _x000D_

    Micro USB

    _x000D_

    Battery

    _x000D_

    3.7 V Li-Ion

    _x000D_

    USB charger

    _x000D_

    5 V DC, 1 A

    _x000D_

    Operating conditions

    _x000D_

    -10 … 50 °C / <80 % RH, non-condensing

    _x000D_

    Storage conditions

    _x000D_

    -20 … 50 °C / <80 % RH, non-condensing

    _x000D_

    Dimensions

    _x000D_

    Device: 162 x 88 x 32 mm
    Sensor: 102 x 60 x 25 mm

    _x000D_

    Weight

    _x000D_

    Approx. 320 g

    1 x Lux meter
    1 x USB cable
    1 x Software
    1 x Carrying case
    1 x Instruction manual
