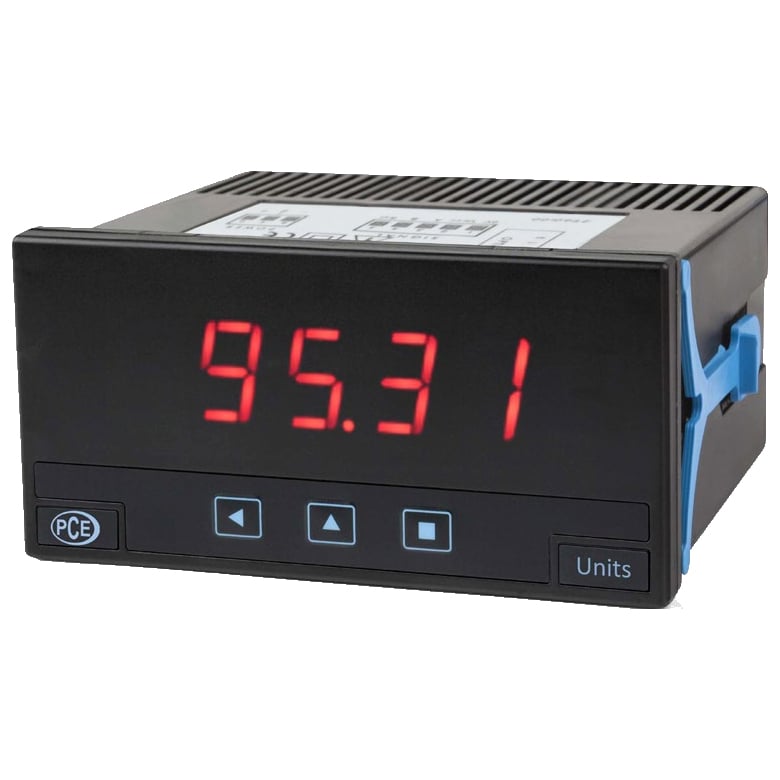

PCE-DPD-U Process Indicator

Product form

SKU: PCE-DPD-U
Barcode: 4250348722478

Delivery 48–72h

€218,32 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoProcess indicator
    Peso 0,15 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Multisignal digital process indicator for use as voltmeter, ammeter, process signals, temperature, resistance, potentiometers and frequencies / Modular design / 4-digit LED display / Universal power supply 110 or 230 Vac or 24 Vdc
    _x000D_
    The multisignal digital process indicator is configurable for use as a voltmeter, ammeter, process signals (mA) with and without excitation voltage, temperature, resistance, potentiometers, and frequencies. The digital process indicator measures 96 x 48mm and displays values on a 4-digit LED screen. The measuring range is -1999 to 9999 with selectable decimal point. The indicator provides quick access to alarm setpoints, an external contact for special functions, an Eco mode for reduced consumption, and 5 brightness levels.

    The power supply voltage for the multisignal digital process indicator is 18 to 265 V AC/DC. Optionally, the indicator can be equipped with relay output, analog output, and Modbus RTU communications.
    _x000D_ - Multisignal digital panel indicator
    _x000D_ - 14 mm, 4-digit red LED display
    _x000D_ - Dimensions 96 x 48 mm
    _x000D_ - Functions include alarms, display filters, brightness, password
    _x000D_ - Universal power supply 18…265 VAC(50/60Hz)/DC
    _x000D_
    _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
    _x000D_

    Signal ranges

    _x000D_

    Processes

    _x000D_

     4/20 mA, 0/10 Vdc

    _x000D_

    AC voltage and current

    _x000D_

    ~ 600 Vac, ~ 200 Vac, ~ 20 Vac, ~ 2 Vac ~ 200 mVac, ~ 60 mVac, ~ 5 Aac, ~ 20 mAac

    _x000D_

    DC voltage and current

    _x000D_

    ±600 Vdc, _x000D_ ±200 Vdc, ±20 Vdc, ±2 Vdc, ±200 mVdc, ±60 mVdc, ±5 Adc, ±20 mAdc

    _x000D_

    Frequency

    _x000D_

    In Vac and Aac ranges.

    _x000D_

    Temperature

    _x000D_

    Thermocouples type K, J, E, N, L, R, S, B, T and C
    Probes type Pt, Ni, NTC, PTC

    _x000D_

    Resistances

    _x000D_

    From 0/5 KOhm and 0/50 KOhm

    _x000D_

    Potentiometers

    _x000D_

    Nominal value between 500 Ohm and 20 KOhm

    _x000D_



    _x000D_

    Display

    _x000D_

    4-digit, 7-segment LED

    _x000D_

    Color

    _x000D_

    Red

    _x000D_

    Digit height

    _x000D_

    14 mm

    _x000D_

    Indication range

    _x000D_

    -1999 ... 9999

    _x000D_

    Decimal point

    _x000D_

    Configurable

    _x000D_

    Optional outputs

    _x000D_

    1 relay for Slot1 (PCE-DPD-U/R1)
    1 relay for Slot2 (PCE-DPD-U/R2)
    1 analog output for Slot1 (PCE-DPD-U/A1)
    1 Modbus RTU output for Slot1 (PCE-DPD-U/MB1)

    _x000D_

    Power output

    _x000D_

    Vexc. from +15 Vdc configurable at terminal 5

    _x000D_

    Power supply

    _x000D_

    Universal 18…265 V AC (50/60Hz)/DC

    _x000D_

    Consumption

    _x000D_

    Max. 1 W (indicator only)
    Max. 2.5 W (indicator with options)

    _x000D_

    Screen refresh rate

    _x000D_

    3 refreshes/second

    _x000D_

    Electrical connections

    _x000D_

    Screw plug-in terminal

    _x000D_

    Protection

    _x000D_

    Front: IP65

    _x000D_

    Mounting

    _x000D_

    Panel

    _x000D_

    Panel cut-out

    _x000D_

    92 x 44 mm

    _x000D_

    Dimensions

    _x000D_

    96 x 48 x 91 mm

    _x000D_

    Weight

    _x000D_

    Approx. 150 g

    _x000D_

    Operating temperature

    _x000D_

    0 ... 50 °C

    _x000D_

    Storage temperature

    _x000D_

    -20 ... 70 °C

    _x000D_ _x000D_
    _x000D_ 1 x PCE-DPD-U process indicator
    _x000D_ 1 x Adhesive sheet with different units
    _x000D_ 1 x Clips for panel mounting
    _x000D_ 1 x Set of connection terminals
    _x000D_ 1 x Quick guide in English

    _x000D_ Note: The complete manual, technical data sheet and other documentation for the device can be found in the downloads section._x000D_
