PCE-DPD-Px Series Panel Meter

Product form

SKU: PCE-DPD-P1
Barcode: 4250348722393

Delivery 48–72h

€295,98 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoDashboard indicator
    Peso 0,15 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

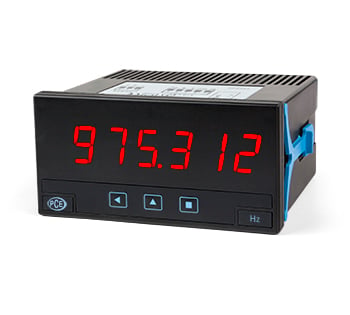

    PCE-DPD-Px Series Digital Panel Indicator for Pulses
    Pulse Counter, Tachometer, and Period Meter / 14 mm Red 6-digit LED Display
    This multifunction digital panel indicator is a pulse counter, tachometer, and period meter for all types of pulse signals and for all types of industrial applications. The digital panel indicator has pulse-type input signals, and the most common types in industry are NPN, PNP, Namur, push-pull, inductive, potential-free, quadrature, ... The digital panel indicator has dimensions of 96 x 48mm and displays values on a 14 mm red 6-digit LED screen. The digital panel indicator has functions for quick sensor configuration, multiple counting types (sum, subtract, inhibit, quadrature, ...), direct access to alarm setpoints, "trigger sense" function, and configurable alarm delays, among other functions. This device has a modular design, which allows for great flexibility when replacing, changing, adding, or substituting any of its necessary modules.
    - Digital panel indicator with pulse counter, tachometer, and period meter functions
    - 14 mm red 6-digit LED display
    - Dimensions 96 x 48 mm
    - Functions: Push-pull, NPN, PNP, Namur, pick-up, TTL, inductive, mechanical contact, quadrature signals (encoder) inputs
    - Two power supply versions 85/265 Vac/dc / 11/60 Vac/dc
    Display 6-digit, 7-segment LED
    Indication 999999 / -199999
    Decimal point Configurable
    Color Red or green (check availability)
    Digit height 14 mm
    Accepted signals NPN, PNP, Namur, pick-up, TTL, inductive, mechanical, quadrature, ...
    Excitation voltage +5 Vdc, +9 Vdc, +15 Vdc, +18 Vdc (max. 70 mA)
    Maximum input Vdc ±30 Vdc
    Quartz accuracy ±0.01 %
    Thermal stability 20 ppm/ºC
    Display refresh rate 15 refreshes / second
    Maximum frequencies counting up to 250 KHz
    tachometer and period meter up to 500 KHz
    Minimum frequencies tachometer and period meter up to 1 mHz (0.001 Hz)
    Power supply ‘1’ 85 to 265 Vac/dc (isolated 2500 Veff)
    Power supply ‘2’ 11 to 60 Vdc and 24/48 Vac (isolated 1500 Veff)
    Output and control options relays, analog outputs, serial communications, ...
    Power consumption <1.5 W (indicator only)
    <4.0 W (indicator with options)

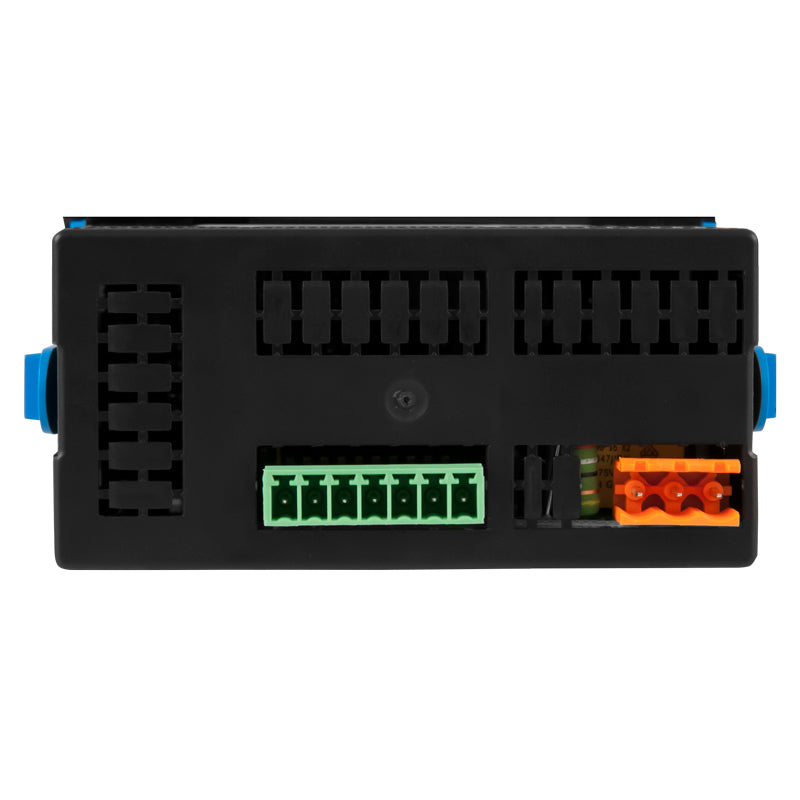

    Electrical connections Screw-type pluggable terminal block
    Protection Front: IP65
    Mounting Panel
    Panel cut-out 92 x 44 mm
    Dimensions 96 x 48 x 91 mm
    Weight Approx. 150 g
    Operating temperature 0 ... 50 °C
    Storage temperature -20 ... 70 °C

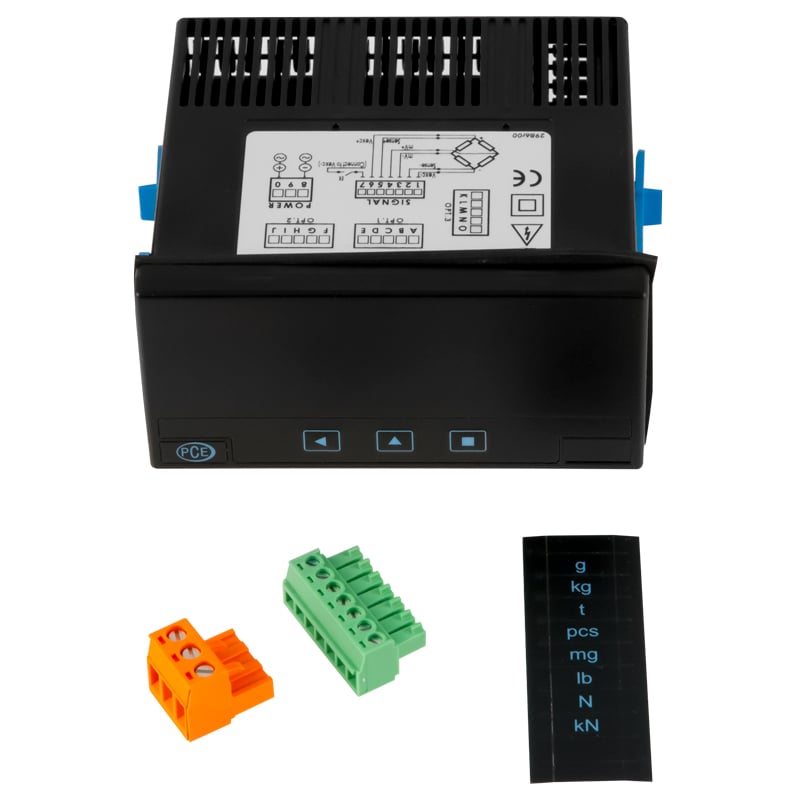

    1 x PCE-DPD-Px Series Digital Panel Indicator
    1 x Power supply terminal
    1 x Signal terminal
    1 x Unit sheet
    1 x Instruction manual

    Note: The complete manual, technical data sheet, and other documentation for the device in Spanish can be found in the downloads section.
