PCE-DPD-IVx Series Panel Indicator

Product form

SKU: PCE-DPD-IV1

Delivery 48–72h

€286,27 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoDashboard indicator
    Peso 0,15 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

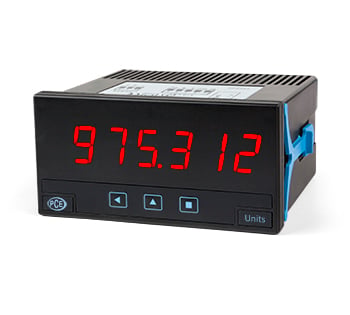

    Panel indicator for process signals in mA and Vdc
    6-digit red LED display 14 mm / Dimensions 96 x 48 mm / Power supply versions 85/265 Vac/dc or 11/60 Vac/dc
    This panel indicator measures process signals in mA and Vdc, and provides configurable excitation voltage for transducer power. The panel indicator has a size of 96 x 48 mm, with 5 digits of 14 mm height with up to ±99999 with selectable decimal point. This panel indicator has output and control options with 1, 2, and 3 relays, isolated analog outputs, Modbus RTU communication outputs, transistor outputs, SSR control outputs, RS-485 ASCII, and RS-232.
    In addition, the panel indicator has configurable independent high or low alarms, with 1 or 2 setpoints per alarm, hysteresis, independent activation and deactivation delay, and inverted relay option. The panel indicator has IP 65 front protection and connections via pluggable screw terminals for industrial use.
    - Panel indicator for process signals in mA and Vdc
    - 6-digit red LED display 14 mm
    - Dimensions 96 x 48 mm
    - Functions: Field correction, Tare, On Power Up, Peak & Hold
    - Two power supply versions 85/265 Vac/dc / 11/60 Vac/dc
    Display
    Digits 6
    Display 6-digit, 7-segment LED
    Indication 999999 / -199999
    Decimal point Configurable
    Color Red or green (check availability)
    Digit height 14 mm
    Readings 3.5 readings/second
    Refresh rate 3.5 readings/second

    Process signals
    Signal ranges 4/20 mA, 0/10 Vdc, ±20 mA, ±10 Vdc, ...
    Excitation voltage +20 Vdc, +15 Vdc, +10 Vdc, +5 Vdc (max. 35 mA)
    Accuracy 0.03% F.S. ±1 digit
    Offset drift 10 ppm/°C
    Span drift* 25 ppm/°C
    *span drift includes offset drift
    Response time <300 ms (0% to 99% signal)
    Input impedance 11 Ohm in mA, 932 KOhm in Vdc

    Potentiometer signals
    Signal range From 200 Ohms to 5 MOhms
    Excitation voltage +5 Vdc (max. 35 mA)
    Accuracy 0.10% F.S. ±1 digit
    Offset drift 10 ppm/°C
    Span drift* 35 ppm/°C
    *span drift includes offset drift
    Response time <1000 ms (0% to 99% signal)
    Input impedance 932 KOhm

    Other specifications
    Power supply "1" 85 to 265 Vac/dc (isolated 2500 Veff)
    Power supply "2" 11 to 60 Vdc and 24/48 Vac (isolated 1500 Veff)
    Output and control options Relays, analog outputs, serial communications, ...
    Power consumption <1.5 W (indicator only)
    <4.0 W (indicator with options)
    Protection Front: IP65

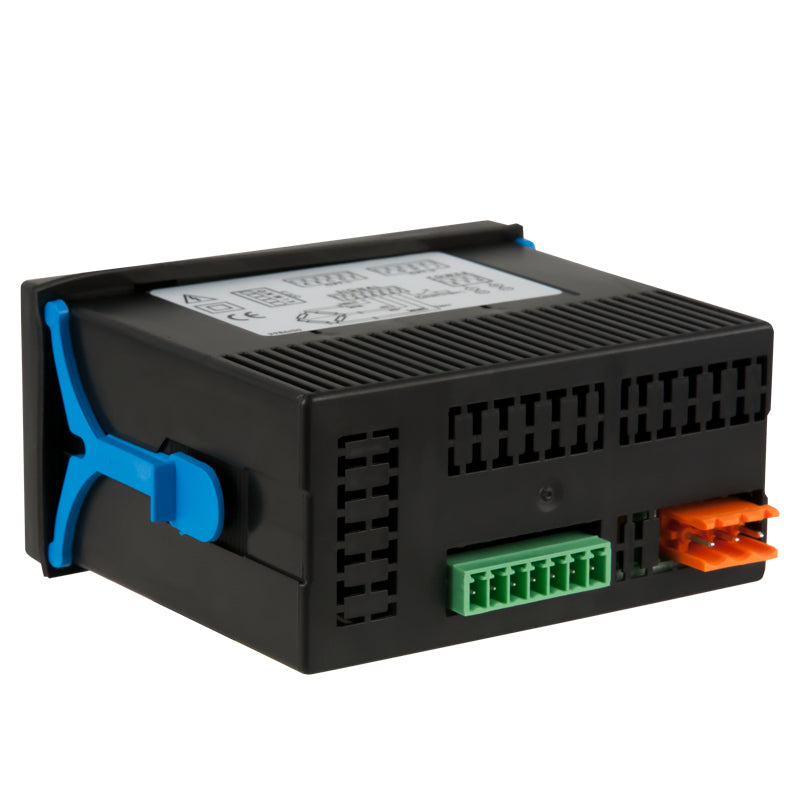

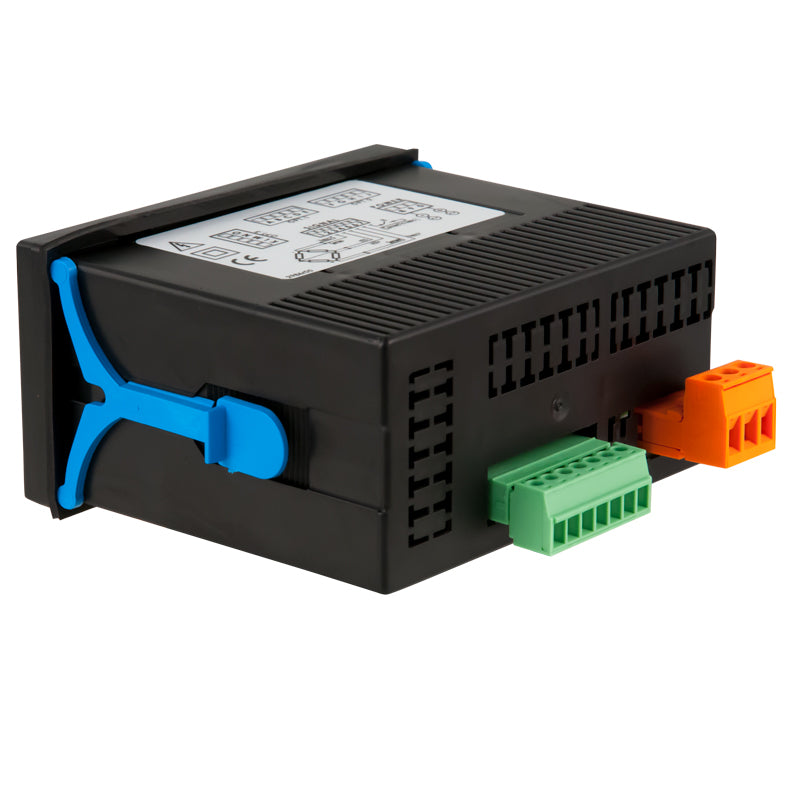

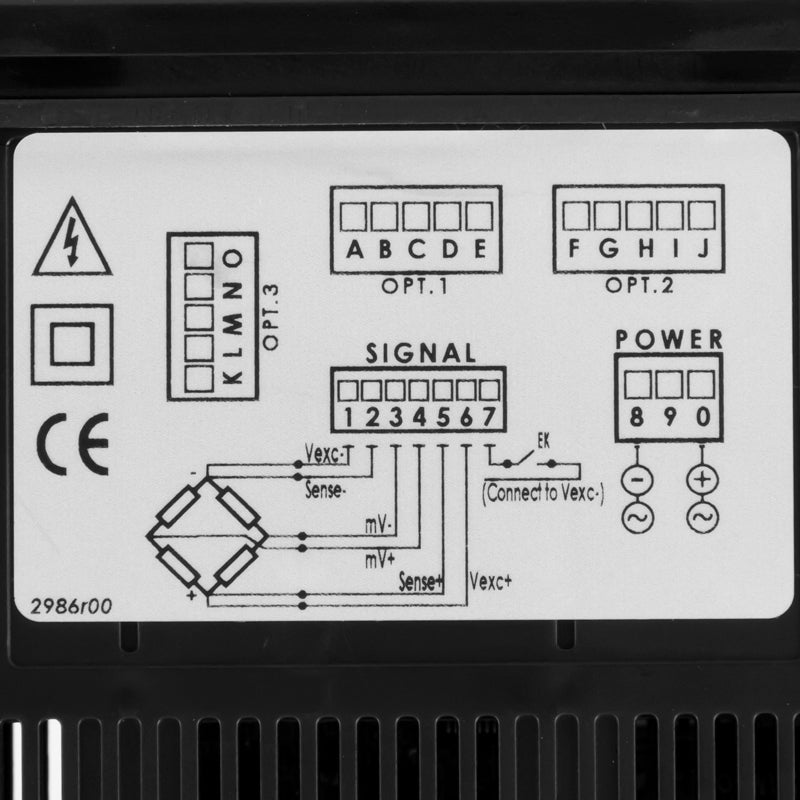

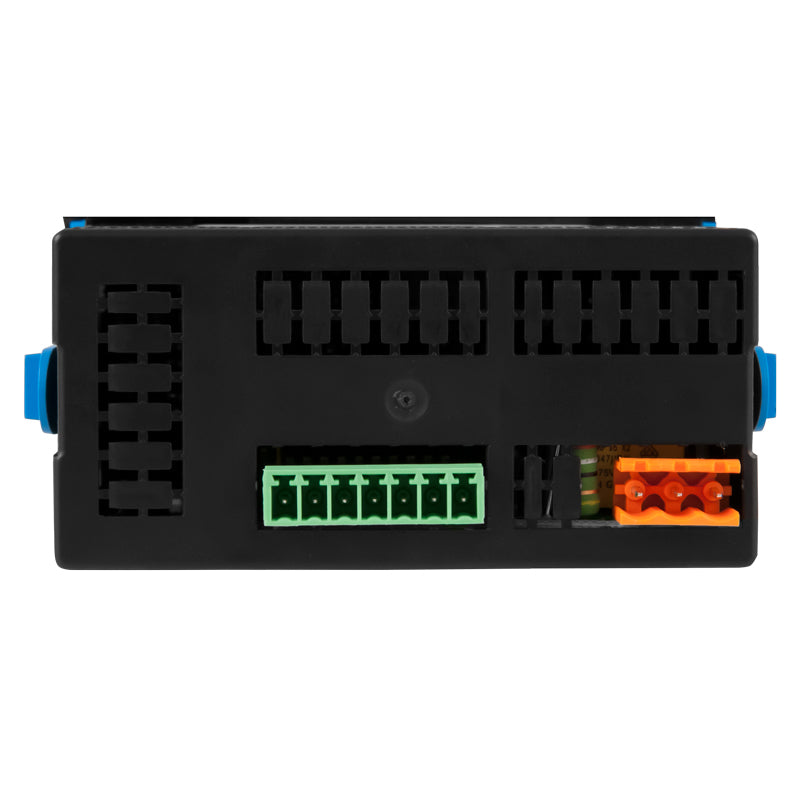

    Electrical connections Pluggable screw terminal
    Mounting Panel
    Panel cut-out 92 x 44 mm
    Dimensions 96 x 48 x 91 mm
    Depth 91 mm (includes terminals)
    Weight Approx. 150 g
    Operating temperature 0 ... 50 °C
    Storage temperature -20 ... 70 °C

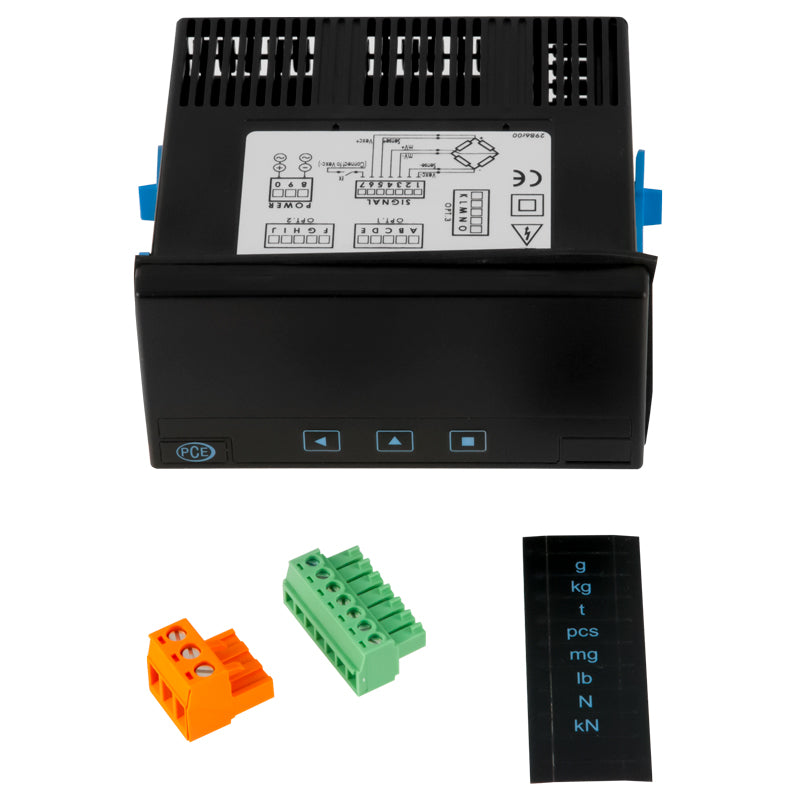

    1 x Panel indicator for process signals series PCE-DPD-IVx
    1 x Power terminal
    1 x Signal terminal
    1 x Unit sheet
    1 x Instruction manual

    Note: The complete manual, technical data sheet and other documentation in Spanish for the device can be found in the downloads section.
