    Description

    Current indicator with different input signals / sensor power supply /
    5-digit display / internal real-time clock / optional analog output and RS-485 interface / IP 65 front
    The panel indicator is a device for indicating process magnitudes, and is available in four different versions. In addition to having a digital display with inputs for standardized 0/4-20 mA and 0-10 V signals, it can also be connected to resistance temperature sensors and thermocouples. Thanks to its three-color digital display and LEDs, which illuminate when the limit values are exceeded, the user can quickly assess the current measurement values on the panel indicator. Additionally, 1 of 56 different available units can be pre-configured on its digital display. This panel indicator has a digital scale of more than 21 points that allows for accurate reproduction of specific curves. The panel indicator has IP65 protection on the front, and is therefore protected against dust and water. The configuration of the panel indicator is carried out using the buttons on the front. Through the optional RS-485 interface, you can adjust the indicator's parameters via software. You can prevent settings from being tampered with by using a password. The use of this digital indicator is very broad thanks to the sensor power supply, the two alarm outputs, and the real-time clock. In addition, the digital display can be optionally equipped with an analog output and an RS-485 interface (Modbus protocol). The indicator's power supply can also be chosen according to requirements (20 - 40 V AC/DC or 85 - 253 V AC/DC).
    - 21-point scaling
    - IP 65 on the front
    - 56 different units
    - Digital indicator for industrial processes
    - Two alarm outputs
    - 24 V sensor power supply
    - Optional RS-485 interface
    - 5-digit digital indicator
    - Programmable via front buttons or via optional programming kit
      (only for models with RS485)
    Technical specifications
    Inputs Pt100, Pt500, Pt1000 with 2, 3, or 4 wires
    Thermocouples type J, K, N, E, R, S
    Resistance 0 ... 410 Ω / 4010 Ω
    Current -24 ... +24 mA
    Voltage: -10 ... +63 mV, -13 ... +13 V
    Measurement rate 1 / second
    Digital display resolution 16 bit
    Accuracy 0.1 %
    Internal impedance Voltage measurement: 1 MΩ
    Current measurement: 12 Ω
    Scale 21 points
    Digital display 5-digit, 7-segment LED, in three colors
    Indication range -19999 ... 99999
    Units selection from 56 available units
    Sensor power supply 24 V DC, max. 30 mA
    Outputs 2 alarm relays
    (normally open contact, 250 V AC / 0.5 A)
    2 alarm relays
    (changeover contact, 250 V AC / 0.5 A)
    Analog output (0/4 ... 20 mA or 0 ... 10 V)
    RS-485 interface
    NPN open collector (30 V DC / 30 mA)
    Ambient temperature Operation: -25 ... +55 ºC
    Storage: -33 ... +70 ºC
    Digital display dimensions 96 x 48 x 93 mm
    Dimensions for panel installation 92 x 45 mm (according to DIN)
    Power supply voltage 85 ... 253 V AC (45 ... 65 Hz) or DC
    20 ... 40 V AC (45 ... 65 Hz) or DC
    Protection type Digital display front IP 65
    Digital display weight < 200 g
    Mounting Mounting clips with clamping screws, connection via terminal blocks
    Digital display housing Robust plastic
    Delivery content

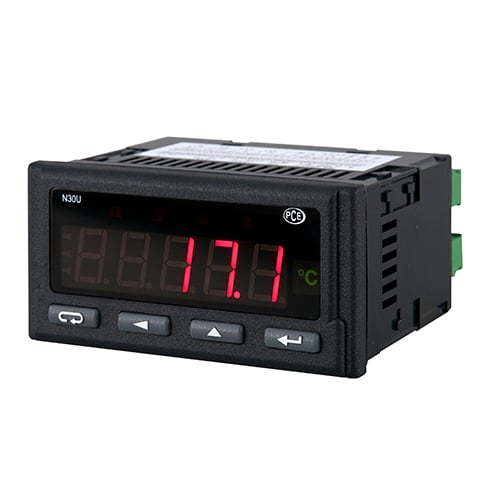

    1 x PCE-N30U Panel Indicator
    1 x Mounting material
    1 x User manual
