PCE-N30P Current Indicator

Product form

SKU: PCE-N30P-1

Delivery 48–72h

€247,44 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCurrent indicator
    Peso 0,2 kg
    Componentes incluidos 1 unidad

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Current indicator for single-phase measurement of parameters such as voltage, current, power, phase angle... / optional pulse output and RS485 interface / IP 65 front

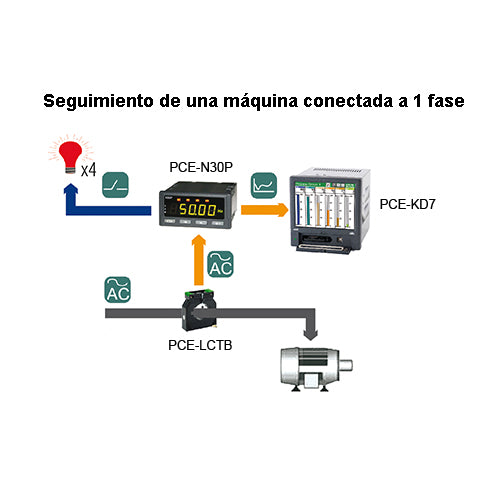

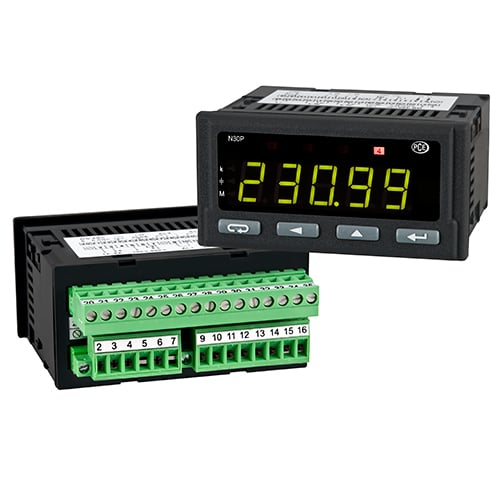

    The PCE-N30P panel indicator is an installation indicator that records and displays important parameters of a single-phase network. The PCE-N30P panel indicator calculates apparent, active, and reactive power, phase angle, and power factor from current and voltage measurements. It also calculates the average power over 15 minutes and the average voltage over 10 minutes. Parameterization and operation are carried out using the four keys on the front of the device. The measuring ranges of the panel indicator (current 5 A, voltage 400 V) can be extended with a voltage and current converter. The decimal point is automatically adjusted according to the measured value. The two alarm outputs, included in the basic version, trigger an alarm if limit values are exceeded. In addition, the display color of the measured value changes when the alarm is activated. The pulse output (optionally available) generates 5000 pulses per kWh. With the RS485 interface (optionally available) you can also select the measured values.
    - Measurement and display of 16 parameters
    - IP 65 front
    - Tri-color display
    - Two alarm outputs
    - Adjustable current / voltage ratio
    - Optional RS-485 interface
    Technical Specifications
    Inputs Current: 0.02 ... 6 A
    Voltage: 0 ... 480 V
    Frequency: 45.00 ... 100.00 Hz
    Accuracy Voltage, current, frequency: 0.2 %
    Active, apparent, reactive power: 0.5 %
    Power factor: 0.5 %
    Phase shift: 1 %
    Active energy, reactive energy: 0.5 %
    Display 5 digits 7-segment, tri-color
    Power consumption 6 VA
    Outputs 2 alarm relays 250 V / 0.5 A NO
    Optional:
    Analog output (0/4 ... 20 mA or 0 ... 10 V)
    RS485 interface,
    Pulse output (5000 pulses/kWh)
    Ambient temperature Operating temperature: -25 °C ... 55 °C
    Storage: -33 °C ... +70 °C
    Dimensions 96 x 48 x 93 mm
    Panel cutout dimensions 92 x 45 mm (according to DIN)
    Power supply 85 ... 253 V AC (45 ... 65 Hz) or DC
    20 ... 40V AC (45 ... 65 Hz) or DC
    Protection type Front: IP 65
    Weight < 200 g

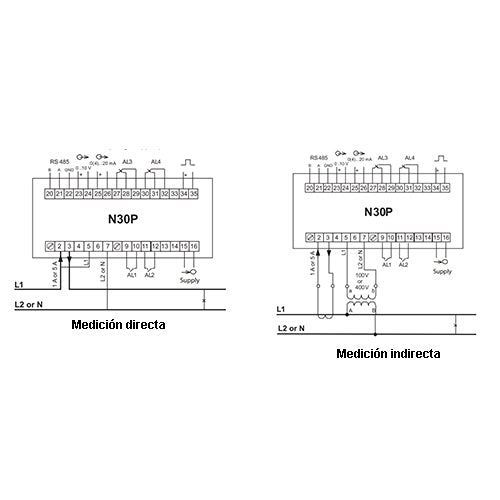

    Mounting Mounting clips with retaining screws, connection via terminal blocks
    Standards EN 61010-1 CAT III 600 V
    Delivery content
    1 x PCE-N30P Panel Indicator
    1 x Mounting material
    1 x User manual
