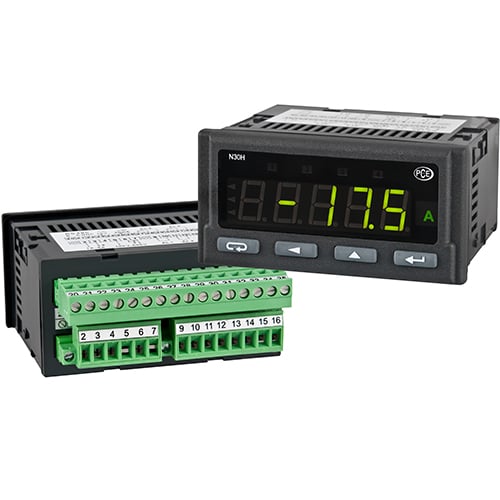

Current indicator PCE-N30H

Product form

SKU: PCE-N30H-1000A0E0

Delivery 48–72h

€241,37 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCurrent indicator
    Peso 0,2 kg
    Componentes incluidos 1 unidad

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Current indicator with DC current and voltage input /
    5-digit display / internal real-time clock / optional open collector output /
    The PCE-N30H panel meter measures DC voltages up to 600 V and DC currents up to 6 A. This makes the PCE-N30H panel meter ideal for monitoring DC voltages and currents. The panel meter has a 5-digit LED display that changes color when different limit values are reached. With the help of 21 pairs of values, the input signal can be freely scaled. In this way, measurement curves that do not have a linear characteristic can also be displayed. The built-in real-time clock shows the current time. Through the analog output (optionally programmable), the measured values can be output. This function allows, for example, the recording of the measured values that the ammeter has measured. The PCE-N30H panel meter is equipped with an RS485 interface, which connects via the Modbus RTU protocol to other devices.
    - 21-point scaling
    - Front panel with IP 65
    - Measures DC current and DC voltage
    - Two alarm outputs
    - Current time display
    - Optional RS-485 interface
    Technical specifications
    Voltage (configurable on order)

    -200 ... +200 V DC

    -600 ... +600 V DC

    Current (configurable on order)

    -2 ... +2 A DC

    -6 ... +6 A DC

    Time 00.00 ... 23.59 hour
    Scaling 21 points
    Display 5-digit, 7-segment, three-color LED
    Indication range -19999 ... 99999
    Units Configurable
    Sensor power supply 24 V DC, max. 30 mA
    Outputs (configurable on order) 2 alarm relays
    RS-485 interface
    4 ... 20 mA or 0 ... 10 V (programmable)
    Open collector
    Operating conditions -25 ... +55 °C / 25 ... 95 % R.H.
    Storage conditions -33 ... +70 °C / 25 ... 95 % R.H.
    Dimensions 96 x 48 x 93 mm
    Dimensions for panel installation 92 x 45 mm (according to DIN)
    Power supply (configurable on order) 85 ... 253 V AC (45 ... 65 Hz) AC / DC
    20 ... 40 V AC (45 ... 65 Hz) AC / DC
    Protection type IP 65
    Weight < 200 g
    Mounting Mounting clips with clamping screws, connection via terminal blocks
    Housing Robust plastic
    Standards CAT III according to EN61010-1
    Delivery content
    1 x PCE-N30H panel meter
    1 x Mounting material
    1 x User manual
