PCE-N25Z Current Indicator

Product form

SKU: PCE-N25Z-2104A0E0

Delivery 48–72h

€115,17 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCurrent indicator
    Peso 0,2 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    5-digit current indicator / IP 65 front / optional sensor power supply / for 100V AC, 250V AC, 400V AC, 1A AC, 5A AC, 20 ... 500 Hz / configuration via software

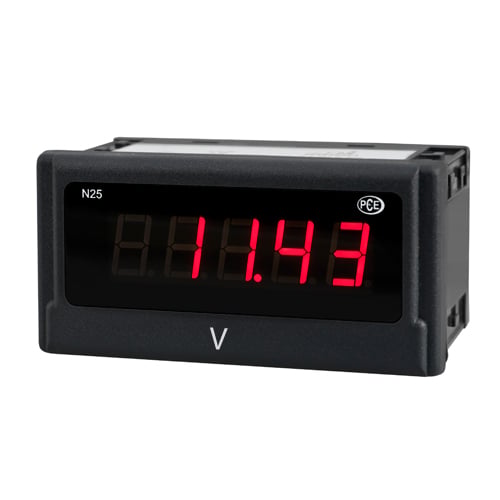

    The PCE-N25Z digital indicator has been designed to display standardized 4-20 mA signals, commonly used in industry. Since the input signal can be freely configured, the applications of this digital indicator are very diverse. The user can read the current values on the 5-digit display. The optional 24 V sensor power supply allows direct connection of 2-wire sensors or transducers, simplifying the use of the digital indicator. In addition to a 230 V power supply, you can also power it with 20 - 40V. Configuration is done via the LPCon software, with which you can also save and reload the configuration, as well as make adjustments or read data via the PCE-PD14 programming adapter.
    - IP 65 front
    - For 100V AC, 250V AC, 400V AC, 1A AC, 5A AC, 20 ... 500 Hz

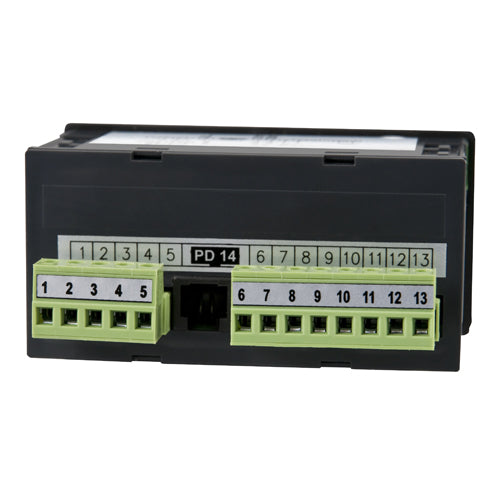

    - Connection via terminal block
    - Configuration via software
    - 5-digit LED display
    Technical Specifications
    Inputs (configurable on order) 100V AC, 250V AC, 400V AC, 1A AC, 5A AC, 20 ... 500 Hz
    Accuracy ± (0.2 % FS + 1 digit)
    Internal impedance 10 Ω ± 1 %
    Scale 2 points
    Display 5-digit LED, 7 segments, height: 14 mm
    Range -19999 ... 99999
    Ambient temperature Operating: -10 °C ... 55 °C
    Storage: -25 °C ... +85 °C
    Power supply 230 V AC
    Dimensions 96 x 48 x 64 mm
    Dimensions for panel installation 92 x 45 mm (according to DIN)
    Power supply 230V AC, 110V AC, 24V AC, 85 - 235V AC/DC, 20 - 40V AC/DC
    Protection type Front: IP 65
    Weight < 200 g
    Mounting Mounting clips with clamping screws, connection via terminal blocks
    Housing Robust plastic
    Delivery content
    1 x PCE-N25Z digital indicator
    1 x Mounting material
    1 x Sealing gasket
    1 x User manual
