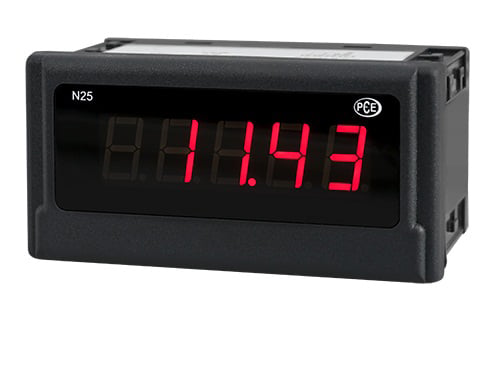

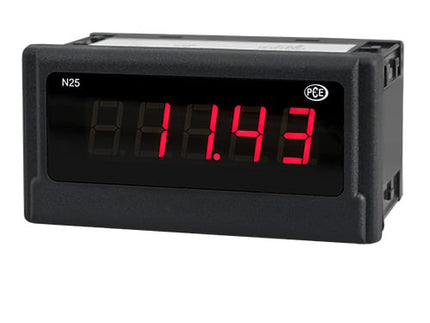

PCE-N25S Current Indicator

Product form

SKU: PCE-N25S-1100A0E0

Delivery 48–72h

€115,17 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCurrent indicator
    Peso 0,2 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    5-digit current indicator / IP 65 front panel / optional sensor power
    supply / for 4 ... 20 mA standardized signals / configuration via software
    The current indicator is used to display 4...20 mA process signals, which are widely used in the industry. Since the input signal of the current indicator can be freely configured, its use is very broad. The user can read the current measurement values on its 5-digit display. The optional 24 V sensor power supply allows a direct connection of 2-wire sensors or transducers, which simplifies the use of this digital current indicator. The three different models of this current indicator also differ in their power supply voltage. In addition to a 230 V power supply, 20 - 40 V can be used. The configuration is done via the free LPCon software. Using the PCE-PD14 programming adapter, you can make adjustments or read the values of the current indicator. Configurations made through the software can be saved and retrieved.
    - IP 65 on the front panel
    - For 4-20 mA process signals

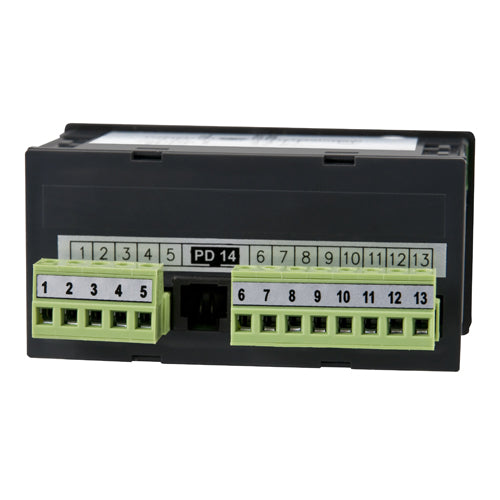

    - Connection via screw terminal
    - 24 V sensor power supply
    - Configuration via software
    - 5-digit LED display
    Input 3.6 mA ... 4 mA ... 20 mA ... 22 mA
    Accuracy ± (0.2 % FS + 1 digit)
    Internal impedance 10 Ω ± 1 %
    Scale 2 points
    Display 5-digit 7-segment LED, height: 20
    Display range -19999 ... 99999
    Sensor power supply 24 V DC, max. 30
    Ambient temperature Operation: -10 ... 55 ºC
    Storage: -25 ... +85 ºC
    Dimensions 96 x 48 x 64 mm
    Dimensions for panel installation 92 x 45 mm (according to DIN)
    Power supply voltage 230 V AC, 85 ... 253 V AC/DC
    20 ... 40 V AC/DC
    Protection type Front: IP 65
    Weight < 200 g
    Mounting Mounting clips with clamping screws, connection via terminal blocks
    Housing Robust plastic
    1 x Current indicator PCE-N25S
    1 x Fastening material
    1 x Gasket
    1 x User manual
