PCE-N24Z Current Indicator

Product form

SKU: PCE-N24Z-1104A0E0

Delivery 48–72h

€121,23 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCurrent indicator
    Peso 0,2 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Current Indicator for Voltage, Current and Frequency / Measurement Range 20 ... 500 Hz / 1 ... 400 V AC / 0.01 ... 5 A AC / 20 mm Digit Height
    The indicator is ideal for measuring frequency, current, and voltage. The ability to freely configure the input signal allows for great versatility of use for the indicator. This indicator is compatible with the PCE-PD14 programming adapter, with which real-time measurement data can be transferred to a PC. In this case, the indicator measures with an accuracy of ± (0.2% FS + 1 digit). Thanks to its 4-digit display, the measurement result can be read easily. The resistant plastic casing reliably protects it and offers optimal protection for the indicator in harsh industrial environments.
    - Front IP 65
    - Configuration with the PCE-PD14
    - Measurement rate: > 0.5 s
    - 4-digit LED display (20 mm height)
    - 4-digit display

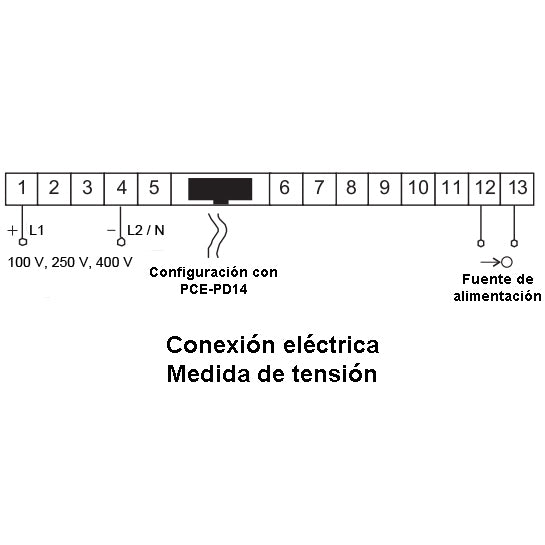

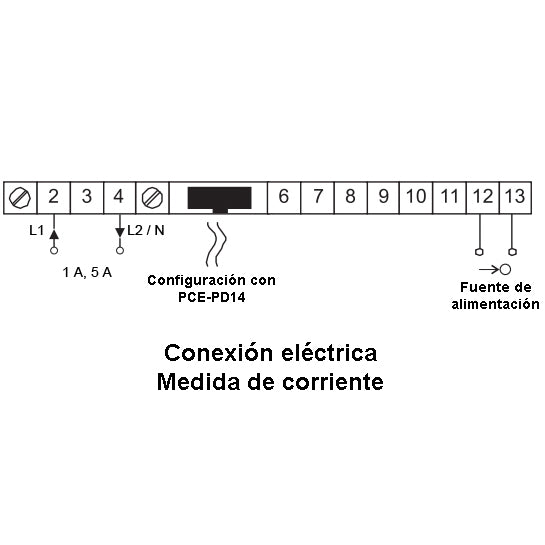

    - Connection via screw terminal
    - Dimensions: 96 x 48 x 64 mm
    - Red digits
    Input
    (configurable on order)
    1...100...120V AC
    2.5...250...300V AC
    4...400...600V AC
    20...500 Hz
    0.01...1...1.2A AC
    0.05...5...6A AC
    Accuracy ± (0.2 % FS + 1 dgt.)
    Internal resistance 10 Ω ± 1 %
    Scale 2 points
    Display 4-digit 7-segment, height: 20 mm
    Indication range -1999 ... 9999
    Sensor power supply
    (configurable on order)
    24 V DC, max. 30 mA
    Ambient temperature Operation: -10 °C ... +55 °C
    Storage: -25 °C ... +85 °C
    Dimensions 96 mm x 48 mm x 64 mm
    Panel installation 92 mm x 45 mm (via DIN)
    Power supply voltage
    (configurable on order)
    24 V AC
    110 V AC
    230 V AC
    85 ... 253 V AC/DC
    20 ... 40 V AC/DC
    Protection type Front: IP 65
    Weight < 200 g
    Mounting Mounting clips with retaining screws,
    Connection via terminal blocks
    Casing Resistant plastic casing
    1 x PCE-N24Z current indicator
    1 x User manual
