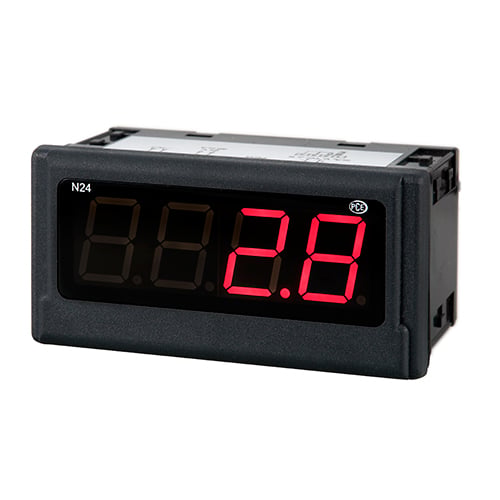

PCE-N24S Current Indicator

Product form

SKU: PCE-N24S-1100A0E0

Delivery 48–72h

€112,73 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCurrent indicator
    Peso 0,2 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    4-digit current indicator with 20 mm digit height / IP 65 protection on the front /
    sensor power supply / for standard signals 4 ... 20 mA / configuration via software
    The panel meter is used for evaluating the most common process signal 4...20 mA. With the panel meter, you can freely configure the input signal, allowing for a wide variety of uses. The current value of the panel display can be easily read thanks to the large 4-digit display. The optional 24 V sensor power supply allows for direct connection of 2-wire sensors or transducers, simplifying the use of this panel meter. The different models also differ in supply voltage. In addition to a 230 V power supply, 20 - 40 V can also be used for its operation. The panel meter is configured via the free LPCon software. Using the PCE-PD14 programming adapter, you can make adjustments or read values. The configurations made via the software in the panel meter can be saved and retrieved.
    - IP 65 protection on the front
    - For 4-20 mA process signals
    - Screw connection
    - Sensor power supply
    - Configuration via software
    - Process indicator with LED display
    Input 3.6 mA ... 4 mA ... 20 mA ... 22 mA
    Accuracy ± (0.2% FS + 1 digit)
    Internal impedance 10 Ω ± 1%
    Scale 2 points
    Display 4-digit 7-segment LED, height: 20 mm
    Display range -19999 ... 99999

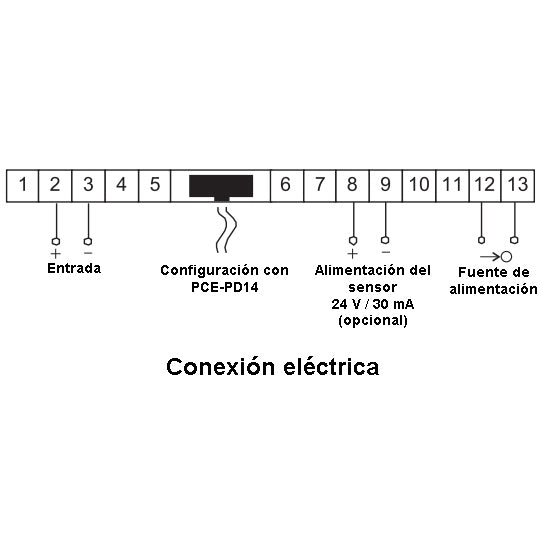

    Sensor power supply 24 V DC, max. 30 mA
    Ambient temperature Operating: -10 ... 55 ºC
    Storage: -25 ... +85 ºC
    Dimensions 96 x 48 x 64 mm
    Panel installation dimensions     92 x 45 mm (according to DIN)
    Supply voltage 230 V AC, 85 ... 253 V AC/DC
    20 ... 40 V AC/DC
    Protection type Front: IP 65
    Weight Approx. 200 g

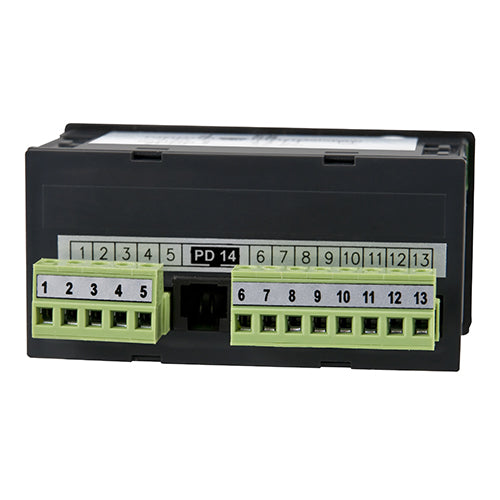

    Mounting Mounting clips with retaining screws, connection via terminal blocks
    Housing Made of robust plastic
    1 x PCE-N24S panel meter
    1 x Mounting material
    1 x Gasket
    1 x Instruction manual
    Note: The indicator is delivered with the selected configuration without scaling the measurement signal. The PCE-PD14 programming adapter for configuring the indicator.
