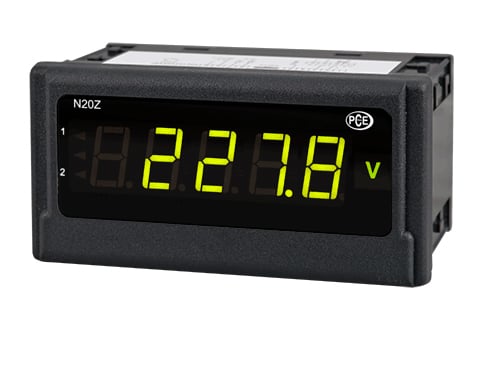

PCE-N20Z Current Indicator

Product form

SKU: PCE-N20Z-1104A08

Delivery 48–72h

€157,64 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCurrent indicator
    Peso 0,25 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Panel current indicator up to 400 V / 5-digit display /
    2 alarm outputs / software configuration / IP 65 on the front
    The panel voltage indicator can be used to measure AC voltage up to 400 V. With this panel voltage indicator, the voltage to be measured is connected directly and the value can be read on the LED display. The display color of the panel voltage indicator is shown in up to three different colors, depending on the measured value.  The user can set the limit values on the panel voltage indicator. This allows for a quick assessment of the measured value. The two open collector outputs can be used to control the voltage. When the upper or lower limit values are exceeded, the alarm is activated on the panel voltage indicator. To configure the alarm limits and the display color change of the panel voltage indicator, you can use the LPCon software. This serves, in addition to configuring the panel voltage indicator, also to read an existing configuration. Once you have created a configuration, you can save it and later retrieve it. This allows you to configure several voltage indicators with the same settings. The connection between the panel voltage indicator and the PC is made using the optional PCE-PD14 programming adapter, which converts the data stream and transmits it to the computer via the USB port. The panel voltage indicator is available in two versions, which differ in how they are powered (230 V or 24 V).
    - 2 alarm outputs
    - USB configuration
    - Tri-color LED display
    - IP 65 on the front
    - Measures voltage up to 400 V
    - Screw terminal connection
    Technical specifications
    Input (configurable on order) 100 V AC
    250 V AC
    400 V AC
    Input resistance 2 MΩ
    Accuracy (20 - 500 Hz) ±(0.5 % FS + 1 digit)
    Averaging time 0.5 ... 20 s
    Outputs 2 x open collector, 30 V, 20 mA
    Display 5 digits, 7 segments, 14 mm height, tri-color
    Display range -19999 ... 99999
    Ambient temperature Operating: -10 ... +55 ºC
    Storage: -25 ... +85 ºC
    Maximum relative humidity <95 % non-condensing
    Dimensions 96 x 48 x 64 mm
    Panel cutout dimensions 92 x 45 mm (according to DIN)
    Power supply (configurable on order) 85 ... 253 V AC/DC
    20 ... 40 V AC/DC
    Power consumption <6 VA
    Protection type of the voltage indicator Front: IP 65
    Weight <250 g
    Mounting Mounting clips with fastening screws, connection via terminal blocks
    Housing Robust plastic
    Delivery content
    1 x Panel voltage indicator PCE-N20Z
    1 x Mounting material
    1 x Gasket
    1 x User manual
