PCE-N20U Current Indicator

Product form

SKU: PCE-N20U-7102A08

Delivery 48–72h

€151,57 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCurrent indicator
    Peso 0,25 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Current indicator with 2 alarm outputs / configuration via software /
    for standardized signals of 0 - 10 V / IP 65 on the front /
    with sensor power supply

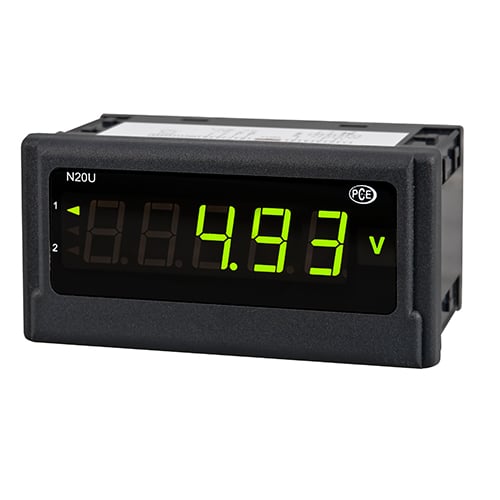

    The PCE-N20U digital panel indicator analyzes the 0-10 V standardized signal. As many sensors and transducers work with an analog output, this digital panel indicator can be used in many sectors. The current measurement value can be read on the 5-digit LED display of this digital panel indicator. The display color of the digital panel indicator is shown in up to three different colors, depending on the value. This allows for a quick evaluation of the measured value. Two outputs allow an alarm to be sent when limit values are exceeded. The integrated 24 V power supply also allows for direct connection of sensors and transducers. The digital panel indicator is available in two versions, which differ in the way they are powered (230 V or 24 V). The alarm values and scale are configured using the LPCon software. Through the optional PCE-PD14 programming adapter you can make adjustments or read data from the digital panel indicator. The software allows you to save the configured settings for later retrieval.
    - IP 65 on the front
    - For standardized 0-10 V signals

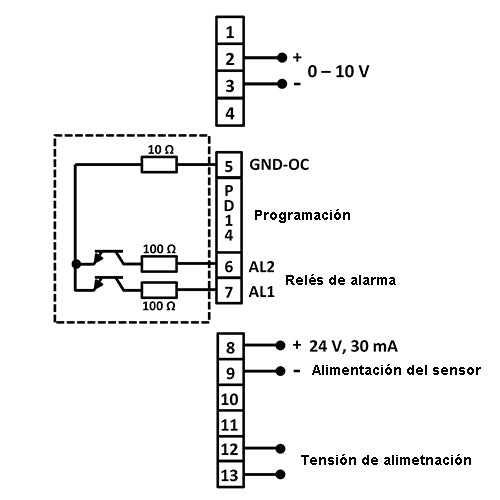

    - Connection via screw terminal
    - Three-color display
    - 24 V sensor power supply
    - 5-digit LED display
    Technical specifications
    Input (configurable on order) 0 ... 10 V
    0 ... 60 mV
    ± 10 V
    Input resistance 1 MΩ
    Accuracy ±(0.2 % FS + 1 digit)
    Scale 2 points
    Averaging time 0.5 ... 20 s
    Outputs 2 x open collector, 30 V, 20 mA
    Sensor power supply 24 V, 30 mA
    Display 5 digits, 7 segments, height 14 mm, three colors
    Display range -19999 ... 99999
    Ambient temperature Operating: -10 ... +55 ºC
    Stored: -25 ... +85 ºC
    Maximum relative humidity <95 % non-condensing
    Dimensions 96 x 48 x 64 mm
    Dimensions for panel installation 92 x 45 mm (according to DIN)
    Power supply voltage (configurable on order) 85 ... 253 V AC/DC
     20 ... 40 V AC/DC
    Power consumption <6 VA
    Protection type Front: IP 65
    Weight <250 g
    Mounting Mounting clips with retaining screws, connection via terminal blocks
    Housing Robust plastic

    Delivery content

    1 x PCE-N20U digital panel indicator
    1 x Mounting material
    1 x Gasket
    1 x User manual
