Current meter PCE-N20I

Product form

SKU: PCE-N20I-4100A08

Delivery 48–72h

€151,57 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoCurrent indicator
    Peso 0,25 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Current indicator for normalized signals 4-20 mA / IP 65 on the front /
    power supply via software
    The PCE-N20I panel indicator analyzes the normalized 4-20 mA signal. Since many sensors and transducers operate with an analog output, this panel indicator can be used in many sectors. The 4-20 mA signal has two important advantages: First, the cable used for transmission can have an indefinite length. Second, the panel indicator can, thanks to its lower limit value of 4 mA, identify and display a cable break. The current measurement value can be read on the 5-digit LED display of this panel indicator. The display color of the measuring instrument is shown, depending on the value, in up to three different colors. This allows for a quick evaluation of the measurement value. Two outputs allow an alarm to be sent when limit values are exceeded. The integrated 24 V power supply also allows for a direct 2-wire connection. The panel indicator is available in two versions, which differ in how they are powered (230 V or 24 V). The configuration is done via the license-free LPCon software. By means of the optional PCE-PD14 programming adapter you can make adjustments or read data from the panel indicator. The software allows you to save configurations for later retrieval.
    - IP 65 on the front
    - For normalized 4-20 mA signals
    - Screw terminal connections
    - Three-color display
    - 24 V sensor power supply
    - 5-digit LED display
    Technical Specifications
    Input 3.6 ... 4 ... 20 ... 22 mA
    Input resistance 10 Ω ± 1%
    Accuracy ± (0.2 % FS + 1 digit)
    Scaling 2 points
    Averaging time 0.5 ... 20 s
    Outputs 2 x open collector, 30 V, 20 mA
    Sensor power supply 24 V, 30 mA
    Display  5-digit 7-segment LED, 14 mm height, three colors
    Display range -19999 ... 99999
    Ambient temperature Operation: -10 ... +55 ºC
    Storage: -25 ... +85 ºC
    Maximum relative humidity <95 % non-condensing
    Dimensions 96 x 48 x 64 mm
    Panel cutout dimensions 92 x 45 mm (according to DIN)
    Power supply voltage
    PCE-N20I-1
    PCE-N20I-2
    85 ... 253 V AC/DC
    20 ... 40 V AC/DC
    Power consumption <6 VA
    Protection type Front: IP 65
    Weight <250 g

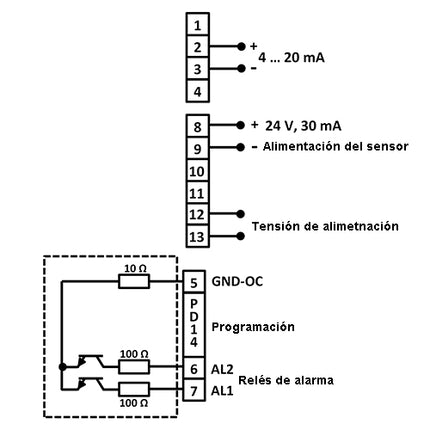

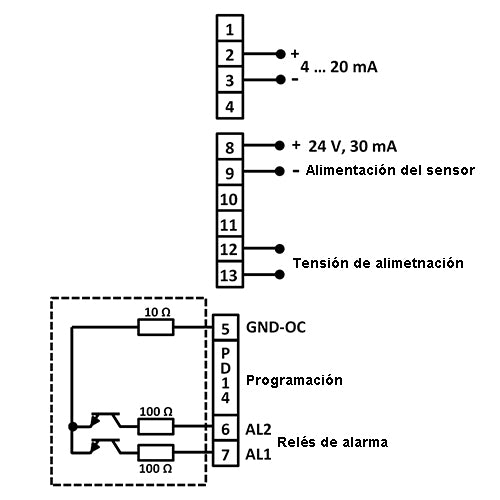

    Mounting Mounting clips with clamping screws, connection via terminal blocks
    Housing  Robust plastic
    Delivery content
    1 x PCE-N20I panel indicator
    1 x Mounting material
    1 x Sealing gasket
    1 x User manual
