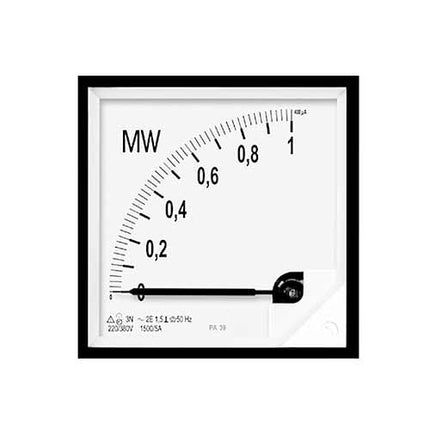

Analog Indicator PCE-PA39

Product form

SKU: PCE-PA39-AA0A100A08

Delivery 48–72h

€133,37 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoAnalog indicator
    Peso 0,25 kg
    Componentes incluidos 1 unidad

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Analog power meter for fixed installation / 96 x 96 mm / easy connection /
    Active or apparent power measurement / various mounting positions / 1 or 3 phases
    The PCE-PA39 analog power meter is used to monitor power. This analog power meter is mounted on the distribution panel. The PCE-PA39 fixed power meter is a moving coil meter. Measurements of active power and apparent power are no problem for the PCE-PA39 power meter. Both single-phase and three-phase measurements are straightforward for this analog power meter. By using appropriate current and voltage transformers, the analog power meter can even measure very high power. This analog power meter has panel installation dimensions of 92 x 92 mm. In addition to measuring power consumption, the analog power meter can also measure power supply.
    - Moving coil instrument for power measurement
    - 96 x 96 mm
    - Panel mounting
    - Long life
    - Power measurement for 1 or 3 phases

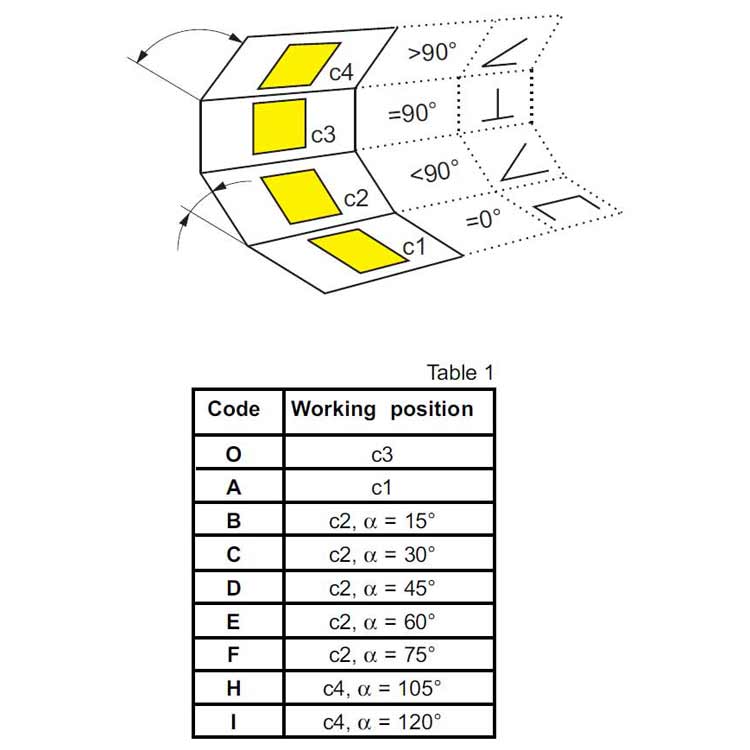

    - Individual configuration

    Technical Specifications

    Measuring range (voltage measurement) 100 V, 133 V, 230 V, 280 V, 400 V, 500 V, 690 V
    Measuring range (current measurement) 1 A (x / 1 A), 5 A (x / 5 A)
    Accuracy class 1.5
    Measuring signal frequency 45 ... 65 Hz / 400 Hz
    Maximum voltage (P-N) 600 V
    Measurement category CAT III
    Pollution degree 2
    Overload 100 % of selected measuring range

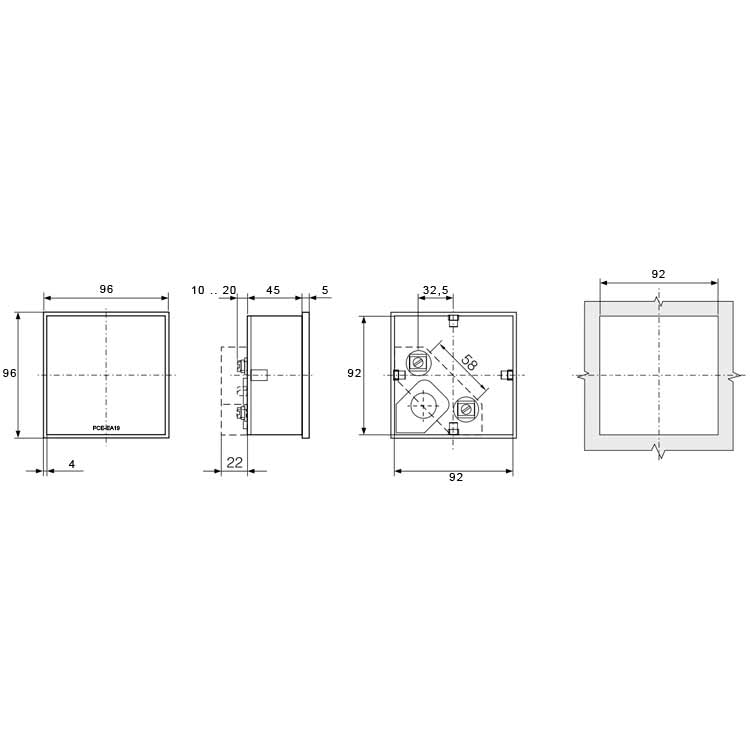

    Front panel cutout 92
    External dimensions 96 x 96 x 45
    Scale length 95 mm
    Weight 250 g
    Electrical connection Screw terminals
    Protection type IP 50
    Environmental conditions 5 ... 40 ºC / 25 ... 85 % R.H.
    Delivery content
    1 x PCE-PA39 Analog power meter
    2 x Mounting screws
    1 x User manual
