Description

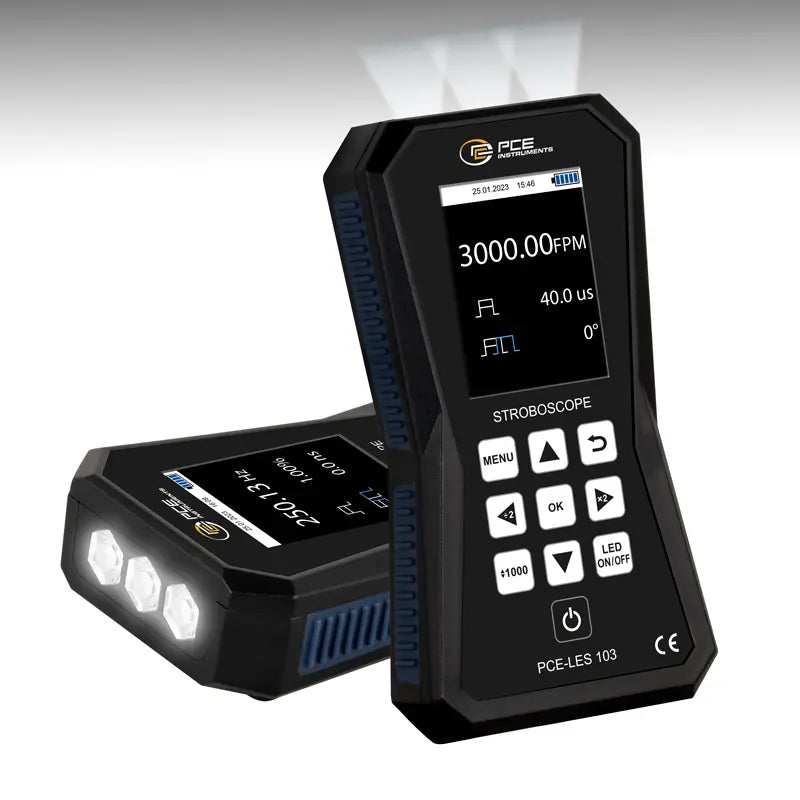

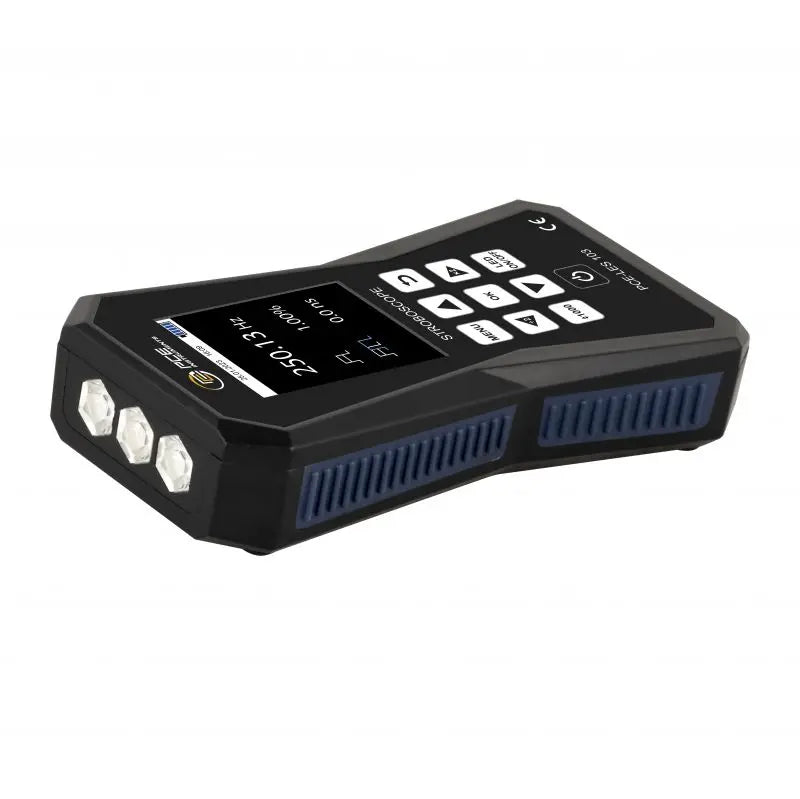

LED stroboscope with 3 high-power LEDs / Flash intensity of 6160 lux at 30cm and 1000 Hz / Adjustable pulse width in percentage, degrees or time / Phase shift / Clear display / Rechargeable battery powered

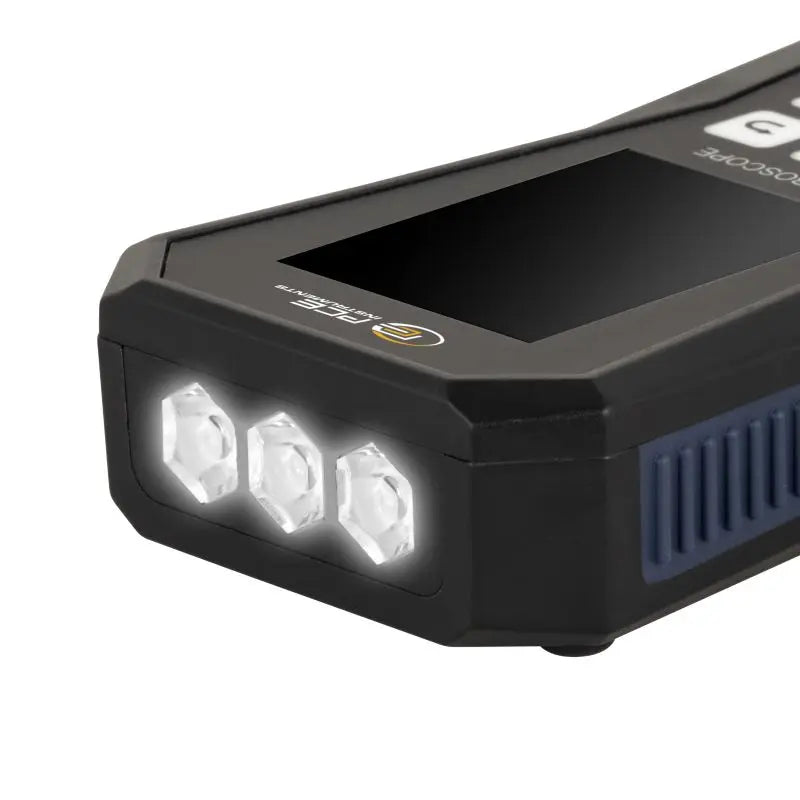

With our LED stroboscope, you can quickly and easily analyze the movement of rotating machines. The LED stroboscope is equipped with 3 high-power LEDs, which together generate a light intensity of 11730 lux at 20 cm and 1000 Hz. The LED stroboscope allows precise adjustment of the flash frequency in both FPM and Hz. In addition, it is small, handy, and portable thanks to its rechargeable battery.

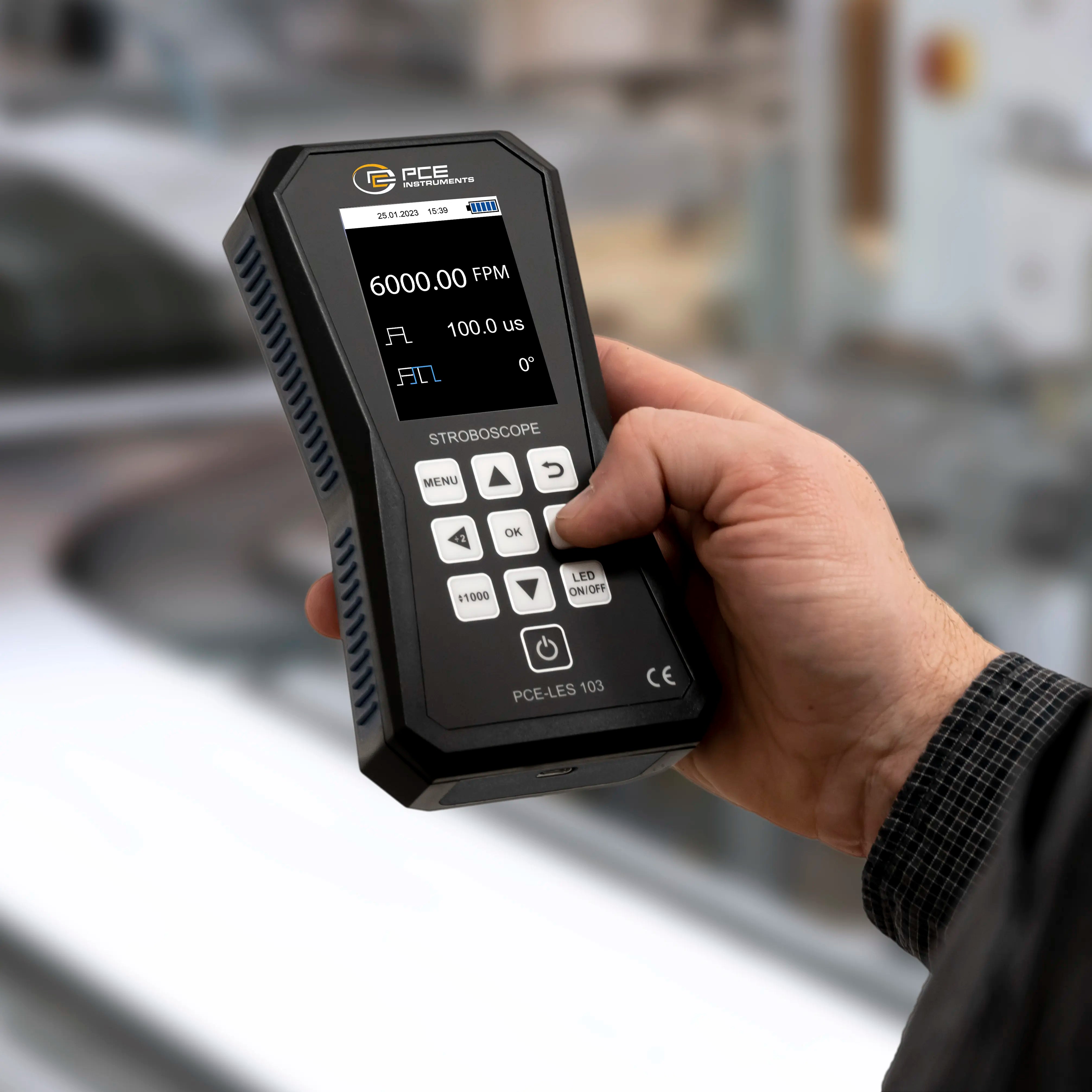

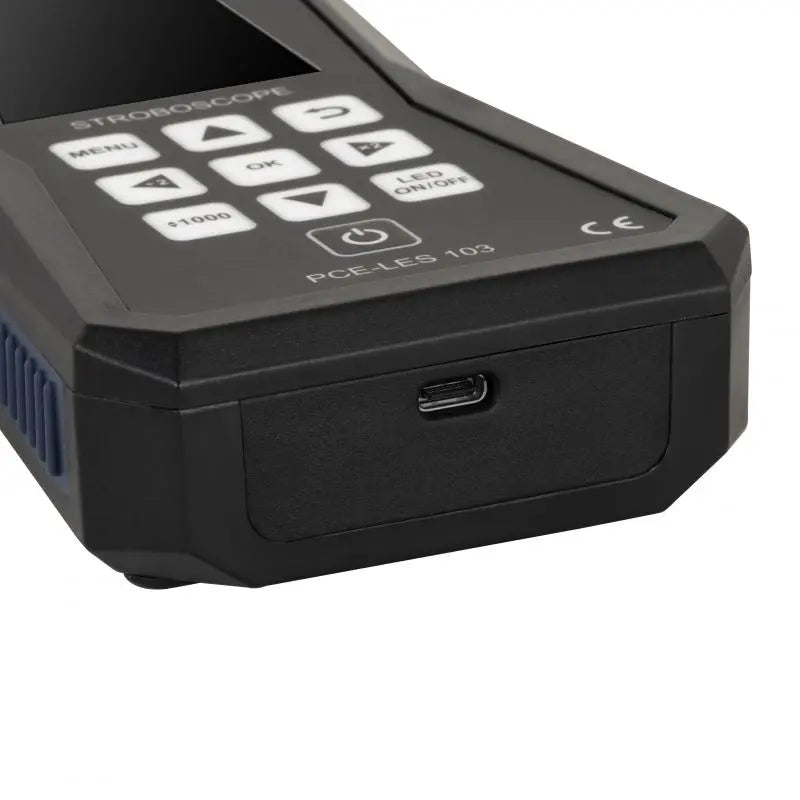

The LED stroboscope is operated intuitively using 10 keys, allowing for quick adjustments. The phase shift allows the observation point to be moved variably. With the pulse width, you can adjust the duration and, therefore, also the intensity of the flash frequency. In the settings menu, you can configure the display brightness, as well as the display shutdown after a period of inactivity, which extends battery life. The LED stroboscope is shipped with a USB-C charging cable in a carrying case.

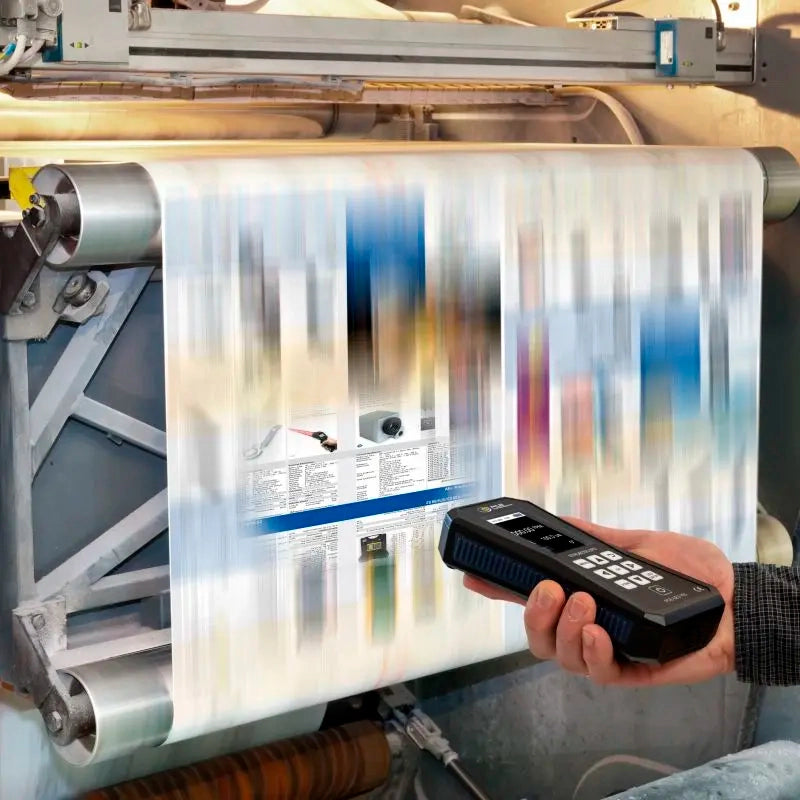

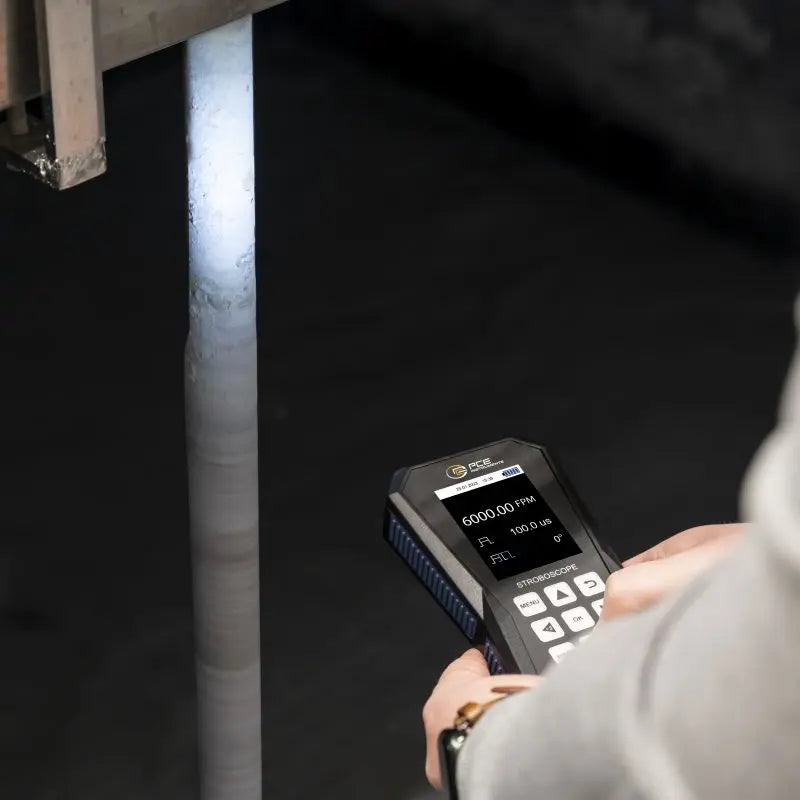

The LED stroboscope is an indispensable tool for monitoring and inspecting production systems, such as in the textile and printing industries. But it is also useful for maintenance and inspection tasks in any industrial sector. The LED stroboscope also allows for non-contact speed and vibration measurement: if the flash frequency of the LED stroboscope matches the movement frequency, the optical effect is that the object will appear motionless.
- 3 high-power LEDs
- Adjustable flash frequency in FPM and Hz
- Flash intensity of 6160 lux at 30 cm and 1000 Hz
- Digital pulse width modulation
- Phase shift: -360 ... + 360°
- Quick adjustment with x2 and ÷2 keys
- Intuitive operation and clear display
| Frequency in FPM |
| Range |
60 ... 9999.99 FPM |
| Resolution |
0.01 FPM |
| Accuracy |
0.001 % |
| |
| Frequency in FPM |
| Range |
10000 ... 300000 FPM |
| Resolution |
0.1 FPM |
| Accuracy |
0.001 % |
| |
| Frequency in Hz |
| Range |
1 ... 5000 Hz |
| Resolution |
0.01 Hz |
| Accuracy |
0.001 % |
| |
| Other specifications |
| Display |
2.8" TFT |
| Battery life |
4.5 hours |
| Additional battery life information |
At 100 Hz flash frequency, 1 % pulse duration, 70 % display brightness |
| Automatic shutdown |
2 ... 10 minutes |
| Automatic shutdown can be deactivated |
Yes |
| Flash intensity |
11730 lux @ 20cm @ 1000 Hz @ 1 % pulse duration
6160 lux @ 30cm @ 1000 Hz @ 1 % pulse duration
2650 lux @ 50cm @ 1000 Hz @ 1 % pulse duration |
| Flash color temperature |
6500 K |
| Phase shift |
-360 ... 360 ° |
| Pulse width |
0.01 … 1 % of pulse duration / Resolution: 0.01 %
0.01 … 3.60 º of 360 º / Resolution: 0.01 º |
| Menu languages |
German / Chinese / Spanish / French / Dutch / English / Italian / Polish / Russian / Turkish |
| Protection class |
IP52 |
| Power supply |
5 V DC / 2 A |
| Weight |
284 g |
| Dimensions |
165 x 90 x 35 mm |
| Operating conditions |
-20 ... +60 °C / 35 ... 85 % R.H. |
| Storage conditions |
-20 ... +60 °C / 35 ... 85 % R.H. |
| |
| Battery |
| Type |
Lithium-ion (Li-Ion) |
| Lithium information |
Lithium in the product (installed or attached) |
| Capacity |
2200 mAh |
| Voltage |
7.4 V |
| System |
Secondary: Rechargeable battery |
| Quantity |
1 |
1 x PCE-LES 103 LED Stroboscope
1 x USB-C Cable
1 x Carrying Case
1 x Quick Guide
