Vacuum pump PCE-RVP 180

Product form

SKU: PCE-RVP 180
Barcode: 4250348733221

Delivery 48–72h

€363,94 Incl. VAT

    • Secure & regulated transaction

      stripe

    Ficha técnica

    Especificaciones del producto
    Tipo de productoHeat pump meter
    Peso 13,54 kg
    Componentes incluidos 1 unidad

    Documentación técnica y cumplimiento

    Compra para empresa (B2B)

    • Acceso a catálogo profesional con precios visibles para empresa, taller o profesional.
    • Compra directa sin necesidad de solicitar presupuesto.
    • Referencias estándar para reposición continua sin cambios.
    • Para pedidos de mayor volumen o consumo recurrente, aplicamos condiciones adicionales.

    Acceder a condiciones para empresa

    Envío y devoluciones

    • Entrega 48–72 h laborables en España (Península/Baleares) y Portugal.
    • Coste y plazo exactos se calculan en el checkout según destino y peso.
    • Devoluciones en 30 días (consulta condiciones en la política de devoluciones).
    • Incidencias reemplazo o reembolso en caso de producto dañado o defectuoso.
    • Factura disponible para empresas, autónomos y particulares.

    Plazos indicados para artículos en stock y días laborables.

    ¿Necesitas cambiar una referencia?

    Si la referencia no es la adecuada, podemos sustituirla en el mismo envío (entrega + recogida en una sola visita), con un ajuste logístico adicional frente a gestionar entrega y devolución por separado.

    Atención al cliente: contacto@vichomeshop.com · 666 33 25 70

    Description

    Vacuum pump / Suitable for refrigerants of classes A1, A2L and A2 / Automatic cleaning function / Oil-free 2-piston compressor / LCD display with pressure indication / Portable
    The vacuum pump is equipped with a powerful motor that delivers high torque. The motor power is 0.75 HP (550 W), ensuring reliable and efficient performance. With a high flow rate of 226 l/min, our vacuum pump for heat pumps is capable of efficiently extracting large volumes of refrigerants. It is equipped with 1/4" and 3/8" connections, allowing for versatility and adaptability to different refrigerant hoses and applications.

    Our vacuum pump is equipped with a state-of-the-art filter element that effectively helps reduce oil mist. This filter element not only improves the pump's lifespan but also provides a cleaner working environment and helps preserve the environment. The ergonomically designed rubber handle allows for safe transport and good handling. A vacuum pump like this is used to evacuate the circuits of air conditioners, refrigeration systems, or heat pumps before filling them with refrigerant. This is important to remove moisture and air from the system, which improves the efficiency of the air conditioner or heat pump.
    - For refrigerants (R12, R22, R134a, etc.)
    - Efficient and high-torque motor
    - Motor power: 0.75 hp (550 W)
    - Flow rate: 226 l/min
    - Connections: 1/4" and 3/8"
    - Filter element to reduce oil mist
    - Comfortable and robust rubber handle

    Connection

    1/4" SAE, 3/8" SAE

    Motor power

    0.75 hp

    Flow rate

    226 l/min

    Oil capacity

    660 ml

    Final vacuum

    150 microns

    Protection

    IP20

    Power supply

    230 V AC (Schuko plug)

    Operating conditions

    +5 ... +40 °C / 20 ... 80 % RH

    Storage conditions

    +5 ... +40 °C / 20 ... 80 % RH

    Dimensions

    390 x 140 x 260 cm

    Net weight (equipment only)

    13.54 kg

    Weight with included accessories

    13.6 kg

    Weight with packaging

    15 kg

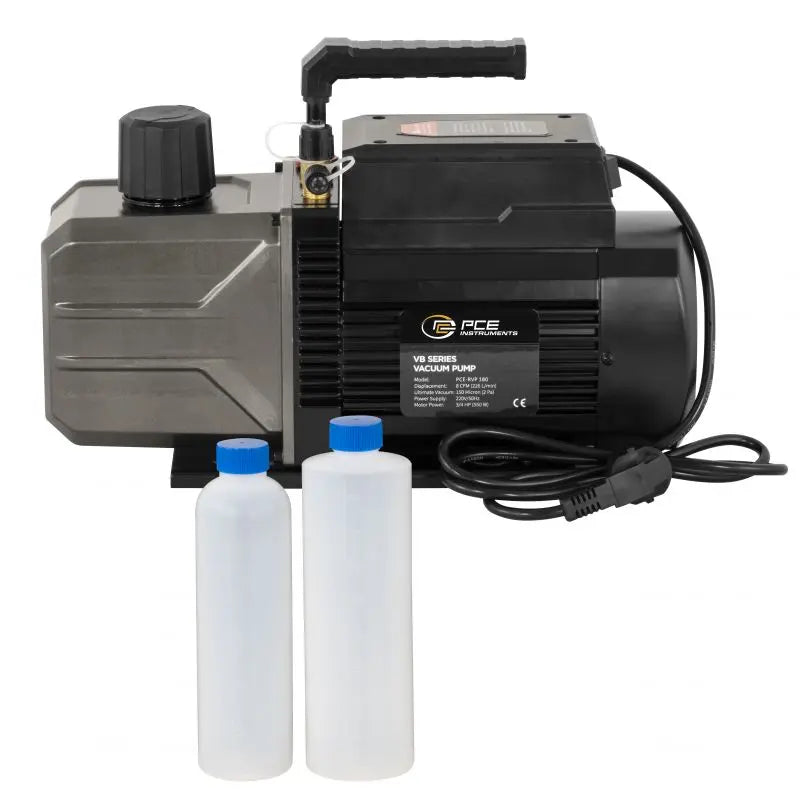

    1 x Vacuum pump PCE-RVP 180
    1 x 300 ml bottle
    1 x 450 ml bottle
    1 x Instruction manual
