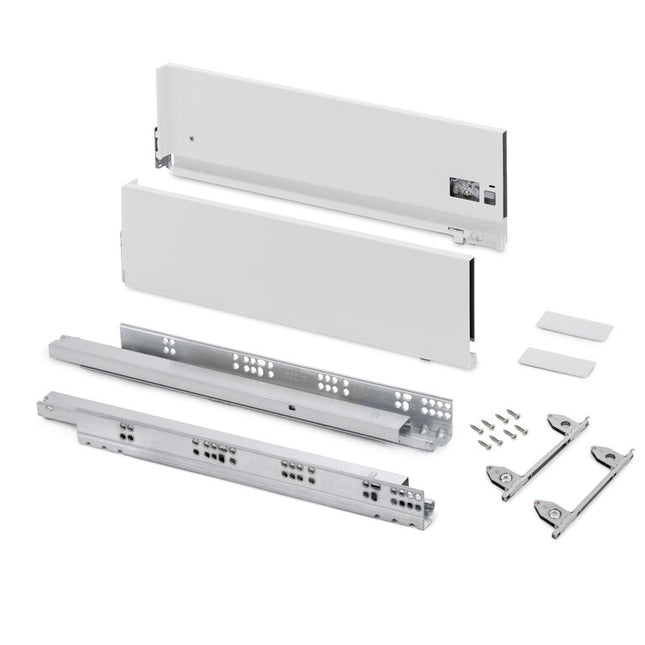

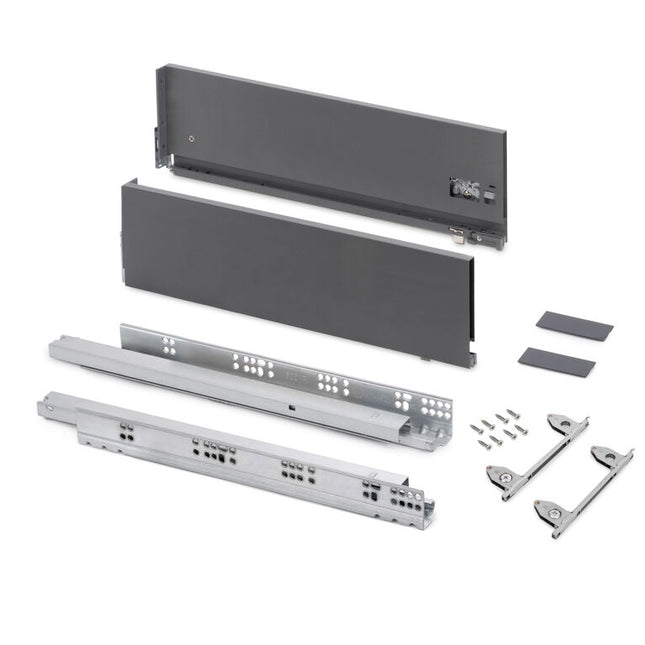

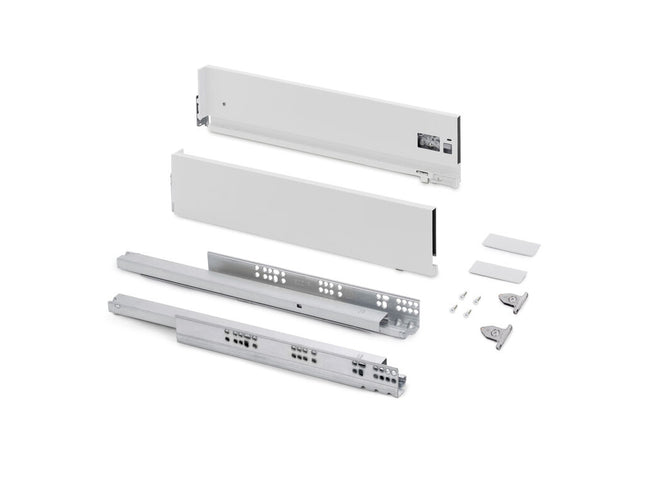

Vertex kitchen and bathroom drawer kit with all the necessary elements for assembly. It is the optimal solution for your kitchen, bathroom or wardrobe furniture with an elegant design in anthracite grey and white . Each kit consists of all the necessary elements for the assembly of a 178 mm high drawer in modules with a side thickness of 16 mm . Includes: two side ribs, a set of soft-closing guides, a set of decorative covers and fixings for the front of the drawer. The metal side ribs are made of steel with an anthracite grey and white painted finish, allowing the drawer front to be adjusted ±2mm vertically and ±1mm horizontally . The guides are fully extendable with soft closing and allow a maximum load of 60 kg for the drawer. You will only need the boards cut to the correct dimensions for the bottom, back and border of the drawer. Kit of hardware required for the assembly of a drawer with a height of 178 mm and a depth of 500 mm, except for the border, back and bottom. Sized for 16mm board thickness for drawer bottom and back. Synchronized full-extension guides, with cushioned closing and load capacity of 60 kg. It has a 3D front adjustment: vertical using an eccentric of ±2 mm, horizontal ±1 mm, inclination -1.5/+4 mm. Made of anthracite grey/white painted steel

Read more less

Product Features Kit of hardware required for the assembly of an external drawer with a height of 105 mm and depth of 270/300/350/400/450/500 mm, except for the border, back and bottom. Includes full extension guides, a set of ribs and a set of front hooks for the outer drawer. The guides are fully extendable with soft closing and a maximum load of 30 kg. Made of anthracite grey or white painted steel. The Concept kitchen and bathroom drawer It is available in kit format with all the necessary hardware for assembly. It also stands out for its great load capacity which can support up to 30 kg per drawer. Includes full extraction guides with soft closing , set of hooks and ribs Available in white or anthracite grey painted finish. You will only need the boards cut to the correct dimensions for the bottom, back and drawer border.

Read more less

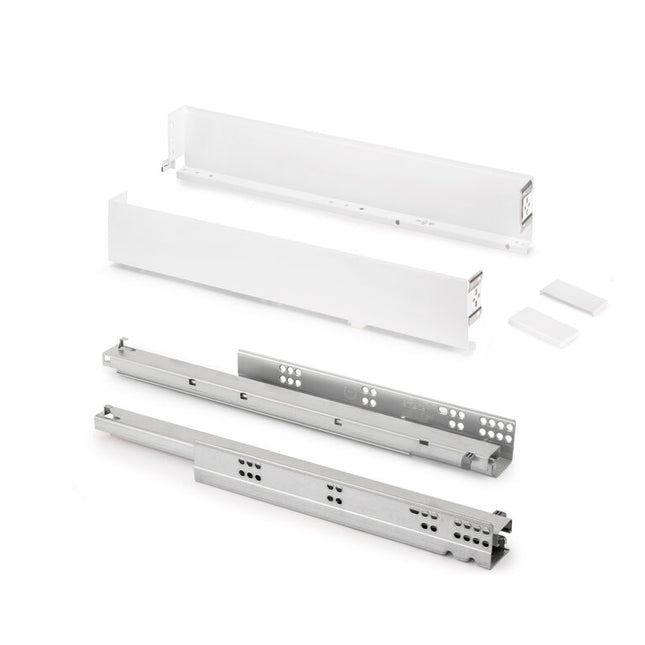

The Simplex drawer with metal sides is ideal for kitchen, bathroom, and home furnishings, without the need for special machining. It allows the drawer front to be adjusted by ±2 mm vertically using an eccentric and ±1.5 mm horizontally, in addition to height adjustment thanks to the Silver L full-extension guides with soft-closing. It offers a load capacity of 25 kg, guaranteeing resistance and smooth sliding. Made of steel with a white painted finish. Height 88: It has a height of 88 mm with an elegant design, for drawers with a depth of 440 mm, offering great interior space and a modern finish. Height 122: It has a height of 122 mm with an elegant design, for drawers with a depth of 440 mm, offering great interior space and a modern finish. Height 159: It has a height of 159 mm with an elegant design, for drawers with a depth of 440 mm, offering great interior space and a modern finish. The Simplex drawer with metal sides is the simplest and most versatile solution for having a metal rib drawer in kitchen, bathroom or home furniture , without the need for special machining. With an elegant design and a height of 88 mm , it offers a spacious interior and a modern finish. Its system allows the drawer front to be adjusted by ±2 mm vertically using an eccentric and ±1.5 mm horizontally . It also includes the Silver L full-extension guide with soft -closing and a load capacity of 25 kg , ensuring smooth and durable sliding. The kit includes two side panels , a set of front covers , a set of guides , and the screws to secure the front panel . It is made of steel with an anthracite gray or white painted finish. Frequently Asked Questions How do you install a Simplex soft-close kitchen, home, or bathroom drawer? The following video shows how to easily assemble this drawer:

Read more less

Product Features Kit of hardware required for the assembly of an external drawer with a height of 105 mm and depth of 270/300/350/400/450/500 mm, except for the border, back and bottom. Includes full extension guides, a set of ribs and a set of front hooks for the outer drawer. The guides are fully extendable with soft closing and a maximum load of 30 kg. Made of anthracite grey or white painted steel. The Concept kitchen and bathroom drawer It is available in kit format with all the necessary hardware for assembly. It also stands out for its great load capacity which can support up to 30 kg per drawer. Includes full extraction guides with soft closing , set of hooks and ribs Available in white or anthracite grey painted finish. You will only need the boards cut to the correct dimensions for the bottom, back and drawer border.

Read more less

Product Features Kit of hardware required for the assembly of an external drawer with a height of 105 mm and depth of 270/300/350/400/450/500 mm, except for the border, back and bottom. Includes full extension guides, a set of ribs and a set of front hooks for the outer drawer. The guides are fully extendable with soft closing and a maximum load of 30 kg. Made of anthracite grey or white painted steel. The Concept kitchen and bathroom drawer It is available in kit format with all the necessary hardware for assembly. It also stands out for its great load capacity which can support up to 30 kg per drawer. Includes full extraction guides with soft closing , set of hooks and ribs Available in white or anthracite grey painted finish. You will only need the boards cut to the correct dimensions for the bottom, back and drawer border.

Read more less

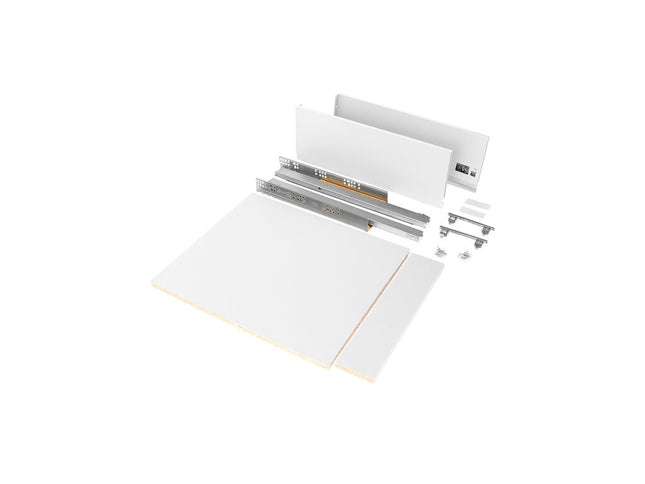

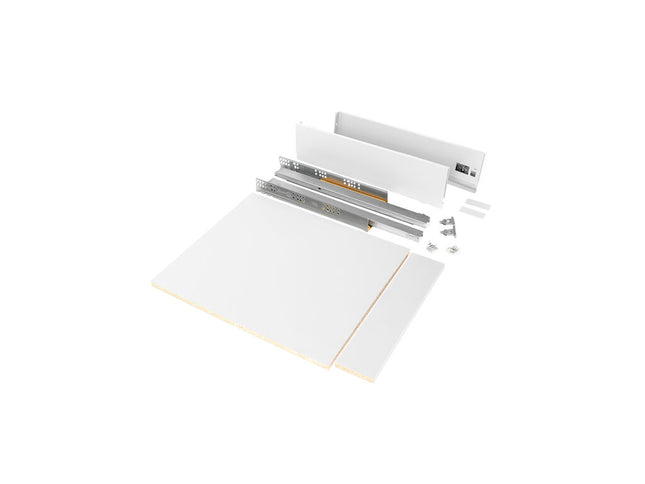

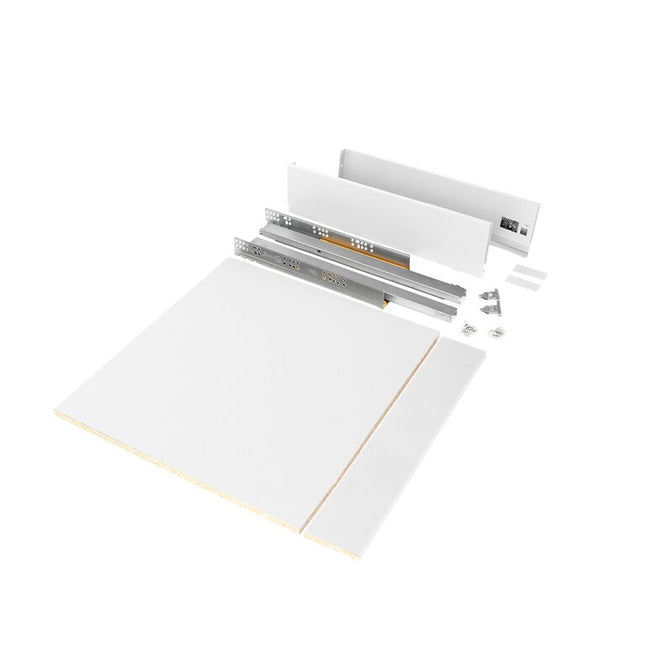

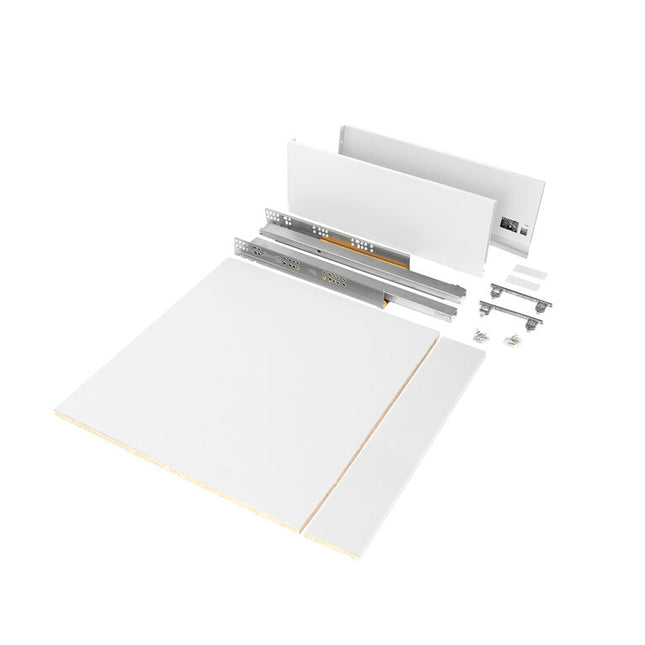

Drawer kit for kitchen and bathroom with all the necessary elements for its assembly. It is the optimal solution for the furniture in your kitchen, bathroom or closet with a Elegant design in anthracite grey and white . Each kit consists of all the elements necessary for the assembly of an external drawer of height 93 mm and depth 500 mm with various module widths . Includes: two side panels, a set of soft-closing guides, a set of decorative covers, back and bottom panels and fixings for the drawer front. All you need is the front panel with the required drawer dimensions. The metal side ribs are made of steel with Anthracite grey and white painted finish, allow for adjustment of the drawer front ±2mm vertically and ±1mm horizontally . The guides are Full extension with soft closing and allow a maximum load of 40 kg for the drawer. The The included back and bottom panels are made of particle board in anthracite grey and white and with a rough surface to give greater surface resistance. The boards are made of thickness 16 mm and are cut to size standard modules (450 mm, 600 mm and 900 mm) . However, can be cut to adapt to the module width needed. Kit of hardware required for the assembly of a drawer with a height of 93 mm and a depth of 500 mm, except for the drawer front, in modules with a width of 450 mm and a side thickness of 16 mm. Synchronized full-extension guides, with cushioned closing and load capacity of 40 kg. Possibility of cutting the boards to adjust the width of the drawer to the desired measurement. Drawer front position adjustment: ±2 mm vertically and ±1 mm horizontally. Made of white painted steel and chipboard with melamine of the same colour. FAQs - Frequently Asked Questions: Can Vertex drawer kits be adapted to other module widths? Yes, for example, if we want to assemble a drawer for a 500 mm wide module, we must start from the existing code for a 600 mm module and cut the bottom and back boards to width according to the formula: Internal width of module – 19 mm. What thickness of the module side are the boards included in the Vertex kit designed for? They are calculated for a side thickness of 16 mm. How thick are the boards included in the Vertex kit? Both the bottom and the back have a thickness of 16 mm.

Read more less

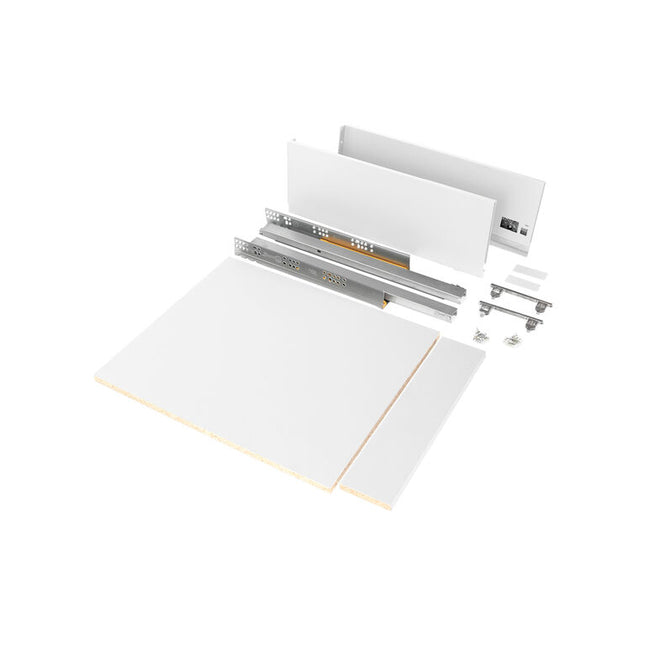

Drawer kit for kitchen and bathroom with all the necessary elements for its assembly. It is the optimal solution for the furniture in your kitchen, bathroom or closet with a Elegant design in anthracite grey and white . Each kit consists of all the elements necessary for the assembly of an external drawer of height 178 mm and depth 500 mm with various module widths . Includes: two side panels, a set of soft-closing guides, a set of decorative covers, back and bottom panels and fixings for the drawer front. All you need is the front panel with the required drawer dimensions. The metal side ribs are made of steel with Anthracite grey and white painted finish, allow for adjustment of the drawer front ±2mm vertically and ±1mm horizontally . The guides are Full extension with soft closing and allow a maximum load of 40 kg for the drawer. The The included back and bottom panels are made of particle board in anthracite grey and white and with a rough surface to give greater surface resistance. The boards are made of thickness 16 mm and are cut to size standard modules (450 mm, 600 mm and 900 mm) . However, can be cut to adapt to the module width needed. Kit of hardware required for the assembly of a drawer with a height of 178 mm and a depth of 500 mm, except for the drawer front, in modules with a width of 900 mm and a side thickness of 16 mm. Synchronized full-extension guides, with cushioned closing and load capacity of 40 kg. Dimensions of the boards: bottom 399 x 490 mm and back 376 x 148 mm.(450) Dimensions of the boards: bottom 849 x 490 mm and back 826 x 148 mm.(900) Dimensions of the boards: bottom 549 x 490 mm and back 526 x 148 mm.(600) Possibility of cutting the boards to adjust the width of the drawer to the desired measurement. Drawer front position adjustment: ±2 mm vertically and ±1 mm horizontally. Made of anthracite grey painted steel and chipboard with melamine of the same colour.

Read more less

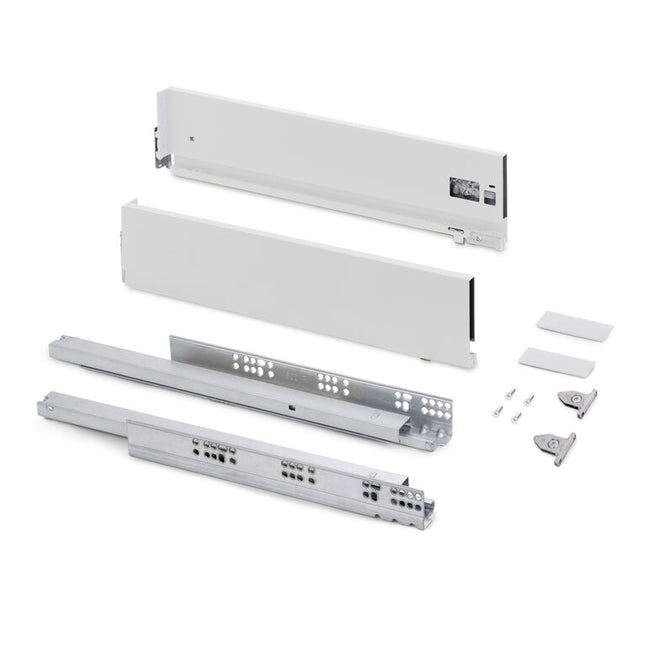

Vertex Kitchen and Bathroom Drawer Kit with all the necessary elements for its assembly. It is the optimal solution for the furniture in your kitchen, bathroom or closet with a Elegant design in anthracite grey and white . Each kit consists of all the elements necessary for the assembly of a drawer height 131 mm, sized for a board thickness of 16 mm for the bottom and back of the drawer. Includes: two side ribs, a set of soft-closing guides, a set of decorative caps and fixings for the drawer front. The metal side ribs are made of steel with Painted finish in grey, anthracite grey and white, allowing for adjustment of the drawer front ±2mm vertically and ±1mm horizontally . The guides are Full extension with soft closing and allow a maximum load of 40 kg for the drawer. You will only need the boards cut to the correct dimensions for the bottom, back and border of the drawer. Kit of hardware required for the assembly of a drawer with a height of 131 mm and depth from 270 to 550 mm, except for the border, back and bottom. Sized for 16mm board thickness for drawer bottom and back. Synchronized full-extension guides, with cushioned closing and load capacity of 40 kg. It has a 3D front adjustment: vertical using an eccentric of ±2 mm, horizontal ±1 mm, inclination -1.5/+4 mm. Made of anthracite grey/white/aluminium painted steel FAQs - Frequently Asked Questions: How can I easily assemble a Vertex-type drawer for the kitchen, living room, closet and bathroom? The assembly manual below shows how to easily assemble the Vertex drawer. How to regulate and adjust the Vertex drawer so that the front is level? The following video shows how to easily adjust the Vertex drawer. How to disassemble a Vertex drawer for kitchen, bathroom and home furniture? The following video shows how to easily disassemble the Vertex drawer. Are the dimensions of the Vertex drawer boards the same as the Concept? Yes, the dimensions of the boards are the same in both drawers, except for the height of the back panel for the 93 height drawer. Are the Vertex's railings the same as the Concept's? Yes, the railings are the same for both drawers. What is the RAL color for the Vertex drawer rib finishes? The RAL colour of the Anthracite Grey finish on the Vertex Drawer Ribs is approximately 7043. The RAL colour of the Light Grey finish on the Vertex Drawer Ribs is approximately 7045. The RAL colour of the White finish on the Vertex Drawer Ribs is approximately 9003.
